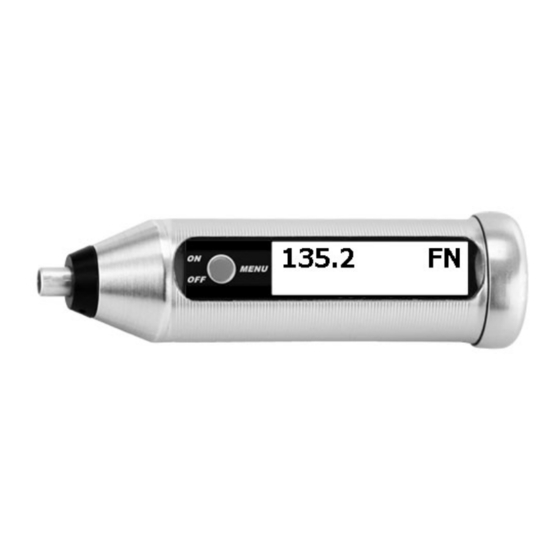

- Page 1 OPERATION MANUAL FERRITE CONTENT METER FERRITE-CHECK 110 Firmware version 1.0 and up 2022-11...
-
Page 2: Table Of Contents
Average Measurement ....................12 Normal Measurement .....................12 Setup ..................13 Language ........................13 Unit ..........................13 Battery ..........................14 Turnoff Time .........................14 Instrument Reset ......................15 Replacement of battery ........15 Technical Data ............16 Function plan in the instruction center List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 3: Ferrite-Check 110
NTRODUCTION With FERRITE-CHECK 110 you can easily and quickly measure the ferrite content in steels according to ISO 8249. ISO 8249 particularly focuses on austenitic steel and duplex steel (ferritic / austenit- ic) to be evaluated for welding operations: if the ferrite content is too low, the weld metal becomes susceptible to cracking;... -
Page 4: Quick Start Guide
The menu functions can only be called up if the measuring probe is not placed on an object. At the end of each submenu there is a display Back that allows you to exit the submenu. In the delivery state, English is preselected as the language. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 5: Measurement Display
Average measurement), the current single value and the average value of the measurement series are displayed, since the last time the probe was placed on the object. You can also use the average measurement with unit Fe%. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 6: Menu Functions
The automatic turnoff time is 2 minutes in the delivery state and can be changed un- der the menu item Setup. b. C ALIBRATE You can recalibrate the instrument at any time on the supplied calibration standards with a two-point calibration. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 7: Base Calibration
In the off-hook state, select in the menu 0 - Base Calibration, then place the instrument with the measuring probe on the FN140 calibration standard. Now wait until the FN140 value is displayed and confirmed by a signal tone, and then lift the instrument again. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 8: Fn Calibration
FN value is displayed and confirmed by a signal tone. If high ferrite contents are measured regularly, it makes sense to use the calibration standard with the higher FN value. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... - Page 9 Function plan / menu structure (Arrow down: red key short, Arrow right: red key long) List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc...
- Page 10 Space for your notes List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc...
-
Page 11: Fn Value Adjust
Briefly pressing the key, changes the FN value in steps of 0.1. After releasing the key for at least 1 second, the arrow changes from < to > and back. This switches the direction of the change (increase / decrease FN value). List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... - Page 12 Because the internal baseline is completely recalculated when the calibration is accepted, this process can take a few seconds. This is indicated by a W (for wait) in the upper right corner. The device does not accept any input during this time. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc...
-
Page 13: Mode
After lifting the probe and placing it on the workpiece again, the average value is reset. ORMAL EASUREMENT In contrast to the average measurement, a single value is displayed for the normal measurement is displayed and confirmed by a signal tone. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 14: Setup
Selection of the menu language (German or English). Change the unit of measurement between FN and Fe%. The conversion from FN to Fe% is a simple formula with a constant factor. FN 140 = 100% Fe, the factor is always 1.4. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 15: Battery
Selection of the automatic turnoff time of the device (2 minutes / 15 minutes / off = the device is always switched on). Off should only be selected in special cases, as this can greatly increase the power consumption. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 16: Instrument Reset
As soon as the warning message Change batt. appears when the device is switched on, the battery must be replaced. From a battery voltage of < 1.0 V, the device switches off automatically. Please use only leak-proof batteries. List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... -
Page 17: Technical Data
Display illuminated high-contrast graphic OLED display Multilingual menu navigation German, English Power supply 1x 1.5 V AA Mignon Operating time approx. 30 hours Dimensions Ø 28 x 94 mm Weight 72 g (with battery) List-Magnetik GmbH EN FERRITE-CHECK 110 2022-11.doc... - Page 18 We supply: • Coating Thickness Meters • Magnetic Field Meters • Magnetic Permeability Meters • Magnetizing and Demagnetizing Equipment We advise and provide tailor-made solutions for your specialized requirements in magnetizing, demagnetizing and measuring Fast calibration and repair service...
