- Page 1 Ultrasonic Thickness Gauge DC-3000C series Instruction Manual V.2.05...
-
Page 2: Table Of Contents
CONTENTS 1. General Description ..............- 1 - 2. Technical Specifications ..............- 1 - 3. Standard Delivery ................ - 2 - 4. Overview the Display Unit ............- 2 - 5. Keypad Functions ................. - 3 - 6. Display Screen................- 4 - 7. -
Page 3: General Description
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 1. General Description The Ultrasonic Thickness Gauge DC-3000C/DC-3020C is our new and improved readout unit with automatic probe recognition, automatic zeroing and a larger, more easily read LCD. It is a Multi-Mode thickness gauge that has the ability to measure through painted or coated surfaces and eliminate the thickness of the paint using a dual element style probe in echo-echo mode. -
Page 4: Standard Delivery

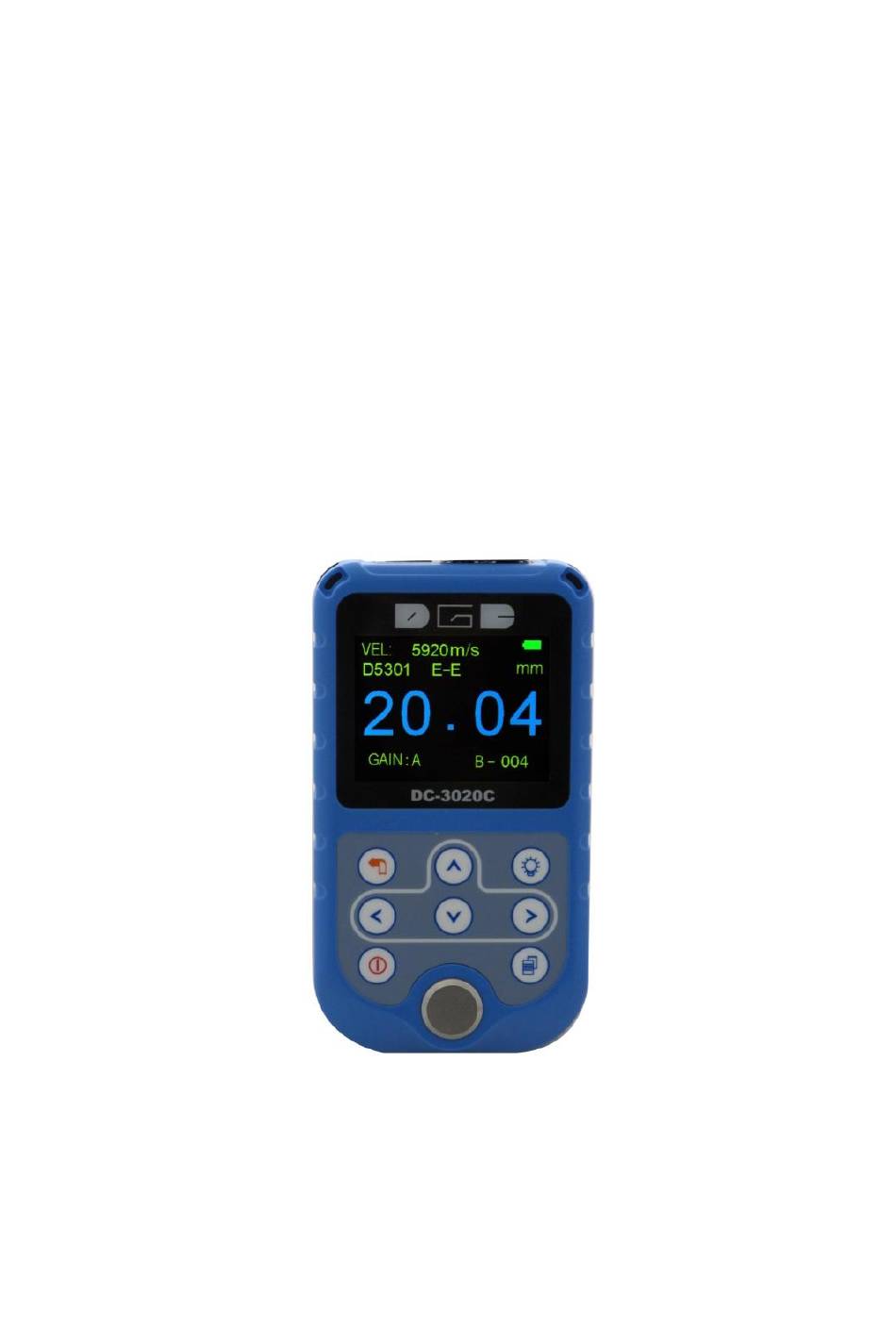

DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 3. Standard Delivery -- Main Unit -- Standard 5MHZ probe D5301 -- 75ML Couplant -- Build-in calibration block -- Cable (DC-3020C) --Carrying case --Operating manual --Certificate 4. Overview the Display Unit 1. LCD Screen 2. Key Pad 3. -
Page 5: Keypad Functions
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 5. Keypad Functions Function - On/ Off Key Press this key to switch on or off . - Esc. Menu Press this Key to Escape the Menu. - Menu Key Press This Key to enter the Menu. -
Page 6: Display Screen
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE - Left arrow key Achieve switch among the menu options in the menu operation. (under the measurement) -Right arrow key Achieve switch among the menu options in the menu operation(under the measurement) -Shortcut key Resolution setting between mm and inch 6. -
Page 7: Preparation Before Measurement
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 7. Preparation before measurement 【7.1】Preparation of the instrument For the newly purchased instrument, please check the instrument and its accessory according to the “3 standard delivery”. If you find it is not the same as the table listed, please contact the manufacture in time. If the instrument is damaged, please do not use it and contact the manufacture as soon as possible. -
Page 8: Treatment Of The Measured Surface
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Used in the measurement of thin wall thickness and small D7004 curvature surface. Used in the measurement of coarse particles such as cast D2012 iron. 【7.3】Treatment of the measured surface When the surface to be measured is too rough or rusty heavily, please perform the treatment according to the following methods: 1．Clean the measured surface by grinding, polishing or filing, etc. -
Page 9: Contrast
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Notice: Please make sure the probe is not coupled to the test piece when the gauge is first turned on and that there is no coolant on the end of the probe. The probe should also be at the room temperature, clean without any noticeable wear. - Page 10 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Display the current value, satisfied with the normal measuring needs. Minimum Measurement: Among one measurement, display the point. It is suitable for testing the curvature surface or needs to get the minimum value which is widely used in the thickness measurement of pipeline.
-
Page 11: Setting
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE wall echoes. Therefore, a good usage of the E-E option is for measuring through coatings (Max. 2mm) to measure only the true metal thickness. 【8.5】Setting 8.5.1 Velocity rate Sound velocity played an important role in measurement. Different material is of different sound velocity. - Page 12 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Press to move the arrow, press to change the new velocity rate, Press to store this new Velocity. Press to select the location where you want to store, Press to confirm. 8.5.1.3 Velocity measurement Because the workpiece is made from various materials and even the same material with different content and processing technology, the sound velocity will be changed and this change will cause the measuring error.
- Page 13 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Press to confirm. 8.5.1.4 Velocity storage This function allows user to store 4 new velocities Rate. 8.5.2 Resolution Users can select the displayed resolution. When selecting the high accuracy, the workpiece surface to be measured should be smooth, for the purpose of getting a accurate value.
-
Page 14: Memory
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 3. Calculation error caused by the sound velocity set in the instrument is different from that of the actual material. In order to eliminate the possible error, please use following calibration method: Measure the test piece with known thickness. Get a measurement value, Press into menu-“SETTING”-“PROBE CALIBRATION”,... - Page 15 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE maximum 200 test results in each alphabet. Users could set an Alphabet freely to store the test result. Press into the menu- “Memory”-“Memory unit”, Press to select Alphabet A-Z which you want Press to confirm.
-
Page 16: Function
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 8.6.4 Date Transfer 1) Turn on the main unit and press into the menu-“Memory”- “Data transfer” (Under the measurement), press to confirm. 2) Then connect PC with a cable in standard delivery. Meanwhile, LCD of main unit shows “Please keep the gauge and the PC connected”... - Page 17 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 8.7.2 Gain setting Press into the “Gain adjustment”, the screen will display: 1. High 2. Medium 3. Low 4. Automatic Press to select desired item Press to confirm. In the user's measuring environment, both different materials and the same material with different status will have different effects on the accurate and stable measuring.
-
Page 18: Measuring Technology
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE 8.7.3 Language The gauge provides English, Spanish, Portuguese, Japanese and Czech language for selection. 8.7.4 Contrast User can adjust contrast of display. Press to make fine adjustment Press to make rough adjustment 8.7.5 Default During the usage, when users can not ensure why the problems comes out... -
Page 19: Pipeline Measurement Method
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE Continuous measurement methods: apply the single point measurement method, and take measurements continuously along the designated route, the intervals should be less than 5mm, and take the minimum value as the workpiece's thickness. 【9.2】 Pipeline measurement method During the measurement, make the probe's crosstalk interlayer plate be perpendicular or parallel to the axial line of the pipeline. - Page 20 DC-3000C SERIES ULTRASONIC THICKNESS GAUGE ②If there are large quantity coupling agents attached on the measured surface, when taking away the probe, it will cause error. so when the measurement is completed, please move the probe away from the measured surface quickly.
-
Page 21: Appendix 1: Sound Velocity Measurement Chart
DC-3000C SERIES ULTRASONIC THICKNESS GAUGE APPENDIX: SOUND VELOCITY MEASUREMENT CHART Sound Velocity Material Inch/µ S 0.013 Aluminum 6300 0.250 Alumina Oxide 9900 0.390 Beryllium 12900 0.510 oron Carbide 11000 0.430 rass 4300 0.170 Cadmium 2800 0.110 Copper 4700 0.180 Glass(crown) 5300 0.210...
