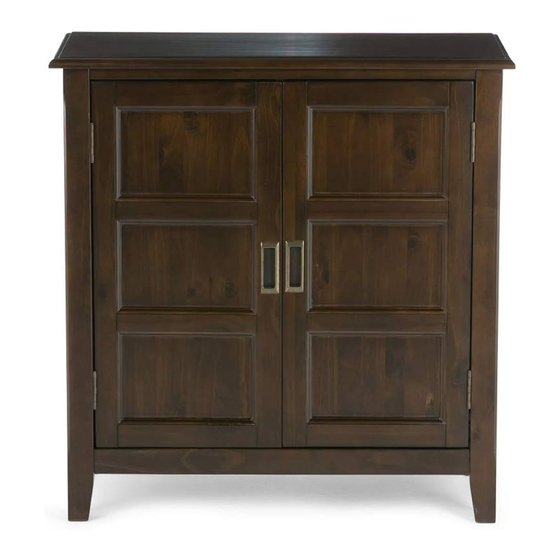

- Page 1 Burlington / Portland / Berkshire Low Storage Cabinet Model # AXCRBUR14-MAH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCRBUR14-MAH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF DIVIDER LEFT DOOR QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL RIGHT DOOR CABINET SHELF QTY 1 QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCRBUR14-MAH Hardware Description ALLEN KEY SCREW SHELF SUPPORT M6 X 30mm ALLEN KEY QTY 12 QTY 18 QTY 1 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M3 X 15mm M4 X 15mm M3 X 12mm QTY 12 QTY 8 QTY 20...
- Page 9 Components - Key Diagram Model # AXCRBUR14-MAH...
- Page 10 Assembly Model # AXCRBUR14-MAH Step 1 1. Attach Sides AL , AR to Bottom Shelf C using 6 Allen Key Screws 1 (3 screws on each Side). 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 2 1. Attach Divider D to Bottom Shelf C using 3 Allen Key Screws 1 . 2.
- Page 11 Assembly Model # AXCRBUR14-MAH Step 3 1. Attach Top B to Sides AL , AR and Divider D using 9 Allen Key Screws 1 (3 Screws on each Side and Divider) . 2. Use Allen Key 2 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCRBUR14-MAH Step 4 Triangle ruler NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. 90° 90° 90° Note: Step 5 Warning Label 1. Attach Back Panels GL , GR to back frame of cabinet using Phillips Screws Round Head 6 into guide holes.
- Page 13 Assembly Model # AXCRBUR14-MAH First Step Step 6 Last Step ( after adjust the door )
- Page 14 Assembly Model # AXCRBUR14-MAH shelf support Step 7 anti - tipping shelf level 1 shelf level 2 shelf level 3...
- Page 15 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 8 included in the hardware pack.
- Page 16 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
