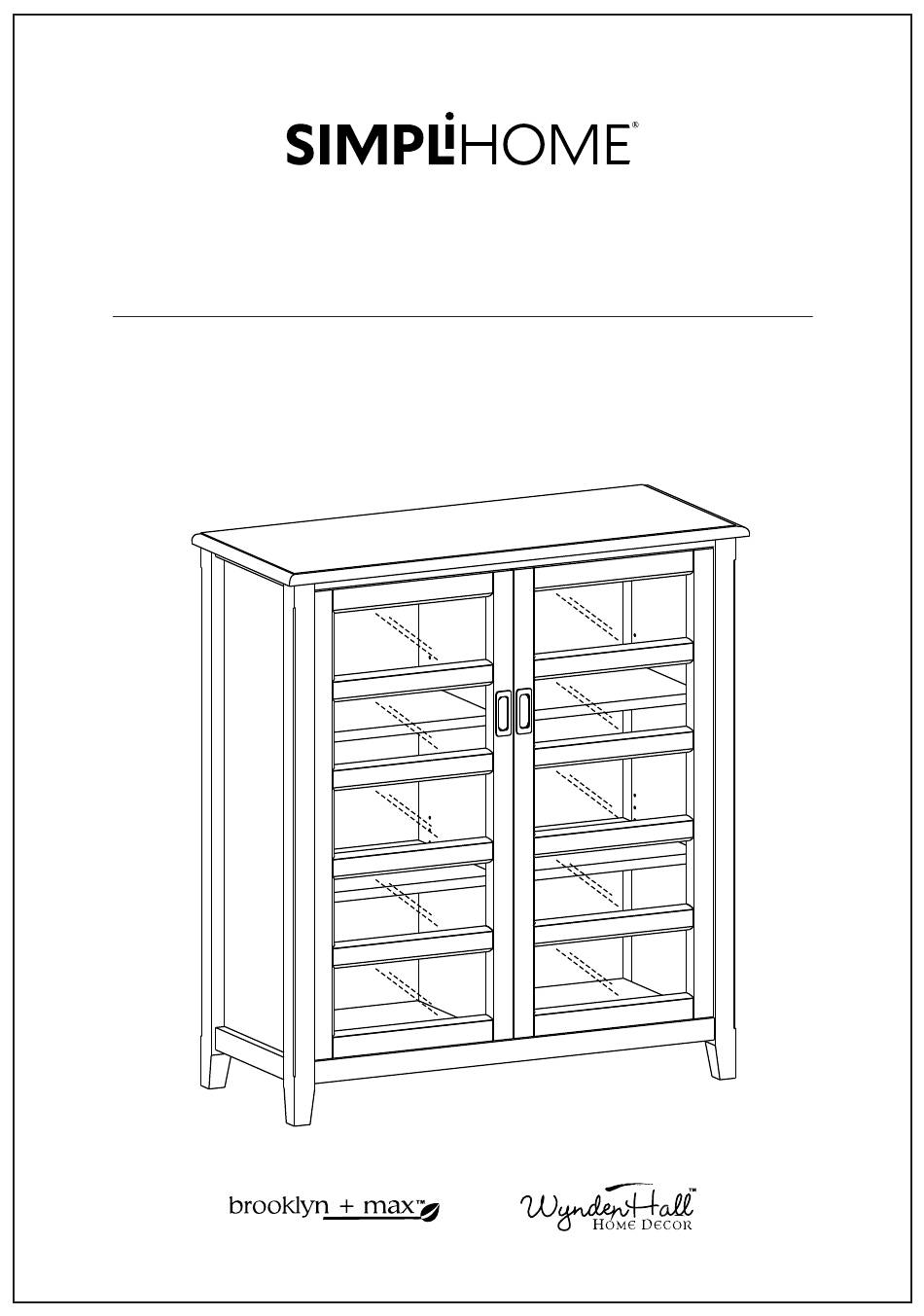

- Page 1 Burlington / Portland / Berkshire Medium Storage Cabinet Model # AXCRBUR15-MAH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRBUR15-MAH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CENTRE SUPPORT LEFT DOOR QTY 1 QTY 1 QTY 1 Warning Label RIGHT DOOR CABINET SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 4 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCRBUR15-MAH Hardware Description ALLEN KEY SCREW WOOD DOWEL M6 X 30 mm ALLEN KEY Ø8 X 30 mm QTY 18 QTY 1 QTY 4 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3 X 12 mm SHELF SUPPORT QTY 24 QTY 12...
- Page 9 Components - Key Diagram Components - Key Diagram Model # AXCRBUR15-MAH Model # AXCRBUR15-MAH...
- Page 10 Assembly Model # AXCRBUR15-MAH Step 1 1. Insert four Dowels 2 into guide holes on Bottom Shelf C ( two dowels on each Side ). 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCRBUR15-MAH Step 2 1. Attach Centre Support D to Bottom Shelf C using three Allen Key Screws 1 . 2. Use Allen key 3 to tighten. Do not over-tighten. Note: Prior to inserting Allen Key Screws 1 , ensure that the direction the holes for the Shelf Supports 6 on Centre Support D and the holes for the Shelf Supports 6 on the Side AL , AR are compatible.
- Page 12 Assembly Model # AXCRBUR15-MAH Step 3 1. Attach Top B to Centre Support D and Side AL , AR using nine Allen Key Screws 1 ( three Screws on each part ). 2. Use Allen key 3 to tighten. Do not over-tighten.
- Page 13 Assembly Model # AXCRBUR15-MAH Step 4 Triangle ruler NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. Step 5 Note: The back of the cabinet frame does not have pre-drilled holes to attach the back panels. Warning Label 1.
- Page 14 Assembly Model # AXCRBUR15-MAH Step 6 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors EL , ER to Sides AL , AR using Phillips Screws 5 into pre-drill holes: - Using Phillips screwdriver to attach Screws 5 at middle hole of hinges for both top & bottom hinges.
- Page 15 Assembly Model # AXCRBUR15-MAH Step 7 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Shelf F in desired location. 2. Two Shelf Supports 6 may be used on back top of each Shelf F as a tipping restraint.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 8 included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
