BRESSER 7009972 - Wireless Soil Moisture & Temperature Sensor Manual

About this Instruction Manual

These operating instructions are to be considered a component of the device.
Please read the safety instructions and the operating instructions carefully before use.
Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.

GENERAL WARNINGS

• Risk of electric shock — This device contains electronic components that operate via a power source (batteries). Children should only use the device under adult supervision. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.
• Choking hazard — Children should only use the device under adult supervision. Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.
• Risk of chemical burn — Keep batteries out of the reach of children! Make sure you insert the batteries correctly. Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.
• Risk of fire/explosion — Do not expose the device to high temperatures. Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fi re. Excessive heat or improper handling could trigger a short-circuit, a fire, or an explosion.
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

SCOPE OF DELIVERY

Sensor, Operating instructions

BEFORE YOU BEGIN

• We recommend using alkaline batteries. If temperatures regularly fall below 0°C (32°F), we recommend using lithium batteries.
• Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power requirements.)
• Insert batteries before first use, matching the polarity in the battery compartment. 2 x AA size 1.5V batteries are required.

NOTES ON CLEANING

• Remove the batteries before cleaning.
• Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.
• Protect the device from dust and moisture.

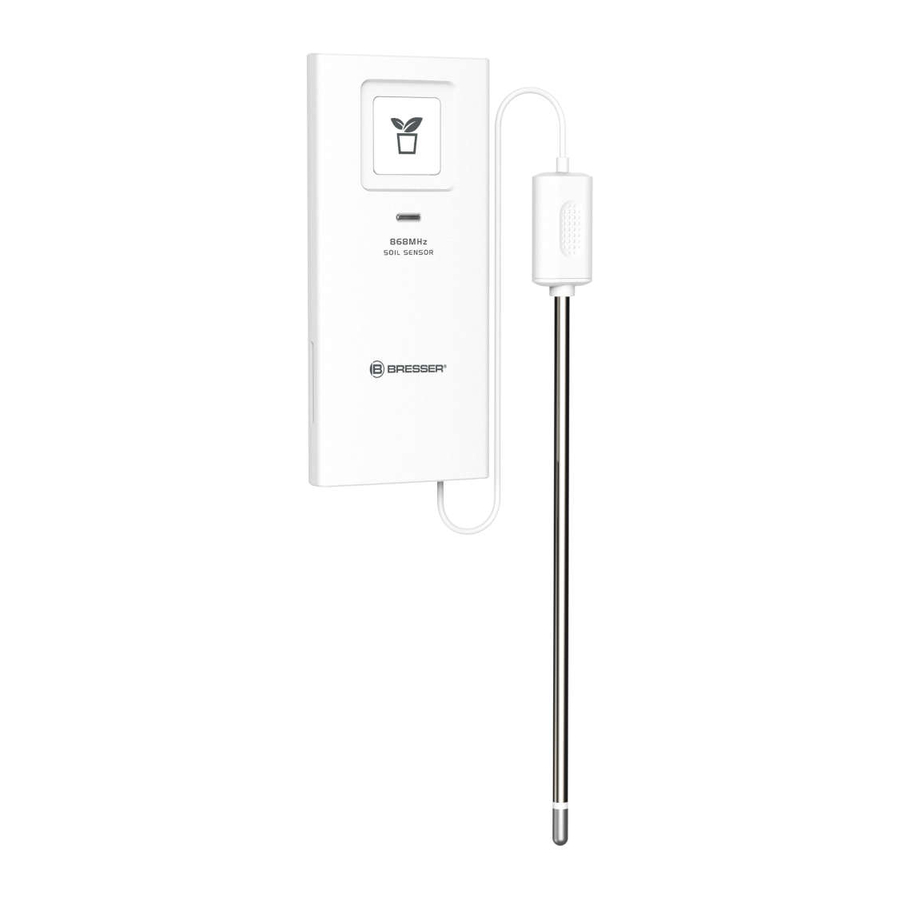

OVERVIEW

1. Transmission status LED
2. Sensor metal probes
3. Moisture sensor
4. Wall mounting holder
5. [CHANNEL] slide switch to assign the sensor to Channel 1,2,3,4,5,6 or 7
6. [RESET] key
7. Battery compartment

GETTING STARTED

1. Remove the battery door.
2. Slide the [CHANNEL] slide switch to choose a channel.
3. Insert 2 x AA size batteries into the battery compartment according to the polarity mark on the battery compartment.
4. Close the battery door.
5. After inserting batteries, the transmission status LED will light up 1 sec.

Note:

• Ensure to assign different channels of different sensors, in case you need to pair more than one sensor.
• Once the channel is assigned to a Wireless Soil Moisture & Temperature sensor, you can only change it by removing the batteries or resetting the unit.
• Avoid placing the sensor in direct sunlight, rain or snow.

PAIRING THE WIRELESS SENSOR WITH THE CONSOLE

The console will automatically search and connect to your wireless sensor(s). Once your sensor(s) pair up successful, the sensor(s) signal strength indication and weather information will appear on your console display.

Note:
During signal transmission, the LED indicator of the sensor will flash.

TEMPERATURE DISPLAY

On the display of the console which the soil sensor is linked to, temperature reading will be displayed.

SOIL MOISTURE DISPLAY

Soil moisture can be clarified into 5 different levels: Very Dry, Dry, Moist, Wet and Very Wet.

To determine the moisture of soil, the sensor calibrate the moisture into 16 points, and correlate them into percentage value:

Note:
The measurement accuracy of the sensor can be affected by the soil condition. For example, the loose soil may get lower moisture level that compare with the dense soil.

SENSOR PLACEMENT

Select the suitable installation site that insert the sensor probes into the soil around 100mm (4 inch) and sensor should place within 150 meters of the display console to get the best transmission performance.

Note:
Signal transmission range of the sensor will be gradually reduced as sensor is inserted deeper into the soil. To achieve best transmission range, install the sensor on the same plain of view as the display console.

RESET THE SENSOR

In case of malfunction, press the [RESET] button to reset the sensor.

SPECIFICATIONS

DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!
As per the Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law — at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive. Batteries that contain toxins are marked with a sign and a chemical symbol.

¹ battery contains cadmium
² battery contains mercury
³ battery contains lead

EC Declaration of Conformity

Hereby, Bresser GmbH declares that the equipment type with part number: 7009972 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/7009972/CE/7009972_CE.pdf

UKCA DECLARATION OF CONFORMITY

Bresser UK Ltd. has issued a „Declaration of Conformity" in accordance with applicable guidelines and corresponding standards. The full text of the UKCA declaration of conformity is available at the following internet address: www.bresser.de/download/7009972/UKCA/7009972_UKCA.pdf

Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6Hf, Great Britain

WARRANTY & SERVICE

The regular guarantee period is 5 years and begins on the day of purchase. You can consult the full guarantee terms as well as information on details of our services at www.bresser.de/warranty_terms. Would you like detailed instructions for this product in a particular language? Then visit our website via the link below (QR code) for available versions. Alternatively you can also send an email to manuals@bresser.de or leave a message on +49 (0) 28 72 – 80 74-220*. Please always state your name, precise address, a valid phone number and email address, as well as the article number and name.

*Number charged at local rates in Germany (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

Bresser GmbH
Gutenbergstr. 2 · DE-46414 Rhede · Germany
www.bresser.de · service@bresser.de

BRESSER UK Ltd.
Suite 3G, Eden House, Enterprise Way,
Edenbridge, Kent TN8 6Hf, Great Britain

Errors and technical changes reserved.
