Global American 3312400 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
3312400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3312400 and is the answer not in the manual?

Questions and answers

Related Manuals for Global American 3312400

Summary of Contents for Global American 3312400

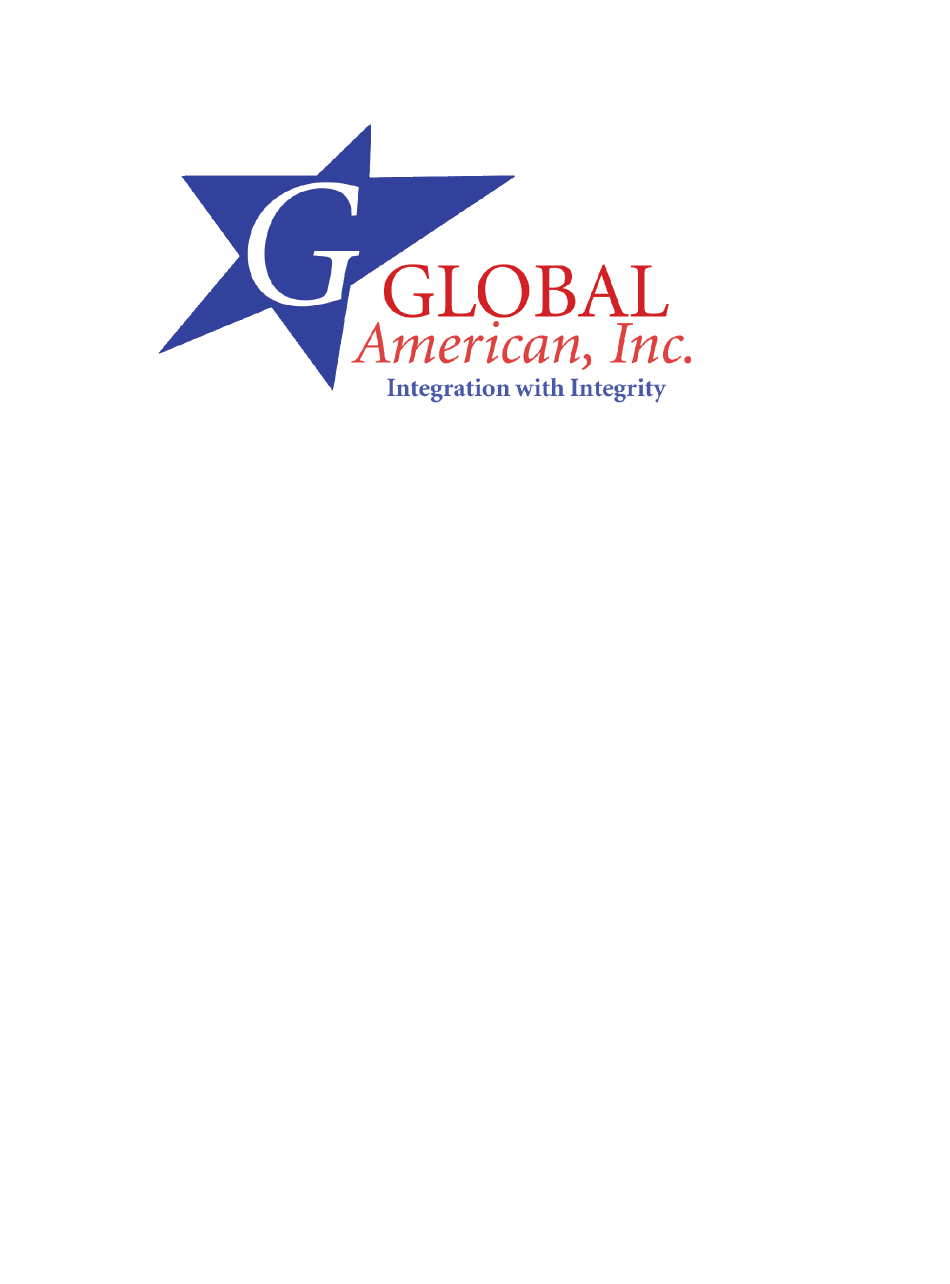

  • Page 1 User's Manual 3312400...
  • Page 2 Award Software International, Inc. DiskOnChip 2000 and TrueFFS ® are registered trademarks of M-Systems Inc.. Other product names mentioned herein are used for identification purposes only and may be trademarks and/ or registered trademarks of their respective companies. 3312400 User's Manual...

  • Page 3: Table Of Contents

    Chipset Features Setup ..................29 Integrated Peripherals ..................34 Power Management Setup .................. 37 PnP/PCI Configuration ..................39 PC Health Status ....................41 Frequency/Voltage Control ................. 42 POST Codes ................43 Howto : Flash the BIOS ............50 3312400 User's Manual...
  • Page 4 What if things go wrong ..................51 Warranty ................... 52 3312400 User's Manual...

  • Page 5: Introduction

    3312400 User's Manual...

  • Page 6: Specifications

    • Bi-directional Parallel Port : SPP, EPP and ECP mode. • Keyboard and Mouse : support one PS/2 Keboard and one PS/2 Mouse • Audio Chipset: VIA VT82C686B, AC97 2.0 compliant, Multistream Direct Sound and Direct Sound 3D acceleration. 3312400 User's Manual...

  • Page 7: Network Interface Controller

    • System Monitoring and Alarm : CPU and System temperature, system voltage . • Board Dimensions : 95mm x 114mm (3.7" x 4.5") • Board Weight : 0.087kg • Operating Temperature : 0 to 60 ° C (32 to 140 ° 3312400 User's Manual...

  • Page 8: Board Image

    Board Image 3312400 User's Manual...

  • Page 9: Ordering Codes

    SODIMM socket up to 512 MB SDRAM, CRT SVGA, One Realtek 8139C Fast Ethernet, AC97 3D Audio. 1001010 The Evalution Board for ETX serials development (ATX form factor) Heat Sink 2631160981306 SODIMM 64MB 5150064001440 128MB 5150128001440 3312400 User's Manual...

  • Page 10: Board Layout Front

    Board Layout Front LCD1 Ede n ESP 500 0 LCD2 PN133T DIMM1 Board Layout Back EXT2 EXT4 EXT1 EXT3 3312400 User's Manual...

  • Page 11: Jumper/Connector Quick Reference

    Jumper/Connector Quick Reference Connectors Lable Function LCD1 LCD TTL Connector 1 LCD2 LCD TTL Connector 2 ETX1 PCI Bus, USB, Audio ETX2 ISA Bus ETX3 VGA,LCD,Video,COM1,COM2,LPT,IrDA,M/K ETX4 IDE1,IDE2,Ethernet,Miscellane ous 3312400 User's Manual...

  • Page 12: Watchdog Timer

    Look subsequntly at the program example how to pass the value to the watchdog timer. Timeout Table Level Value Seconds Level Value Seconds Level Value Seconds 3312400 User's Manual...
  • Page 13 3312400 User's Manual...
  • Page 14 DX mov DX,WDT_DIS ; Disable Timer in AX,DX pop DX ; Restore DX,AX pop AX WT_Disable push AX ; save AX,DX push DX mov DX,WDT_DIS ; Disable Timer in AX,DX pop DX ; restore DX,AX pop AX 3312400 User's Manual...

  • Page 15: Flat Panel Vga

    FPD19 FPD20 FPD21 FPD22 FPD23 SHFCLK PANELHS M(DE) PANELVS ENABLK E NA V EE LCD2 Type : Onboard 20-pin Box Header (Hirose DF-20DS-1.25C) Description Description FPD24 FPD25 FPD26 FPD27 FPD28 FPD29 FPD30 FPD31 FPD32 FPD33 FPD34 FPD35 3312400 User's Manual...

  • Page 16: System Resources

    0060 - 0060 Key board 0061 - 0061 Systems Speaker 0062 - 0063 Motherboard Resources 0064 - 0064 Key board 0065 - 006F Motherboard Resources 0070 - 0073 System CMOS / Real time clock 0074 - 007F Motherboard Resources 3312400 User's Manual...
  • Page 17 Avance AC'97 Audio for VIA (R) Audio Controller E000 - E003 Avance AC'97 Audio for VIA (R) Audio Controller E400 - E403 Avance AC'97 Audio for VIA (R) Audio Controller E800 - E8FF Realtek RTL8139(A/B/C/ 8130) PCI Fast Ethernet NIC 3312400 User's Manual...

  • Page 18: Etx Connector

    AD19 SA16 IOW # USB0- AD20 SA18 SA17 AD22 AD21 SA19 SMEMR# AD23 USB1- IOCHRDY AD24 CBE#3 SMEMW# AD25 AD26 USB0+ AD28 NOWS# AD29 AD27 DREQ2 AD30 USB1+ IRQ9 AD31 PCIRST# INTC# INTD# IOCHK# RSTDRV INTB# INTA# 3312400 User's Manual...

  • Page 19: Etx Connector

    SIDE_D4 PIDE_D11 SIDE_D10 TXD#2 PIDE_D4 SIDE_D5 PIDE_D10 RI2# SIDE_D9 RXD1 ACK# PIDE_D5 RTS#1 SIDE_D6 PIDE_D9 BUSY# DTR#1 SIDE_D8 PIDE_D6 DCD#1 SLCT# RING IN RXD# DSR#1 MSCLK PIDE_D8 CTS#1 MSDAT SIDE_D7 TXD#1 TXD# PIDE_D7 KBCLK RI1# KBDAT HDRST# 3312400 User's Manual...

  • Page 20: Award Bios Setup

    The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. 3312400 User's Manual...

  • Page 21: Setup Items

    Set Pas swor d Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Save Abandon all CMOS value changes and exit setup. 3312400 User's Manual...

  • Page 22: Standard Cmos Setup

    5.25 in 5-1/4 inch PC-type standard drive 1.2M ; 5.25 in 5-1/4 inch AT-type high-density drive 720K ; 3.5 in 3-1/2 inch double-sided drive 1.44M ; 3.5 in 3-1/2 inch double-sided drive 2.88M ; 3.5 in 3-1/2 inch double-sided drive 3312400 User's Manual...
  • Page 23 Panel Type Select the different panel type to run the system. Four various resolutions for TFT type and two for DSTN. Boot Device This item allows you to select the different devices for boot up function 3312400 User's Manual...

  • Page 24: Ide Harddisk Setup (Submenu)

    Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program. Acc e ss Mo de Normal, LBA, Large or Auto Choose the access mode for this hard disk 3312400 User's Manual...
  • Page 25 We recommend that you select Type "AUTO" for all drives. The BIOS will auto- detect the hard disk drive and CD-ROM drive at the POST stage. If your hard disk drive is a SCSI device, please select "None" for your hard drive setting. 3312400 User's Manual...

  • Page 26: Bios Features Setup

    Enabled Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table. Disabled No warning message will appear when anything attempts to access the boot sector or hard disk partition table. 3312400 User's Manual...
  • Page 27 The choice: 6, 8, 10, 12, 15, 20, 24, 30. Type matic Dela y (Ms ec) Sets the delay time after the key is held down before it begins to repeat the keystroke. The choice: 250, 500, 750, 1000. 3312400 User's Manual...
  • Page 28 'Memory'. This will tell you what segments (if any) are being shadowed For DOS you can use MSD.EXE to see what segments are claimed. CC000-CFFFF - D0000-D3FFF - D4000-D7FFF - D8000-DBFFF and DC000-DFFFF - Same as above. 3312400 User's Manual...

  • Page 29: Chipset Features Setup

    However, some SDRAM cannot handle the lower cycle length and may become unstable. So, set the SDRAM Cycle Length to 2 for optimal performance if possible but increase it to 3 if your system becomes unstable. 3312400 User's Manual...
  • Page 30 Video RA M Cachea ble This item allows you to "Enabled" or "Disabled" on Video RAM Cacheable. Frame Buffer Size This item defines the amount of system memory that will be shared and uses as video memory. 3312400 User's Manual...
  • Page 31 If your system contains a Universal Serial Bus controller and you have a USB peripheral, select Enabled. The next option will become available. USB Legacy Support Enable this item to support USB devices booting. OnChip Sound This menu can access the sound controller automaticlly 3312400 User's Manual...
  • Page 32 Select Enabled to support compliance with PCI specifica- tion version 2.1. Delay Transaction The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specifica- tion version 2.1. 3312400 User's Manual...
  • Page 33 1 wait state or clock cycle. For better AGP read performance, enable this option but disable it if you experience weird graphical anomalies like wireframe effects and pixel artifacts after enabling this option. 3312400 User's Manual...

  • Page 34: Integrated Peripherals

    If you are getting disk drive errors, change the setting to omit the drive interface where the errors occur. Depending on the configuration of your IDE subsystem, this field may not appear, and it does appear when the Internal PCI/IDE filed, above, is Disabled. 3312400 User's Manual...
  • Page 35 Select an operating mode for the parallel port. Mode options are Normal, EPP, ECP, ECP/EPP. ECP Mode Use DMA Select a DMA channel if parallel Mode is set as ECP, ECP/EPP. Parallel Port EPP Type Select a EPP Type if parallel Port is set as EPP, ECP/EPP. 3312400 User's Manual...
  • Page 36 Serial Port 4 Use IRQ Configuration options: IRQ3, IRQ4, IRQ10 and IRQ11. The default setting is "IRQ10". Onbo ard Legacy Audio Configuration options: Enabled and Disabled. When Enabled, select additional settings for SoundBlaster Compatibillity and MPU-401 functionallity 3312400 User's Manual...

  • Page 37: Power Management Setup

    SL CPU's.. Doze Mode = 1 min., Standby Mode = 1 min., Suspend Mode = 1 min. User Defined Allows you to set each mode individually. When not disabled, each of the ranges are from 1 min. to 1 hr. HDD Power Down is always set independently 3312400 User's Manual...
  • Page 38 ON, OFF and Auto. Wake Up Events Setting an event on each device listed to awaken the system from a soft off state. Power Button Wake Up on LAN Wake Up on Modem RTC Alarm Resume 3312400 User's Manual...

  • Page 39: Pnp/Pci Configuration

    Resource Con trolled By The Award Plug and Play BIOS can automatically configure all the boot and Plug-and-Play compatible devices. If you select Auto, all the interrupt request (IRQ) and DMA assignment fields disappear, as the BIOS automatically assigns them. 3312400 User's Manual...
  • Page 40 IRQ. Assign IRQ For USB Windows 95 will automatically give an IRQ to the USB port even if there is no USB peripheral connected. Disabling this will free the IRQ. 3312400 User's Manual...

  • Page 41: Pc Health Status

    Show you the current CPU temperature Current CPUFAN Speed Show you the current CPUFAN operating speed V c o r e Show you one type of CPU voltage +2.5, +3.3V, +5V Show you the different voltage can be used for the system 3312400 User's Manual...

  • Page 42: Frequency/Voltage Control

    DIMM and PCI devices. When disabled, it will send the clock signal to all DIMM and PCI socket. Sp read Sp ectru m This item allows you to enable/disable the spread spectrum modulate. 3312400 User's Manual...

  • Page 43: Post Codes

    Reserved 0 Ah 1. Disable PS/2 mouse interface (optional). 2. Auto detect ports for keyboard & mouse followed by a port & interface swap (optional). 3. Reset keyboard for Winbond 977 series Super I/O chips. Reserved Reserved 3312400 User's Manual...
  • Page 44 RTC minute. 2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead. Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD's legacy information. 3312400 User's Manual...
  • Page 45 Reserved Reset keyboard if Early_Reset_KB is defined e.g. Winbond 977 series Super I/O chips. See also POST 63h. Reserved Test DMA Channel 0 Reserved Test DMA Channel 1. Reserved Test DMA page registers. 3 Ah Reserved Reserved 3312400 User's Manual...
  • Page 46 CPU are not identical. Reserved Initialize USB Keyboard & Mouse. Reserved Test all memory (clear all extended memory to 0) Clear password according to H/W jumper (Optional) Reserved Display number of processors (multi-processor platform) Reserved 3312400 User's Manual...
  • Page 47 1. Assign resources to all ISA PnP devices. 2. Auto assign ports to onboard COM ports if the corresponding item in Setup is set to "AUTO". Reserved 1. Initialize floppy controller 2. Set up floppy related fields in 40:hardware. Reserved 3312400 User's Manual...
  • Page 48 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1. USB final Initialization 2. Switch screen back to text mode Reserved NET PC: Build SYSID Structure. Reserved 3312400 User's Manual...
  • Page 49 Update keyboard LED & typematic rate 1. Build MP table 2. Build & update ESCD 3. Set CMOS century to 20h or 19h 4. Load CMOS time into DOS timer tick 5. Build MSIRQ routing table. Boot attempt (INT 19h) 3312400 User's Manual...

  • Page 50: Howto : Flash The Bios

    1. In CMOS Chipset Features Setup, Disable Video Bios Cacheable. 2. Hit Esc, F10, Save and exit. 3. Flash the BIOS and reboot 4. Enter CMOS Chipset Features Setup,and Enable Video Bios Cacheable, hit Esc, F10, Save and reboot. 3312400 User's Manual...
  • Page 51 BIOS not written for your motherboard they usually don't work. The MR Flash utilities communicate directly with your Flash Rom and always work. In most cases they flash a non-MRBIOS to your BIOS chip without problems. 3312400 User's Manual...
  • Page 52 Return authorization must be obtained from the vendor before returned merchandise will be accepted. Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. 3312400 User's Manual...
  • Page 53 Any advice or comments about our products and service, or anything we can help you with please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business. Global American Inc. Address 17 Hampshire Drive Hudson, NH 03051 Toll Free (U.S.
