Electrolux N7E Series Installation And Operating Manual
Infrared and induction cooktops
Hide thumbs
Also See for N7E Series:
- Installation and operating manual (32 pages) ,
- Installation and operating manual (26 pages) ,
- Installation and operating manual (30 pages)
Related Manuals for Electrolux N7E Series
Summary of Contents for Electrolux N7E Series

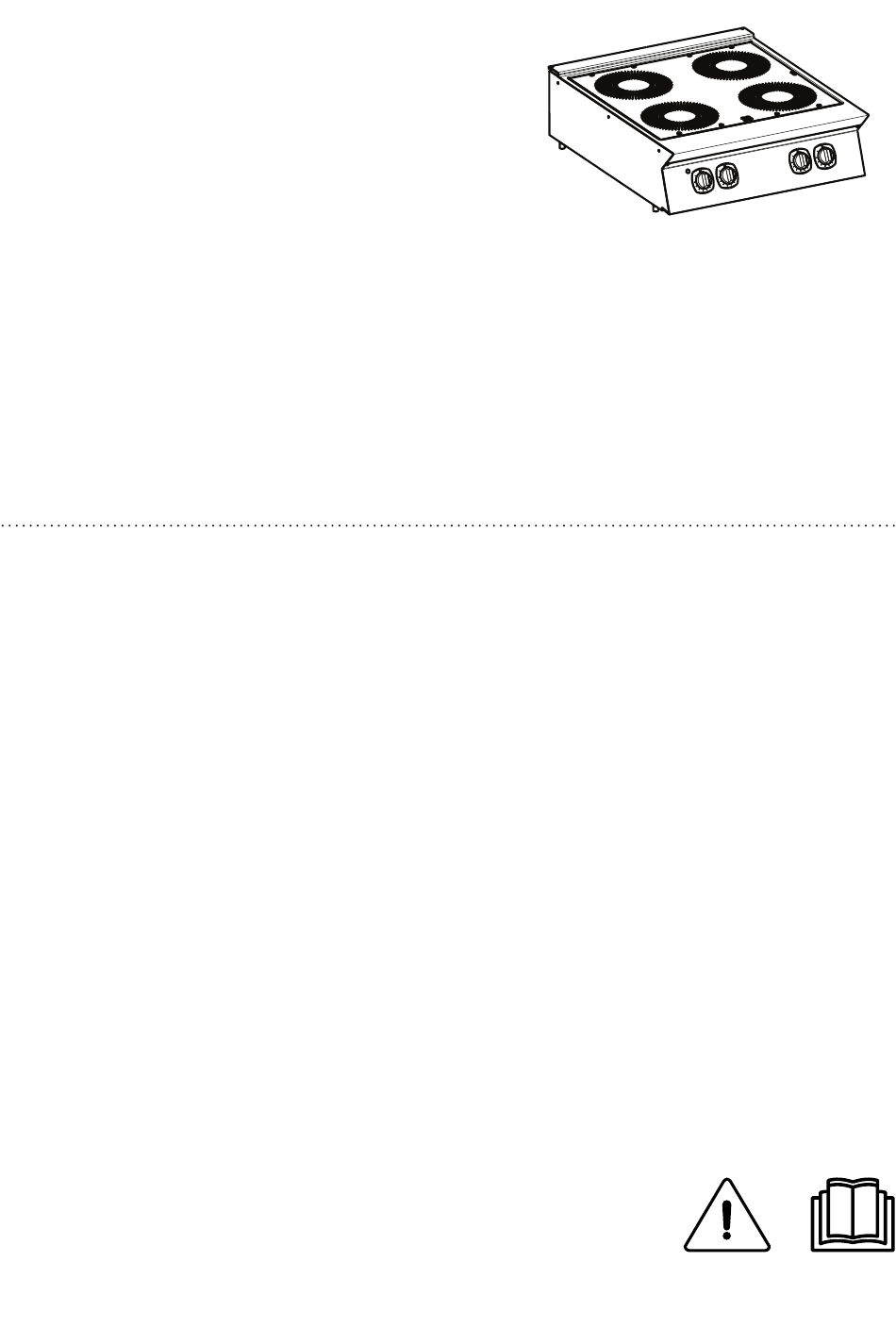

- Page 1 I I n n f f r r a a r r e e d d a a n n d d i i n n d d u u c c t t i i o o n n c c o o o o k k t t o o p p s s N7E/N9E E E N N...
- Page 2 F F o o r r e e w w o o r r d d The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the machine (hereinafter “machine“ or “appliance“). The following must not be considered a long and exacting list of warnings, but rather a set of instructions suitable for improving machine performance in every respect and, above all, preventing injury to persons and animals and damage to property due to im- proper operating procedures.
- Page 3 C C o o n n t t e e n n t t s s A WARNING AND SAFETY INFORMATION ....................5 General information ........................5 Personal protection equipment ......................6 General safety ..........................6 Wok Induction general safety ......................7 General safety rules ........................
- Page 4 G.1.8 Warnings......................... 21 G.1.9 Table of warnings......................22 G.1.10 Inefficiencies detected during cooking ................... 23 Repair and extraordinary maintenance .................... 23 Maintenance intervals........................23 Maintenance and schedule ......................23 H MACHINE DISPOSAL........................... 24 Waste storage ........................... 24 Procedure regarding appliance dismantling macro operations .............. 24 ENCLOSED DOCUMENTS........................
- Page 5 W W A A R R N N I I N N G G A A N N D D S S A A F F E E T T Y Y I I N N F F O O R R M M A A T T I I O O N N A A .
- Page 6 A A . . 2 2 P P e e r r s s o o n n a a l l p p r r o o t t e e c c t t i i o o n n e e q q u u i i p p m m e e n n t t S S u u m m m m a a r r y y t t a a b b l l e e o o f f t t h h e e P P e e r r s s o o n n a a l l P P r r o o t t e e c c t t i i o o n n E E q q u u i i p p m m e e n n t t ( ( P P P P E E ) ) t t o o b b e e u u s s e e d d d d u u r r i i n n g g t t h h e e v v a a r r i i o o u u s s s s t t a a g g e e s s o o f f t t h h e e m m a a c c h h i i n n e e ' ' s s s s e e r r v v i i c c e e l l i i f f e e .
- Page 7 • Place emergency telephone numbers in a visible position. • The A-weighted emission sound pressure level does not exceed 70 dB(A). • Turn the appliance off in case of fault or poor operation. • Do not use products (even if diluted) containing chlorine (sodium hypochlorite, hydrochloric or muriatic acid, etc.) to clean the appliance or the floor under it.
-
Page 8: Residual Risks
Instructions for use and maintenance • Risks mainly of a mechanical, thermal and electrical nature exist in the machine. Where possible the risks have been neutralised: – directly, by means of adequate design solutions. – indirectly by using guards, protection and safety devices. •... -
Page 9: Mechanical Safety Characteristics, Hazards
Mechanical safety characteristics, hazards • The appliance does not have sharp edges or protruding parts. The guards for the moving and live parts are fixed to the cabinet with screws, to prevent accidental access. I I M M P P O O R R T T A A N N T T In case of a significant anomaly (e.g. - Page 10 A A . . 7 7 T T r r a a n n s s p p o o r r t t , , h h a a n n d d l l i i n n g g a a n n d d s s t t o o r r a a g g e e •...
- Page 11 A A . . 1 1 1 1 O O p p e e r r a a t t i i n n g g l l i i m m i i t t s s Induction appliances: to guarantee continuous operation at maximum power, the room temperature must be below 40 °C.
-
Page 12: Ordinary Maintenance
• failure to use personal protection equipment by operators, specialised personnel and maintenance personnel; • failure to use suitable accessories (e.g. use of unsuitable equipment or ladders); • keeping combustible or flammable materials, or in any case materials not compatible with or pertinent to the work, near the machine;... -
Page 13: Preventive Maintenance
Preventive maintenance • Preventive Maintenance reduces downtime and maximizes machines efficiency. Customer Care Service can provide advice on the best maintenance plan to be purchased based on the intensity of use and the age of the equipment. Repair and extraordinary maintenance •... - Page 14 + phase power supply frequency max. power input current absorbed power Power unit El. dust and water protection rating CE marking certification group logo IMQ/GS Electrolux Professional SpA Viale Treviso 15 33170 Porde- manufacturer none Italy...
- Page 15 B B . . 3 3 I I n n f f r r a a r r e e d d a a p p p p l l i i a a n n c c e e N N 7 7 E E M M o o d d e e l l s s + + 7 7 I I R R E E D D 2 2 0 0 0 0 0 0...
- Page 16 L L a a w w r r e e q q u u i i r r e e m m e e n n t t s s o o n n l l y y f f o o r r A A u u s s t t r r a a l l i i a a port personnel. This appliance shall be installed only by authorised persons Manufacturer Electrolux Professional SpA or any other and in accordance with the manufacturer’s installation instruc- service centre authorised by Electrolux tions, local gas fitting regulations, municipal building codes, Professional SpA.
- Page 17 Customer receives from the Manufacturer will form an integral part of the manual and therefore must be kept Electrolux Professional SpA declines any liability for inaccur- together with it. acies contained in the manual, if due to printing or translation errors.
- Page 18 I I M M P P O O R R T T A A N N T T 6. Turn one of the two plates inside the appliances 180℃ The machine is not suitable for installa- (Fig.1C); tion outdoors and/or in places exposed to atmospheric agents (rain, direct sunlight, etc.) at altitudes exceeding 2000 m above sea level.
- Page 19 W W A A R R N N I I N N G G E E . . 7 7 . . 3 3 C C i i r r c c u u i i t t b b r r e e a a k k e e r r Verify that a safety circuit breaker is installed between the If the power cable is damaged, it power cable of the appliance and the mains electric line.
- Page 20 • This heating system does not work with unsuitable materi- to a part of it: the pot must always remain in the middle of the als; these are: nickel-chromium s/steel, aluminium, copper, cooking zone. brass, glass, porcelain. • When heating oil or fat, watch the pot constantly because •...
- Page 21 M M A A C C H H I I N N E E C C L L E E A A N N I I N N G G A A N N D D M M A A I I N N T T E E N N A A N N C C E E W W A A R R N N I I N N G G I I M M P P O O R R T T A A N N T T Make sure no water comes into contact...
- Page 22 When cooled, the cooking zone can be switched on again by turning the control knob from “0“ to the desired setting. G G . . 1 1 . . 9 9 T T a a b b l l e e o o f f w w a a r r n n i i n n g g s s C C O O R R R R E E C C T T I I V V E E C C O O R R R R E E C C T T I I V V E E N N r r .
- Page 23 Disconnect the appli- Check the main power Error in mains current ance from the mains Error in mains current supply measurement and call the after-sales service Disconnect the appli- Check the main power Mains voltage too high ance from the mains Error in mains voltage supply or too low...
- Page 24 M M a a i i n n t t e e n n a a n n c c e e , , i i n n s s p p e e c c t t i i o o n n s s , , c c h h e e c c k k s s a a n n d d c c l l e e a a n n i i n n g g F F r r e e q q u u e e n n c c y y R R e e s s p p o o n n s s i i b b i i l l i i t t y y Yearly...
- Page 25 E E N N C C L L O O S S E E D D D D O O C C U U M M E E N N T T S S • Set of test and inspection documents. •...
- Page 28 Electrolux Professional SPA Viale Treviso 15 33170 Pordenone www.electrolux.com/professional...
