Some DIMM memory have SPD ( Serial Presence Detect ) 8-pin IC on module. It is not
recommended the SPD ( Serial Presence Detect ) DIMM blends and non-SPD DIMM.

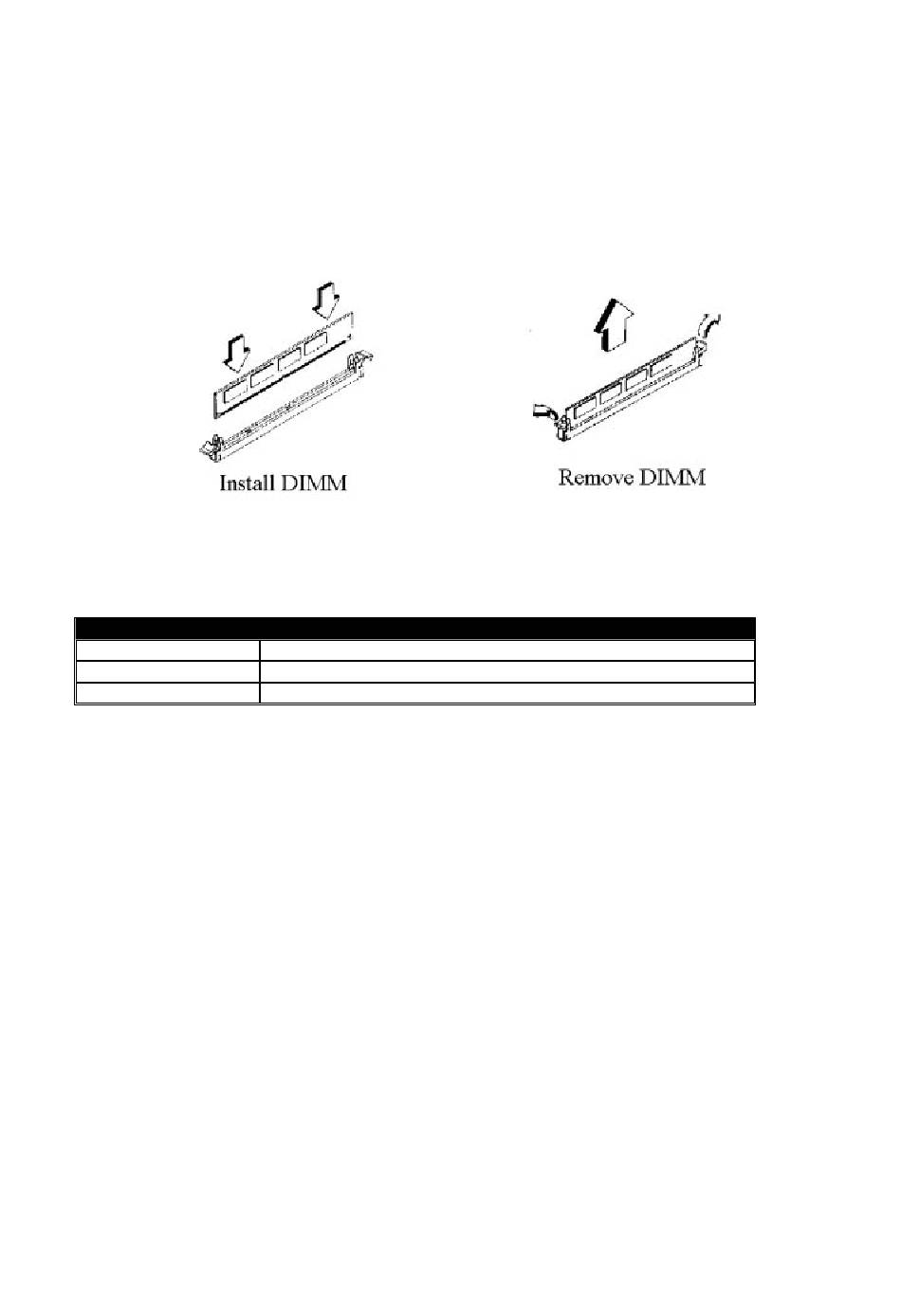

2.3.1 Installation of 168-pin DIMM (Dual Inline Memory Module)
1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with the pin1 on the DIMM socket.
2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.
2.3.2 Removal of 168-pin DIMM
1. Press the holding clips on both sides of the socket outward to release the DIMM.
2. Gently pull the DIMM out of the socket.
2.3.3 Memory Configuration
There is no jumper setting required for the memory size or type. It is automatically detected by
the system BIOS, and the total memory size is to add them together.
DIMM Socket
DIMM1
DIMM2
DIMM3
2.4 I/O Connections/Panel Connections
I/O Connections
J1
CPUFAN
CHASFAN
JIR
JWOL
SB_LINK
FLOPPY
IDE1, 2
MS
KB
VGA
COM1,JCOM2
PRINTER
USB
GAME
LINE_OUT
LINE_IN
MIC
MITSUMI
SONY
2.4.1 ATX Power Connector (20-pin J1)
Make sure that the power supply is off before connecting or disconnecting the power cable.
PC100/133 SDRAM 32, 64, 128, 256, 512MB
PC100/133 SDRAM 32, 64, 128, 256, 512MB
PC100/133 SDRAM 32, 64, 128, 256, 512MB
ATX Power Connector
CPU fan connector
Chassis fan connector
Infrared Connector ( Cable optional )
Wake up on LAN connector
For link with Creative's Sound Blaster 16
Floppy Disk Drive Connector
Primary / Secondary IDE Connectors
PS/2 Mouse Port
PS/2 Keyboard Connector
VGA output Connector
Serial Ports 1 & 2
Printer Port
USB Connector
Game/MIDI Connectors
Line out Connector
Line in Connector
Microphone in Connector
The Connector for Mitsumi CD-ROM audio cable
The Connector for IDE/Sony CD-ROM audio cable
DIMM Modules
