Chapter 2. Hardware Setup

2.1 Installation Procedure
1. Jumper settings
2. Installation of CPU
3. Installation of Memory
4. I/O Connections & Panel Connections
2.1.1 Jumper Settings
In this manual, (1-2) represents the first and second pins of the jumper. (2-3) represents the

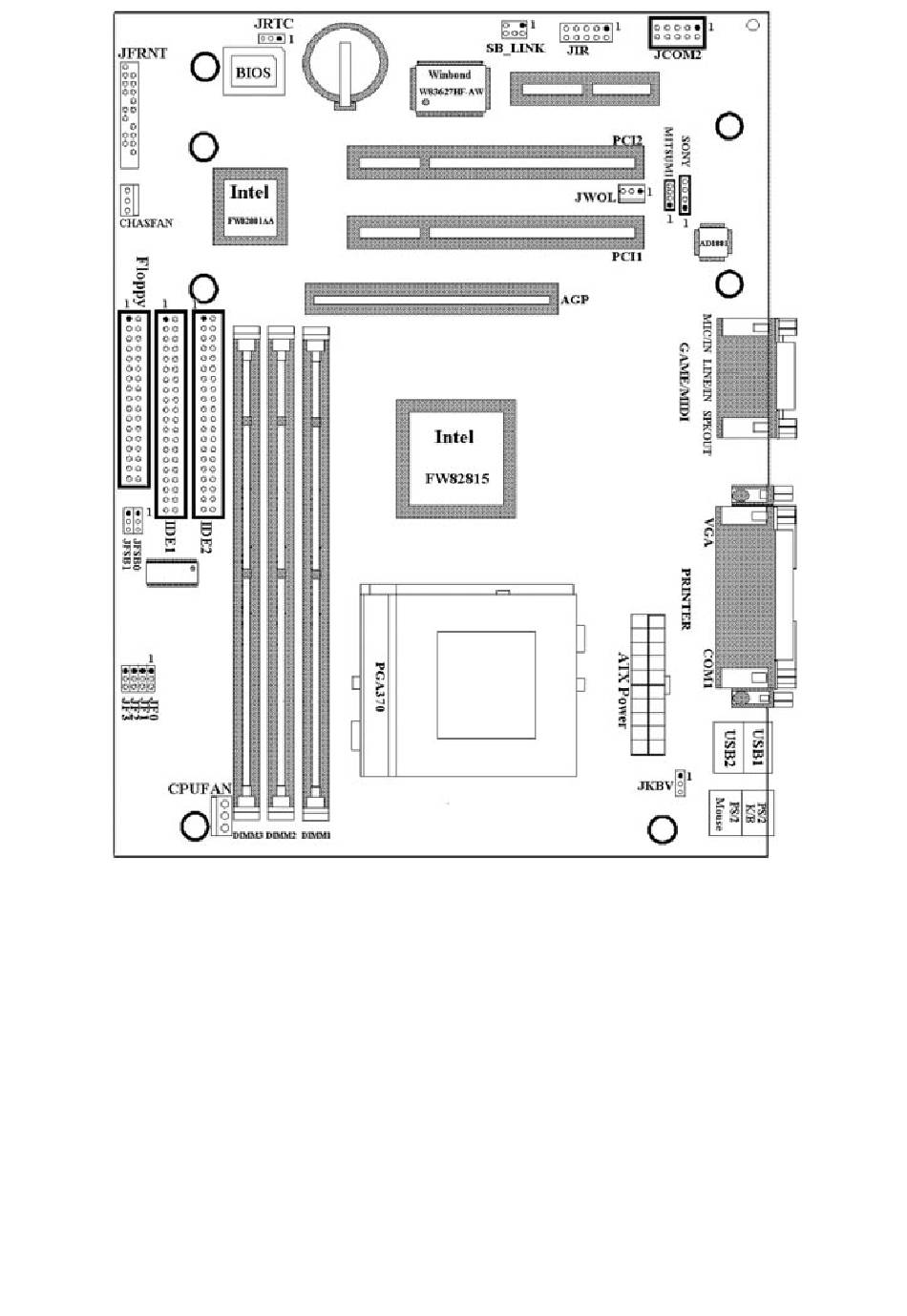

second and third pins of the jumper. On the motherboard, you will see two sets of jumpers with
different color jumper caps:
Yellow Jumper Caps: Sets the Function of Flash CMOS
Green Jumper Caps:
Red Jumper Caps:
Sets the type and speed of CPU
Sets the FSB frequency of CPU JFSB
JRTC
JF0, JF1, JF2, JF3
Sets the Keyboard Voltage JKBV
