Taiwan Commate Computer Inc. 370SMA User Manual page 11

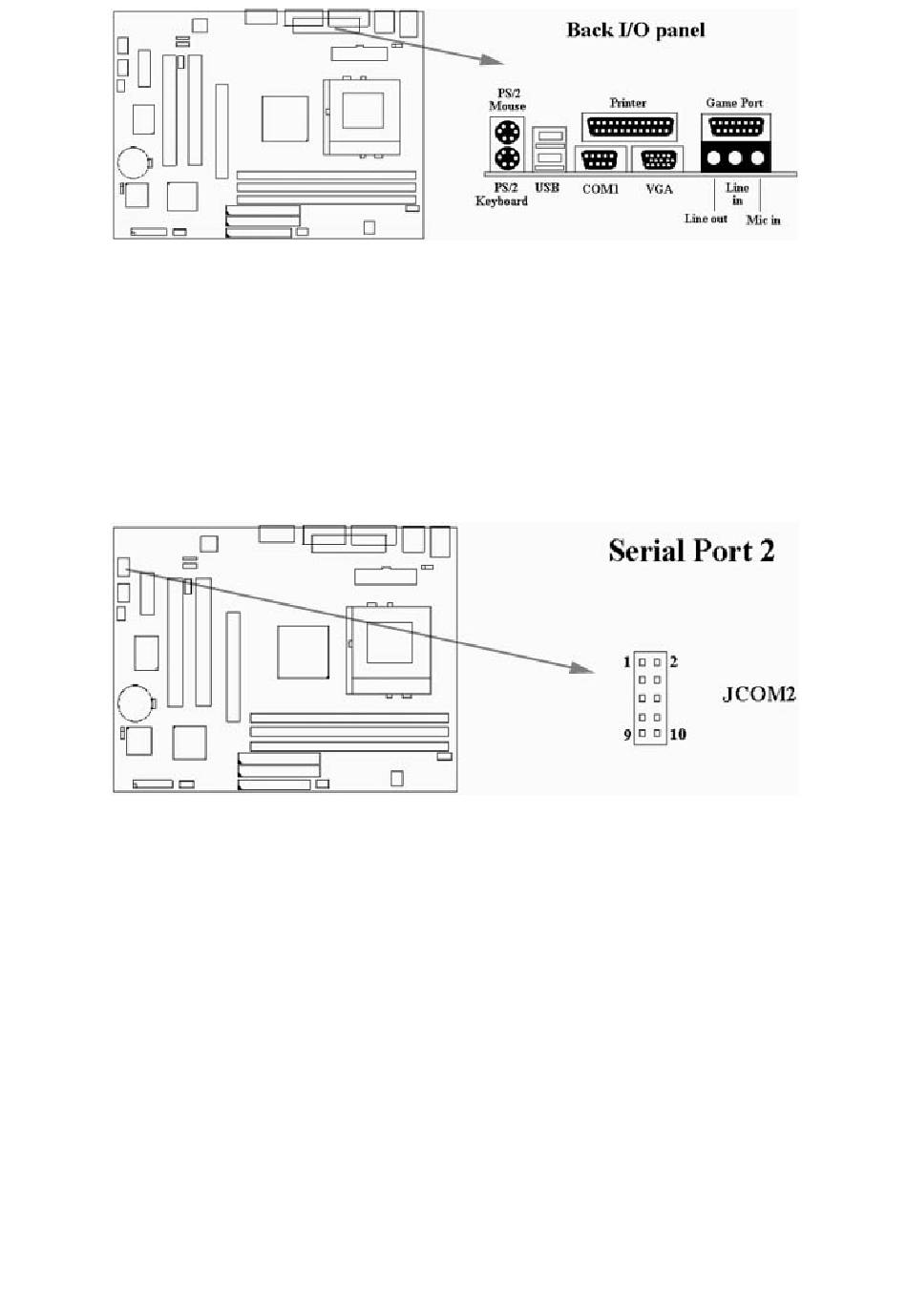

2.4.8 PS/2 Mouse Port (6-pin Mini-Din MS)
The system will direct IRQ12 to the PS/2 mouse.
2.4.9 PS/2 Keyboard Connector (6-pin Mini-Din KB)
This connection is for a standard keyboard using a PS/2 plug. You may use a Din to Mini-Din
adapter on standard AT keyboards.
2.4.10 VGA Output Connector (15-pin female)
This connector is for output to a VGA-compatible device.
2.4.11 Serial Port (9-pin D-type COM1 & 10-pin JCOM2)
2.4.12 Printer Port (25-pin D-type PRINTER)
You can enable the parallel port and choose the IRQ through the "Onboard Parallel Port" setting
in Integrated Peripherals of the CMOS SETUP UTILITY.
2.4.13 USB Connectors (Two 4-pin USB)
You can attach USB devices to the USB connector.
2.4.14 Line Out Connector
The Line Out phonejack provides the audio outputs for the left and right stereo channels.
2.4.15 Line In Connector
The Line In phonejack is used to attach monaural or stereo devices such as a cassette, Digital
Audio Tape, or Minidisc players for playback, mixing, or recording.
2.4.16 Microphone In Connector
The Microphone In phonejack is used to attach a monaural microphone for live audio input for
playback, mixing, or recording.
2.4.1 7ATAPI IDE/Sony CD-ROM Audio (4-pin SONY)
The ATAPI IDE/Sony CD-ROM Audio connector is used to connect the audio cable from either an
ATAPI IDE or Sony CD-ROM drive for playback, mixing, and recording.
