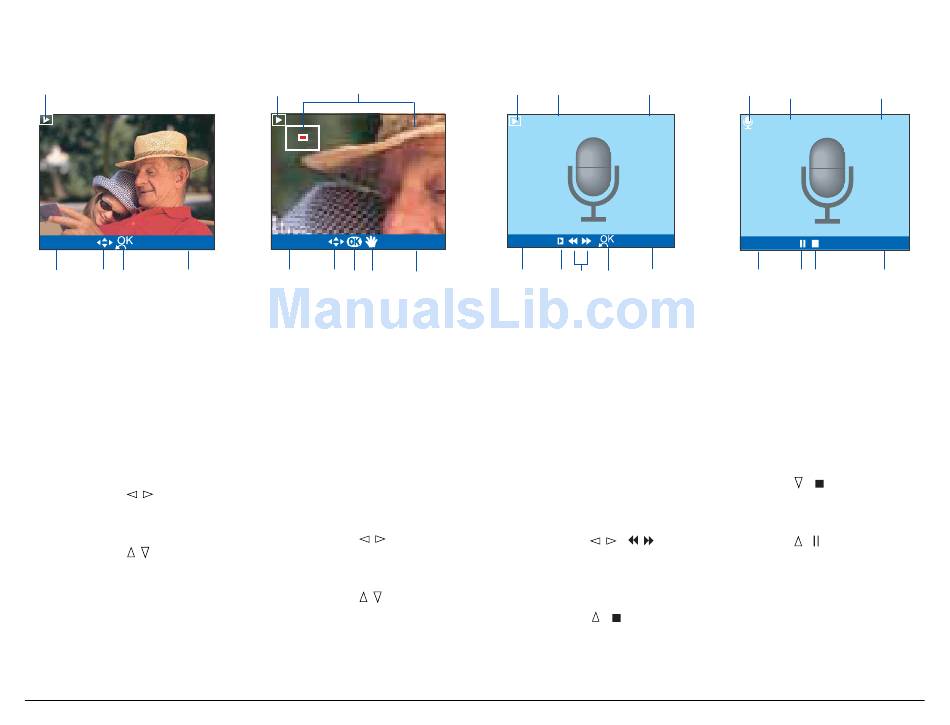

Microtek Take-it MV500 User Manual page 16

1
01/09
5 4 3 2
Still image
(Normal view)
1. Playback mode
2. Selected file/Total number
of files taken
3. Press the OK button to
return to nine-image
display mode
4. Press the / button to
move forward/backward
and select a different file
Press the / button to
display the still image in a
magnification setting
5. File type indicator
16
1 2
4.0X
01/09
7 6 5 4 3
Still image
(Magnified view)
1. Playback mode
2. Image magnification level
(1X – 4X)
3. Selected file/Total
number of files taken
4. Pan mode
5. Press the OK button to
enable the Pan feature
6. Press the / button to
move forward/backward
and select a different file
Press the / button to
magnify the still image
7. File type indicator
1 2 3
00:00:00 00:02:09
06/09
AUDIO
8 7 6 5 4
Audio playback standby
1. Playback mode
2. Elapsed playback time
3. Total playback time
4. Selected file/Total
number of files taken
5. Press the OK button to
return to nine-image
display mode
6. Press the / ( / )
button to move
forward/backward and
select a different file
7. Press the ( ) button
to start the audio
playback
8. File type indicator
1 2 3
00:00:05 00:02:09
06/09
AUDIO
7 6 5 4
Audio playback
1. Playback mode
2. Elapsed playback time
3. Total playback time
4. Selected file/Total
number of files taken
5. Press ( ) to stop the
audio playback and to
return to standby
6. Press ( ) to pause the
audio playback
7. File type indicator
