READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE
103614_EN
BERCO
Subframe
CUB CADET 3000 SERIES
* ASSEMBLY
* OPERATION
CAUTION:
OPERATING YOUR EQUIPMENT
*103614_EN*
OWNER'S MANUAL
for
Tractors
* REPAIR PARTS
* MAINTENANCE
1
Model Number
700272-2 Subframe
J-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BERCO 700272-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Bercomac BERCO 700272-2

Summary of Contents for Bercomac BERCO 700272-2

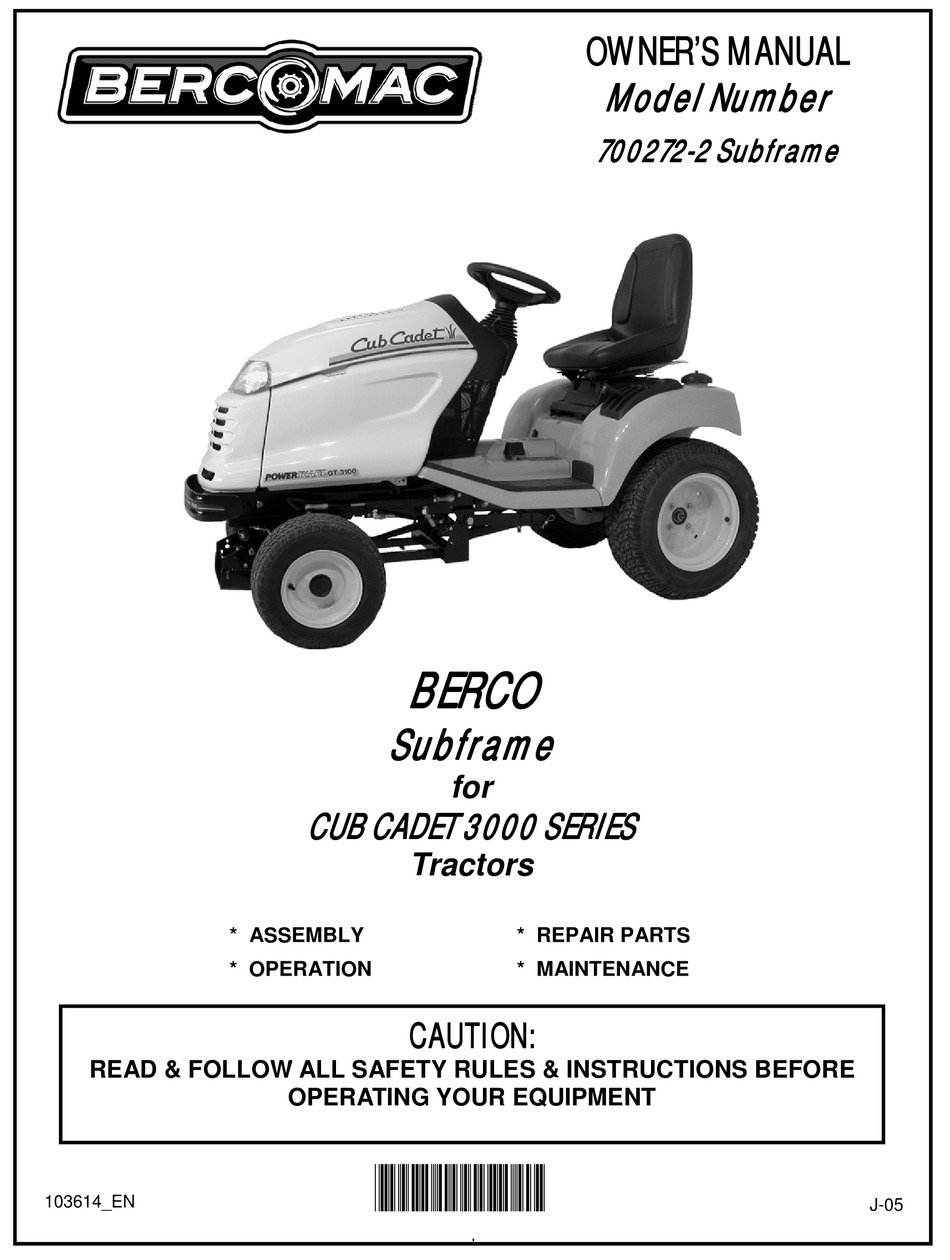

  • Page 1 OWNER’S MANUAL Model Number 700272-2 Subframe BERCO Subframe CUB CADET 3000 SERIES Tractors * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT *103614_EN* 103614_EN J-05...
  • Page 2 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE INTRODUCTION ..............................ASSEMBLY Tools Required ..........................Step 1: Subframe Installation ........................Step 2: Snowblower Installation ......................Step 3: Rotary Broom Installation ......................Step 4: Utility Blade Installation ....................... MAINTENANCE Maintenance .............................. Lubrication ..............................End of Season Storage ..........................DISMOUNTING Dismounting the Subframe ........................

  • Page 4: Introduction

    INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication.
  • Page 5 SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating.
  • Page 6 SAFETY PRECAUTIONS OPERATION: 13. Keep the accessory away from heat sources or flames. Do not put hands or feet near, under or inside rotating parts. MAINTENANCE AND STORAGE Exercise extreme caution when operating on or When cleaning, repairing or inspecting the vehicle crossing gravel drives, walks or roads.

  • Page 7: Assembly

    ASSEMBLY STEP 1 TOOLS REQUIRED: SUBFRAME INSTALLATION: Ratchet Wrench: 3/4’’, 1/2’’ IMPORTANT: TORQUE ALL BOLTS ACCORDING Socket: 3/4’’, 1/2’’ TO TORQUE SPECIFICATION TABLE (SEE TABLE CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER PARTS BREAKDOWN SECTION FOR PARTS IDENTIFICATION. NOTE: The mower deck must be removed before installing the subframe.
  • Page 8 ASSEMBLY Install the handle support (item 1) to the subframe (item 2) with two 5/16 x 3/4" hex bolts (item 3) and flange nuts (item 4). Tighten securely. Insert the plastic grommet (item 5) into the handle support. NOTE: The lever (item 6) has two sets of holes to be able to install the push tube.

  • Page 9: Step 2: Snowblower Installation

    ASSEMBLY STEP 2 WARNING SNOWBLOWER INSTALLATION: Refer to snowblower owner’s manual, parts breakdown TO PREVENT INJURIES: section for parts identification. Stop the motor. Apply parking brakes. WARNING Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental FOR YOUR SECURITY: starting.
  • Page 10 ASSEMBLY NOTE: This subframe is equipped with a helper spring for the lift mechanism. The tension on the spring must be released to be able to install or to dismount the attachments. Tension can be released on the spring when using the blade for example to scrape harder. Release the tension on the spring by lifting the hydraulic, remove the pin (item 2) and move the arm (item 3) towards the front.
  • Page 11 ASSEMBLY Install the handgrip (item 1) on the handle (item 2). Insert the handle through the handle support (item 3). Install the handle extension (item 4; included with the subframe) in the handle and secure with a 2.5 mm hair pin (item 5). Install the handle hook (item 6) on the rotation worm.

  • Page 12: Step 3: Rotary Broom Installation

    ASSEMBLY STEP 3 WARNING ROTARY BROOM INSTALLATION: Refer to rotary broom owner’s manual, parts TO PREVENT INJURIES: breakdown section for parts identification. Stop the motor. Apply parking brakes. WARNING Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental FOR YOUR SECURITY: starting.
  • Page 13 ASSEMBLY Release the tension on the spring by lifting the hydraulic, remove the pin (item 2) and move the arm (item 3) towards the front. Secure with a pin (item 2) and hair pin. CAUTION TO PREVENT INJURIES: Always raise the attachment to reduce the tension on the spring before applying or releasing tension on the helper spring.
  • Page 14 ASSEMBLY Lower the rotary broom to the ground. Adjust the extension guard (item 4) by screwing the bolt (item 1) so that it is parallel with the driveline. Tighten firmly. Be sure that the guard does not come into contact with the driveline when the rotary broom is raised.

  • Page 15: Step 4: Utility Blade Installation

    MAINTENANCE ASSEMBLY STEP 4 UTILITY BLADE INSTALLATION: Refer to blade owner’s manual, parts breakdown section for parts identification. WARNING FOR YOUR SECURITY: Read the blade owner's manual for safety precautions and rules. Follow the assembly and operation instructions. Release the tension on the spring by lifting the hydraulic, remove the pin (item 2) and move the arm (item 3) towards the front.
  • Page 16 ASSEMBLY Install the handgrip (item 2) on the handle (item 1). Insert the handle through the support (item 3) and onto the extension (item 4) as shown. Secure with a 2.5 mm hair pin (item 5). Insert the extension (item 4) into the control rod (item 6) and secure with a 2.5 mm hair pin (item 5).

  • Page 17: Maintenance

    MAINTENANCE MAINTENANCE END OF SEASON STORAGE a) Clean and repaint all parts from which the paint a) Check mounting bolts at frequent intervals for has worn. proper tightness to be sure the equipment is in safe working condition. b) Apply oil at all pivot points. b) Apply oil at all pivot points.

  • Page 18: Dismounting

    DISMOUNTING DISMOUNTING THE SUBFRAME: See attachment owner’s manual (Snowblower, Rotary broom and Blade) for dismounting instructions. WARNING TO PREVENT INJURIES: Stop the motor. Apply parking brakes. Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental starting.

  • Page 19: Torque Specification Table

    TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads.

  • Page 20: Subframe

    PARTS BREAKDOWN SUBFRAME 700272-2...
  • Page 21 PARTS LIST SUBFRAME 700272-2 Ref. Qty. Part # English description Description française Réf. Qté. Pièce # 1 Subframe Sous-châssis 102906 2 Pivot support Support de pivot 103345 3 Lift bracket Support de relevage 102902 4 Lever Levier 102907 5 Handle support Support de manivelle 102899 6 Push tube...

  • Page 22: Attachments

    INSTRUCTION BOOKLET MODEL NUMBER 700433 BERCO Half drive line kit Northeast PTO Snowblower Installed on CUB CADET 3000 SERIES TRACTOR CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS IN YOUR OWNER’S MANUAL FOR THE ROTARY BROOM AND SUBFRAME BEFORE OPERATING ANY EQUIPMENT J-09...
  • Page 23 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
  • Page 24 ASSEMBLY WARNING DANGER All Contact with ROTATING DRIVELINE For your security, read the subframe and can cause death. snowblower owner's manual safety precautions and rules. KEEP AWAY Follow the assembly and operation instructions. DO NOT OPERATE WITHOUT: P L E A S E F O L L O W T H E S E -All driveline, tractor &...
  • Page 25 ASSEMBLY Install the new male hitch (item 2) from this kit (it is longer) with four hex bolts 7/16" n.c. x 1 1/4" (item 3; previously removed) and nylon insert lock nuts 7/16" (item 4; supplied with the kit). Tighten firmly. Secure the tension bar (item 5) with two hex bolts 5/16"...
  • Page 26 PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES HALF DRIVE LINE KIT/ ENSEMBLE DEMI ARBRE À CARDAN 700433...
  • Page 27 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Male hitch Attache mâle 104502 2 Half telescopic driveline Demi arbre à cardan 104503 3 Extension guard Garde d'extension 104558 4 Rubber extension Ext.
  • Page 28 ATTACHMENTS ROTARY BROOM 54" UTILITY BLADE #700416 SNOWBLOWER HYDRAULIC ANGLING KIT #700318 /#700316-3 with polypropylene brush. #700400 48’’ Mounts on the same subframe as the F i t s s a m e s u b f r am e Fits on same subframe as rotary snowblower &...
