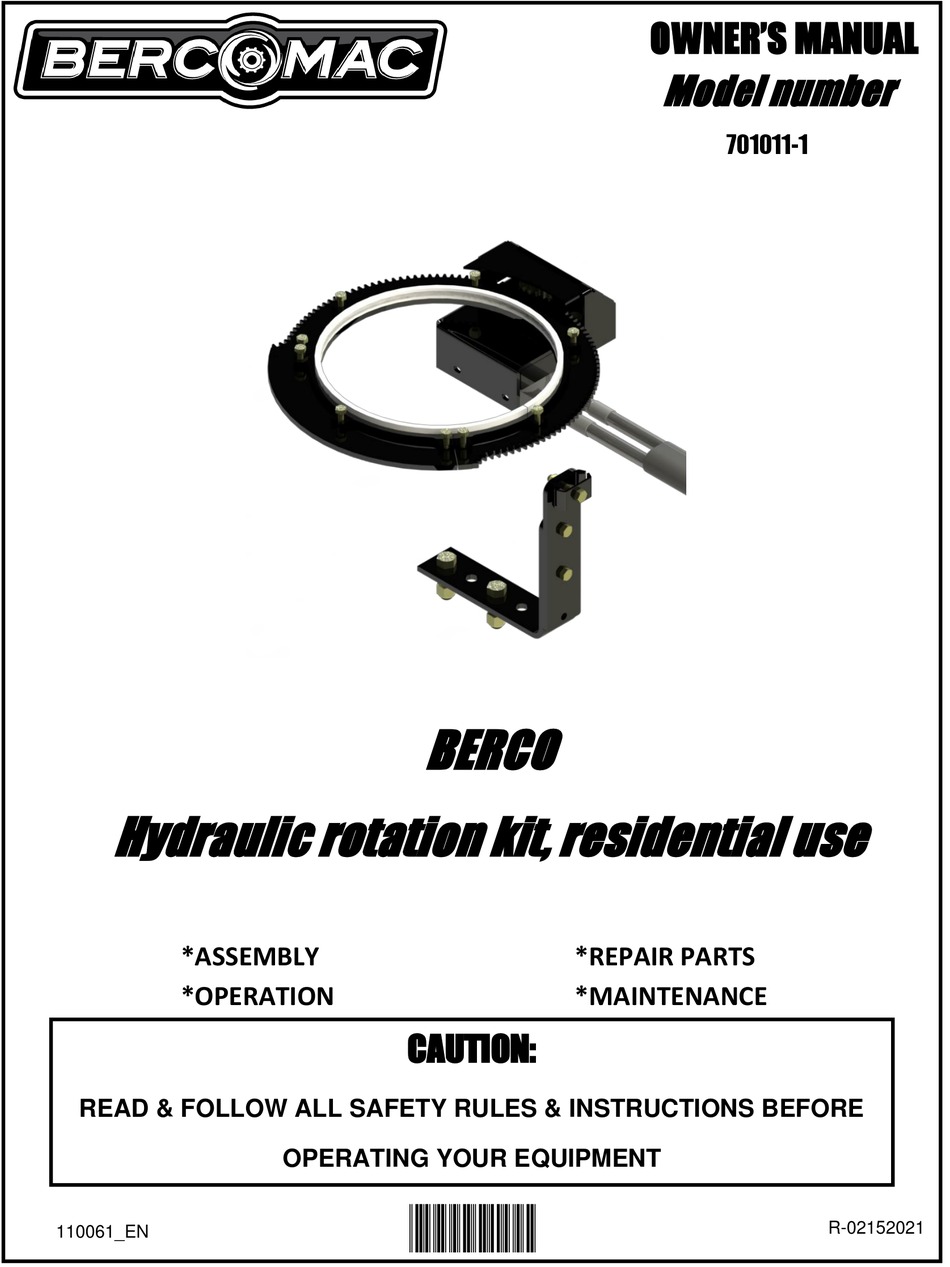

OWNER’S MANUAL Model number 701011-1 700981BER BERCO Hydraulic rotation kit, residential use *ASSEMBLY *REPAIR PARTS *OPERATION *MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT 01100610 R-02152021 110061_EN...
Introduction Introduction To the purchaser This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. All photographs, illustrations and information in the manual may not necessarily depict the actual models or attachments, but are intended for reference only and are based on the latest product information available at the time of publication.
Introduction Important safety information Safety alert symbol/Signal words/Safety messages These are common practices that may or may not be applicable to the product described in this manual. SAFETY ALERT SYMBOL THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS MANUAL THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH.
Important safety information Safety decals Read and understand all instructions/explanations noted on decals or/and in the “Safety Decals” section • Keep the safety decals clean and visible • For decal location see part list section of this manual • Replace decals if decals are missing or illegible •...

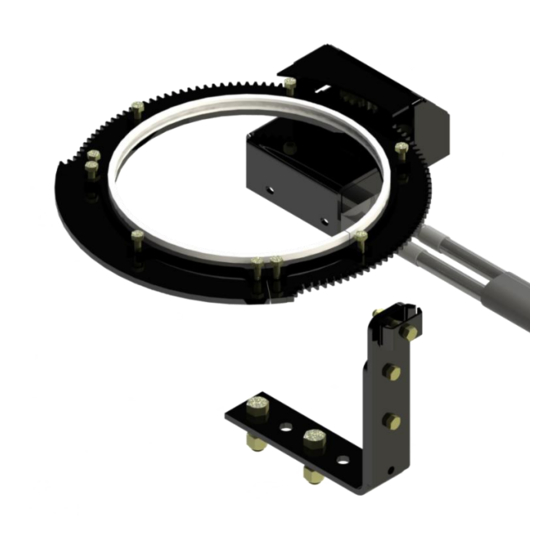

Assembly & initial set-up Assembly & initial set-up General assembly instructions • Unless otherwise specified, torque all bolts to “torque specification table” (see table of content for page number) • Refer to parts breakdown section for part identification. Accessory assembly Installation of rotation rings: A.
Assembly & initial set-up C. Remove the 1/4 "nylon insert lock nuts (item a) and 5/16" flat washers (item a) that were preinstalled on the snowblower. Leave the 1/4 "x 3/4" carriage bolts in place. Installation of the hoses support A.
Assembly & initial set-up (item 5) as shown, using the 5/16’’ x 1 3/4’’ bolts (item 4), sleeve (item 6), flat washer (item 7) and the nylon insert lock nut 5/16’’ (item 8). D. Secure the hydraulic hoses with the attaching Preparation of hydraulic hoses plates (item 1) on the support extension as You need to buy the appropriate quick connect matching...
Page 9
Assembly & initial set-up DANGER To avoid serious injury or death: • Escaping hydraulic oil under pressure can have sufficient force to penetrate skin, causing serious personal injury. If injured by escaping fluid, obtain medical treatment immediately. • Wear protective gloves and safety glasses or goggles when working with hydraulic system.
Operating instructions Operating Instructions Controls and display CHUTE ROTATION: Use the tractor’s hydraulic joystick to turn the chute from one side to the other. If the chute does not turn in the desired direction, switch the hydraulic hoses on the tractor.
Torque specification table Torque specification table TO BE USED WHEN A TIGHTENING TORQUE IS NOT SPECIFIED IN THE TEXT • The following table shows the minimum torque requirement • Maximum is 15% more than the minimum (example: min100 Nm -> max is 115Nm) •...
NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
