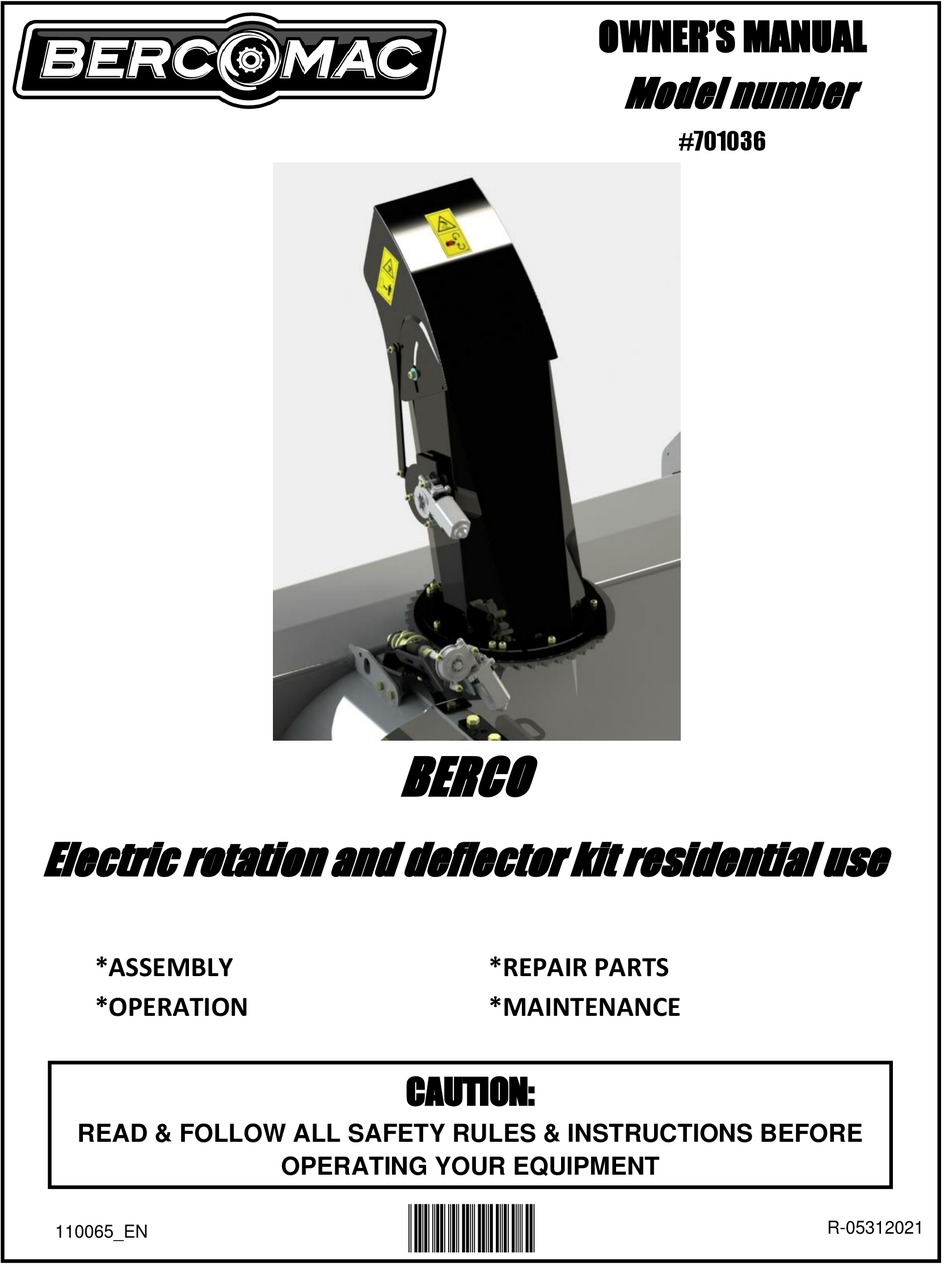

OWNER’S MANUAL Model number #701036 700981BER BERCO Electric rotation and deflector kit residential use *ASSEMBLY *REPAIR PARTS *OPERATION *MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT 01100650 R-05312021 110065_EN...
Table of contents Table of contents Introduction ..................................1 Important safety information .............................. 2 Safety alert symbol/Signal words/Safety messages ......................2 Assembly and initial set-up ..............................3 General assembly instructions ............................3 Accessory assembly ................................. 3 Installation of rotation rings: ............................3 Installation of the electric motor ..........................
Introduction Introduction To the purchaser This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. All photographs, illustrations and information in the manual may not necessarily depict the actual models or attachments, but are intended for reference only and are based on the latest product information available at the time of publication.
Important safety information Important safety information Safety alert symbol/Signal words/Safety messages These are common practices that may or may not be applicable to the product described in this manual. SAFETY ALERT SYMBOL THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS MANUAL THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH.
Assembly & initial set-up Assembly and initial set-up General assembly instructions On the left side of the snowblower, install the other • Unless otherwise specified, torque all bolts to rotation half-ring (item 7) under the chute as shown. “torque specification table” (see table of content for page number) Secure the chute and rotation half ring in place with •...
Assembly & initial set-up Installation of the electric motor Install the electric motor assembly with worm Insert the rotation bushing (item 1) at each end of (item 1) on the frame of the snowblower in the the rotation worm (item 2) until they are against location shown.
Page 7
Assembly & initial set-up B. Cut out and secure the drilling template (item1) D. Insert three hex bolts. 1/4"n.c. x 2" (item 1) in the with adhesive tape on the left side of the chute Ø9 / 32" holes in the chute. Insert the three 5/16" using the marks shown (6"...
Assembly & initial set-up Secure the arm (item 1) on the chute head (item If the light on the tester lights up, turn the ignition key to B) using the carriage bolt 1/4'' n.c. x 1'' (item 2), the OFF position. If the light turns off, the wire for four 5/16'' flat washers (item 3) and a nylon Accessory has been identified.
Page 9
Assembly & initial set-up Connect the wires on the battery CAUTION FOR YOUR SAFETY: Read and follow the safety precautions for the battery in the vehicle’s owner’s manual. Connect the relay wires(item A) and the vehicle’s wires on the vehicle's battery. •...
Page 10
Assembly & initial set-up NOTE: It is recommended to place the wire connectors as close as possible to the subframe. Secure the wires in an adequate place in order to separate the accessory from the vehicle when storing. Connect the wires to the electric motors. The longest wires are connected to the deflector motor.
Operating instructions Operating instructions Controls and display CHUTE ROTATION Use the joystick on the control box from left to right or from right to left to turn the chute. CHUTE DEFLECTION Use the joystick on the control box up and down or up and down to adjust the angle of the deflector.
Troubleshootig Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Electric chute motor does Overheating of the motor. These motors are equipped with an internal not work. protector. Wait 10 minutes before using. Frozen motor or chute. Slap the chute or wiggle from side to side. Defective control box or broken Replace control box or wire harness.
Torque specification table Torque specification table TO BE USED WHEN A TIGHTENING TORQUE IS NOT SPECIFIED IN THE TEXT • The following table shows the minimum torque requirement • Maximum is 15% more than the minimum (example: min100 Nm -> max is 115Nm) •...
NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
