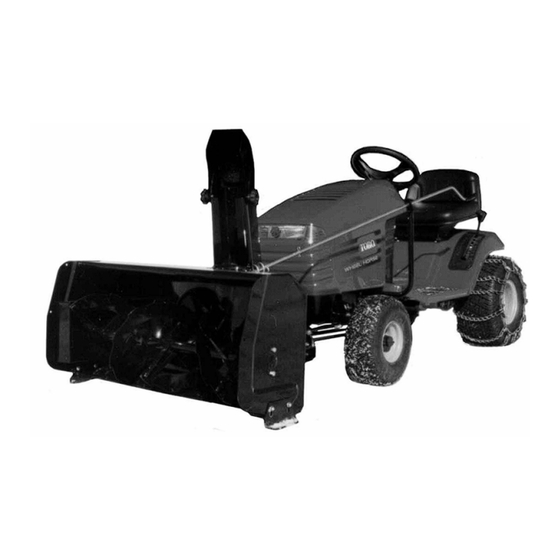

- Page 1 OWNER’S MANUAL Model Number 79974 700304-1Subframe 700303-1 Drive Mechanism BERCO COMPACT MOUNTING KIT TORO HXL 1638 Tractors * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT F-11 104281...
- Page 2 LIMITED ONE YEAR ON BERCO TRACTOR ATTACHMENTS For one year from date of purchase, Bercomac Limitée will repair or replace free of charge at Bercomac's option, any parts which are defective as a result of defective materials or faulty workmanship.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................. ASSEMBLY Step 1: Tractor Preparation ........................Step 2: Subframe Preparation ........................ Step 3: Subframe Installation ......................... Step 4: Drive Mechanism Installation ..................... Step 5: Snowblower Installation ......................Rotary Broom Installation ......................Blade Installation ........................ -
Page 4: Introduction
INTRODUCTION TO THE PURCHASER This new attachment was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the tractor and attachment. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the tractor and attachments before operating. - Page 6 SAFETY PRECAUTIONS 4. Use only attachments approved manufacturer (such wheel chains, WHENEVER YOU SEE THIS SYMBOL counterweights, cabs). You must use 100 lbs. of rear counterweight for better traction and a greater stability at all times when using an attachment that is installed on the front of a tractor.
-
Page 7: Assembly
ASSEMBLY STEP 1: TRACTOR PREPARATION: NOTE: You must remove the mower deck when you install the subframe. WARNING TO PREVENT INJURIES: Stop the motor. Apply parking brake. Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental start- ing. - Page 8 ASSEMBLY Install the lift arm (item 1) by inserting it in the tube (item 2). Secure in place with two 3/8 x 3/4" hex bolts (item 3) and flange nuts. Tighten firmly. Install lift arm Install the push bar (item 1) by inserting it in the sleeve (item 2) welded on the pivot support (item 3).
-
Page 9: Step 3: Subframe Installation
ASSEMBLY STEP 3 SUBFRAME INSTALLATION: Slide the subframe (item 1) under the tractor between the front and back wheels (from the left side). Lift the the back part of the subframe and hook onto the sleeves (item 2). Lift the front part of the subframe and attach it to the support (item 3) with two 1/2 x 2"... - Page 10 ASSEMBLY Lift the drive mechanism (item 5) under the subframe. Place the V-belt (item 1) around the tractor’s motor pulley then around the drive mechanism pulley (item 2). Secure the drive mechanism in place with the pins (item 3) and secure in place 2.5 mm hair pins (item NOTE: Check to make sure the drive mechanism works well.
-
Page 11: Step 5: Snowblower Installation
ASSEMBLY STEP 5 WARNING SNOWBLOWER INSTALLATION: Refer to Snowblower owner’s manual, parts breakdown TO PREVENT INJURIES: section for parts identification. Stop the motor. Apply parking brake. WARNING Remove the ignition key. Disconnect the wire from the spark plug(s) and FOR YOUR SECURITY: keep away from spark plug(s) to prevent accidental Read the Snowblower’s owner's manual for starting. - Page 12 ASSEMBLY VERIFY BELT ROUTING: -Lower the snowblower to the ground and let it run for a few seconds under supervision. -Disengage the snowblower and stop the engine. -Remove the belt guard. -Check the belts to make sure they are well inserted on the pulleys and have not flipped on their sides in the pulleys and that they do not touch the belt guides.
-
Page 13: Rotary Broom Installation
ASSEMBLY ROTARY BROOM INSTALLATION: WARNING Refer to Rotary Broom owner’s manual, parts breakdown section for parts identification. TO PREVENT INJURIES: Stop the motor. WARNING Apply parking brake. Remove the ignition key. Disconnect the wire from the spark plug(s) and FOR YOUR SECURITY: keep away from spark plug(s) to prevent accidental Read the Rotary Broom owner's manual for starting. - Page 14 ASSEMBLY Insert handgrip on the handle. Insert the handle (item 1) through the support (item 2) as shown. Install the handle on the control rod (item 3) as shown and secure with a 2.5 mm. hair pin (item 4. Install handle VERIFY TIRE PRESSURE: Check and adjust tractor tire pressure as follows: Front tires:...
-
Page 15: Blade Installation
ASSEMBLY UTILITY BLADE INSTALLATION: Refer to Utility Blade owner’s manual, parts breakdown section for parts identification. WARNING FOR YOUR SECURITY: Read the Utility Blade owner's manual for safety precautions and rules. Follow the assembly and operation instructions. Attach the utility blade to the subframe as shown. Make sure the blade is pushed in until locked into place by the springs (item 1). -
Page 16: Maintenance & Dismounting
MAINTENANCE & DISMOUNTING MAINTENANCE: END OF SEASON STORAGE: a) Verify the mounting bolts at frequent intervals for a) Clean and repaint all parts from which paint has proper tightness in order to prevent costly repairs. worn off. Make sure that your equipment is in safe working condition. -
Page 17: Torque Specification Table
TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads. -
Page 18: Subframe
PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES SUBFRAME / SOUS-CHÂSSIS... - Page 19 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Subframe Sous-châssis 103254 2 Pivot support Support de pivot 102981 3 Pin Goupille 102976 4 Hair pin 3mm Goupille à ressort 3mm 102617 5 Heat shield Pare-chaleur...
-
Page 20: Drive Mechanism
PARTS BREAKDOWN / NOMENCLATURE DES PIÈCES DRIVE MECHANISM / MÉCANISME D’ENTRAÎNEMENT... - Page 21 PARTS LIST / LISTE DES PIÈCES Ref. English description Description française Qty. Part # Réf. Qté. Pièce # 1 Drive frame Châssis d'entraînement 103266 2 Flange washer Rondelle à bride 102081 3 Idler arm Bras de tension 103101 4 Flat washer 7/16" hole Rondelle plate 7/16"...
-
Page 22: Attachments
ATTACHMENTS SNOWBLOWER ROTARY TILLER #700312 #700210 40" #700211 44" Mounts to the rear of lawn & garden UTILITY BLADE #700266 #700255 40’’ tractors 14 to 25 HP. Comes complete #700300 48’’ with drive & manual lift mechanisms Mounts on the same subframe as the Fits on same subframe as rotary &...
