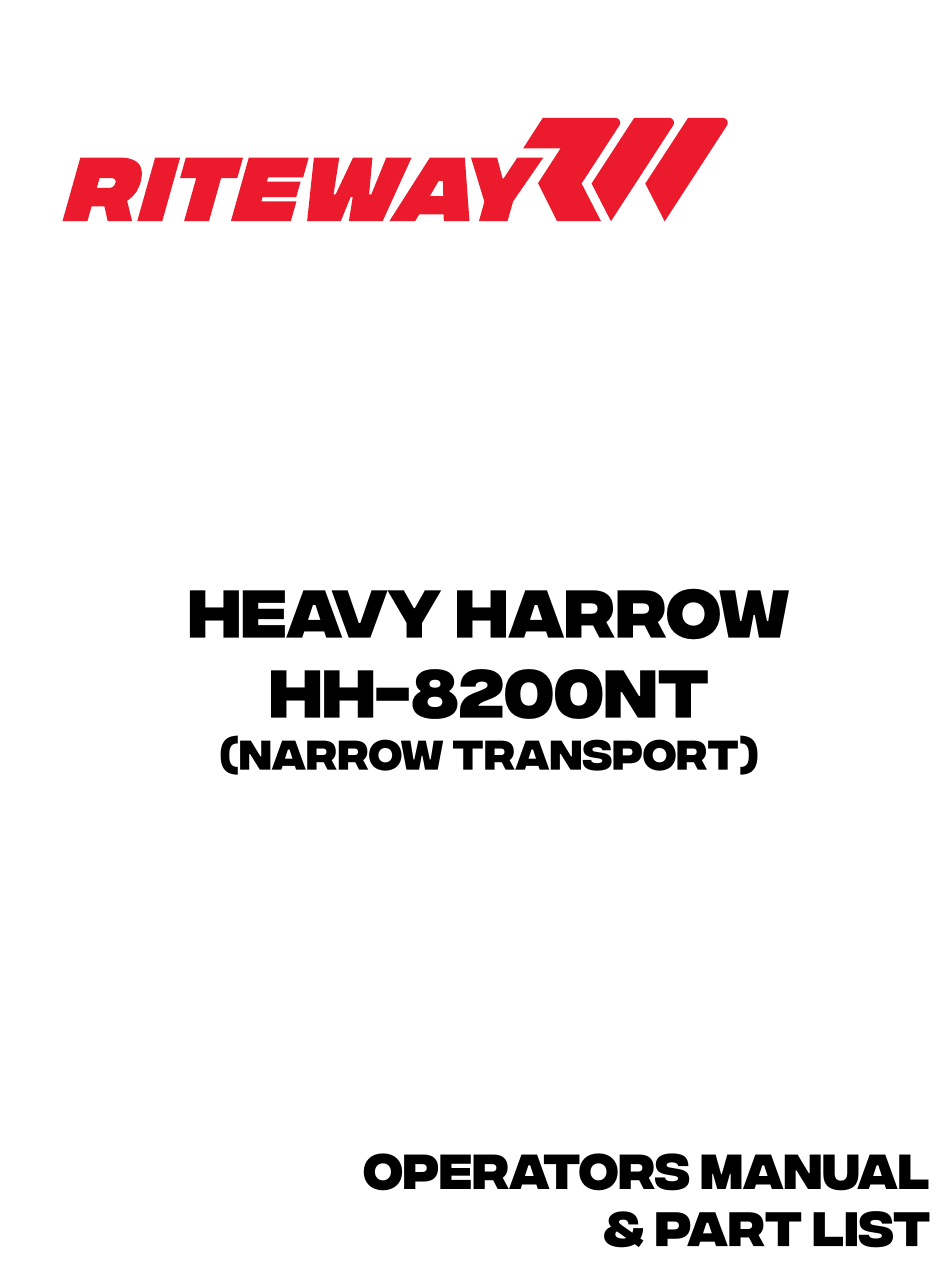

RITEWAY HH-8200NT Operator's Manual

Heavy harrow
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation & Maintenance
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HH-8200NT and is the answer not in the manual?

Questions and answers

Related Manuals for RITEWAY HH-8200NT

Summary of Contents for RITEWAY HH-8200NT

  • Page 1 Operation & Maintenance Manual...
  • Page 3 – Wing lift/lower – Tine angle adjust – Wing wheel pivot • IMPORTANT: Ensure the center harrow section has been rotated forward after shipping and bolted in place or damage to the unit may result. • Find a location that is as level as possible. Position harrow in line with tractor. •...
  • Page 5 PAGE SECTION 1 INTRODUCTION MANUAL & EQUIPMENT DETAILS PRE-DELIVERY INSPECTION SPECIFICATIONS 5, 6 SERVICE & WARRANTY POLICY SAFETY RECOMMENDATIONS 9, 10 DECAL LOCATIONS 11-13 MAINTENANCE 14-21 OPERATING INSTRUCTIONS GRADE CHART TORQUE CHART PAGE SECTION 2 2-33 PARTS 34-35 WHEEL HUBS 36-41 HYDRAULICS 42-51...
  • Page 8 HH-8200NT. We also recommend that you take care of this manual so it will be available for future reference. Should your manual become lost or de- stroyed a new copy can be obtained from your Rite Way Manufacturing dealer.
  • Page 9 Unit Model Number HH-8200NT Manual Revision Number Manual Revision Date March 9, 2021 Manual Serial Number Range 21-0079 and up The area below is provided for the owner / end-user to make notes regarding the equipment. Serial Number of Unit...
  • Page 10 Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.) Inspect paint, decals and general appearance of unit. Verify that the owners manual is in the manual storage tube. Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit Verify that jacks are with the unit and function properly.
  • Page 11 • 40° to 85° Hydraulic Tine Angling From Tractor Cab • 9/16" x 28" Harrow Tines • Auto Fold With Rite Way Hydraulic Pivot Wheel System • 5 Bars - 18" (460mm) Spacing Between Rows- 2-3/8" Diameter Pipe • 15 Double Tines; APPROX. 2.75" Tine Spaces (6-1/2' Harrow) •...
  • Page 12 Rite Way Manufacturing Co. Ltd. (hereafter referred to as Rite Way) warrants each new machine to be free from defects in materials and workmanship for a period of one (1) year from date of purchase under normal agricultural use and service. In addition, Rite Way will supply at no charge, (F.O.B Rite Way Factory) any part that has failed within the 2nd year.
  • Page 13 1. All claims must be handled through a dealer / distributor. All claims must be submitted on a proper- ly completed claim form within 30 days of the date of repair. 2. A warranty registration claim form must be on file at Rite Way Mfg. to validate a warranty claim. 3.
  • Page 14 11. Maximum speed while transporting the HH-8200NT is 25 mph (40 km/h). 12. Ensure that the HH-8200NT frame is lowered to the ground before doing any work on machine. NOTE: If it is necessary to work on machine with the drawbar raised, ensure that cylinders are locked in position using the lock pin.
  • Page 17 060-0121 Rite Way Mfg. (Large Decal) 060-0038 Attention - Ensure That All Cylinders Are Retracted... 060-0125 HH-8200NT - (3” x 11”) 060-0126 060-0009 Amber Reflector (3 x 2) 060-0022 Red Reflector (3 x 2) 060-0046 Grease Every 8 Hours 060-0015 Important - Block Wheels...
  • Page 18 • Repack the wheel hubs after the first 500 kilometres of travel ; then yearly thereafter. • Visually inspect the wheel bolts for tightness each day. Torque to 110 ft lbs. (149 Nm) after the first few hours of operation and frequently thereafter. •...
  • Page 19 Grease should be applied to both sides of the machine.
  • Page 20 Grease should be applied to both sides of the machine.
  • Page 21 • Clean hydraulic hose ends prior to coupling with tractor hydraulic system. • The HH-8200NT requires three sets of hydraulic remotes to operate the machine, further detailed in this section. • Move the tractor into position where the pin can be inserted into the draw bar hitch (fig. 1).
  • Page 22 1. Hook up harrow according to prior instructions. 2. Ensure that the safety pins are in transport position before towing on the road. 3. When entering the field from transport mode, find a level location. 4. Position the machine in-line with the tractor and bring the tractor to a full stop. 5.
  • Page 23 7. From the cab of the tractor, rotate pivot wheels to 45° ( hydraulic remote) (fig. 4). 8. Slowly back up the tractor to unfold (fig. 5). 9. Once wings are nearly fully unfolded, rotate pivot wheels to 90°.
  • Page 24 10. Ensure that the draft arms have pushed the swing arms into the lock mechanism (fig. 6). 11. Carefully lower the harrow wing halfway to the ground ( hydraulic remote). Ensure that the swing arms are both still locked in place. 12.
  • Page 25 1. Stop the tractor before attempting to fold up the harrow toolbar. 2. Lift up the wings by activating the hydraulic remote. Ensure the auto fold lock opens as the har- rows are lifted to the raised position (fig. 8). 3.
  • Page 26 1. Hitch unit up to tractor and unfold into field position on flat ground 2. Ensure the main lift cylinders are fully stoked outwards (measurement 60” eye to eye with full tine aggression) 3. Measure from the top of tubing on one of the lift arms to the ground (fig.
  • Page 27 • The Tine sections are fully adjustable based on your preferences and tine wear. • Levelling: • Before leveling the sections ensure the lift arms are properly leveled (Page 19) • To level the section relocate the tine section pins in holes 1-3 (fig 12). •...
  • Page 28 1. Ensure that machine is in transport position 2. Put all lock pins into place 3. Block the A-frame tires, front and back, before disconnecting from the tractor 4. Apply lifting pressure at stubs on the wings with parking jack(s) 5.
  • Page 29 Min. Proof Min. Tensile Min. Yield Grade Size Range Specification Material Strength Strength Strength Identification (inches) (psi) (psi) (psi) Marking Low or Medium 1/4 to 3/4 55,000 74,000 57,000 Grade 2 Carbon Steel 7/8 to 1-1/2 33,000 60,000 36,000 Medium Carbon 1/4 to 1 85,000 120,000...
  • Page 30 Grade 2 Grade 5 Grade 8 Nominal Tightening Clamping Tightening Clamping Tightening Clamping Thread Size Load Torque Load Torque Load Torque Coarse Thread 1/4-20 1,300 lbs 65 in-lbs 2,000 lbs 100 in-lbs 2,850 lbs 143 in-lbs 5/16-18 2,150 lbs 134 in-lbs 3,350 lbs 210 in-lbs 4,700 lbs...
  • Page 35 423-0001 PP1-301VH PERFECT HITCH c/w PP1-301VH 526-1656 BOLT, 1-8 UNC - 7, GR.5, YELLOW ZINC PLATED 550-5316 WASHER, FLAT, 1" - SAE, GR.5, YELLOW ZINC PLATED 526-6109 NUT, STOVER LOCK, 1-8 UNC, GR.5, YELLOW ZINC PLATED 409-9050 SAFETY CHAIN 20,000LB, CLEVIS MOUNT, NEW STYLE 526-1616 BOLT, 1-8 UNC - 2, GR.5, YELLOW ZINC PLATED 526-6109...
  • Page 36 NOTE: HH-8200 pictured, parts unique to HH-8200NT denoted in BOLD...
  • Page 37 020-0105 16.5 - 16.1 8 BOLT TIRE AND WHEEL ASS’Y 120-1160 8200NT UNIVERSAL CENTRE AXLE 120-1246 812 HUB & SPINDLE ASSEMBLY 120-1230 CENTRE AXLE STUB ASSEMBLY 204-5585 W14C x 16.1" - 8 HOLE WHEEL, 3/8" OFFSET 205-1192 16.5 X 16.1 6 PLY TIRE 105-0364 8100NT A-FRAME WELDMENT, W TIE BAR 526-0932...
  • Page 38 NOTE: HH-8200 pictured, parts unique to HH-8200NT denoted in BOLD...
  • Page 39 030-5985 TIE ROD CYLINDER, 4" BORE X 24" STROKE, 1.5” ROD, 36" RL 105-1247 8200NT CENTRE BAR WELDMENT (REVISED ANGLE) 105-1328 HYD. VALVE LOCK PIN WELDMENT (HOLLOW) 112-0509 HYD. LOCK LUG WELDMENT 113-0031 1-3/4 X 1-3/4 KNUCKLE 123-3204 1-3/4 X 11-1/4 KNUCKLE LOCK PIN 409-9057 HYD.
  • Page 40 NOTE: HH-8200 pictured, parts unique to HH-8200NT denoted in BOLD...
  • Page 41 Varies WING - SEE PAGE 16 Varies WING - SEE PAGE 16 105-1259 DRAFT ARM PULL LUG PIN, EXTENDED (1-1/4") Varies LOCK BOX - SEE PAGE 16 Varies LOCK ARM - SEE PAGE 16 112-0507 DRAFT ARM CLEVIS WELDMENT, (1-5/16") Varies DRAFT ARM - SEE PAGE 16 112-0608...
  • Page 42 NOTE: HH-8200 pictured, parts unique to HH-8200NT denoted in BOLD...
  • Page 43 205-1193 12.5 X 15 TIRE - 8 PLY TIRE 205-1180 11 X 15 TIRE - 8 PLY TIRE 204-5586 WHEEL RIM 15x10x10 8 BOLT 204-5565 WHEEL RIM 15x8x6 6 BOLT 020-0142 12.5L15 15x10x10 8 BOLT TIRE AND WHEEL ASS’Y 020-0144 11L15 15x8x6 6 BOLT TIRE AND WHEEL ASS’Y 030-5979 2 X 12 HYDRAULIC CYLINDER, 22.25"...
  • Page 45 030-5904 2 X 4 CYL - 112 BODY 105-1162 HARROW PIN, 1 X 3 3/8 USABLE LG 105-1163 HARROW PIN, 3/4 X 4 3/4 USABLE LG 105-1164 LUG, EXT SPRING KIT 105-1165 LINK ARM, FLOATING 105-1169 LINK ARM, DRIVEN 105-1258 CROSS BAR, SHORT 105-1250 HELPER CYLINDER CLEVIS WELDMENT...
  • Page 47 105-1162 HARROW PIN, 1 X 3 3/8 USABLE LG 105-1163 HARROW PIN, 3/4 X 4 3/4 USABLE LG 105-1164 LUG, EXT SPRING KIT 105-1165 LINK ARM, FLOATING 105-1169 LINK ARM, DRIVEN 105-1182 LIFT ARM, WING 105-1183 CROSS BAR, LONG 105-1258 CROSS BAR, SHORT 403-0282 SPRING, EXTENSION, 3"...
  • Page 49 105-1344 LIFT ARM, PROFILED, EXTENDED 160-0728 LINK, IDLER W/ BUSHINGS 160-0729 LINK, DRIVEN W/ BUSHINGS 105-1343 HARROW PIN, ø1 X 4 5/8 USABLE LG SPRING, EXTENSION, 3" OD, 0.531" WIRE, STD MACHINE HOOKS 403-0275 - 18" 546-0219 BOLT, SPADE, 5/8-11 NC, GR. 5 - 4" LG 550-5310 WASHER, FLAT, 5/8"...
  • Page 51 105-1342 LIFT ARM, PROFILED 160-0728 LINK, IDLER W/ BUSHINGS 160-0729 LINK, DRIVEN W/ BUSHINGS 105-1343 HARROW PIN, ø1 X 4 5/8 USABLE LG SPRING, EXTENSION, 3" OD, 0.531" WIRE, STD MACHINE HOOKS 403-0275 - 18" 546-0219 BOLT, SPADE, 5/8-11 NC, GR. 5 - 4" LG 550-5310 WASHER, FLAT, 5/8"...
  • Page 52 HH-8245 204” 26-3/4” 63-1/2” 122-13/16’ 183-3/16” HH-8255 258” 39-5/16” 94-11/16” 173-13/16” 229-3/16” HH-8268 340” 43-15/16” 99-5/16” 171-9/16” 189-15/16” 262-15/16” 317-11/16” HH-8278 388” 39-5/16” 94-11/16” 173-13/16” 229-3/16” 308-5/16” 363-11/16” HH-8290 462” 30-7/8” 49-1/4” 120-13/16” 176-3/16” 255-5/16” 310-11/16” 389-13/16” 445-3/16” HH-8240 204” 26-3/4”...
  • Page 53 NOTE: Detail view on page 8 105-1302 WING, 8200, LEFT, 40’/45’ 204” (17’ - 0”) 105-1303 WING, 8200, RIGHT, 40’/45’ 40’ 112-0600 DRAFT ARM, 40’ 137” 112-0214 LOCK BOX, 40’, 50’ 35 - 7/16” (Long edge) 112-0216 LOCK ARM, 40’, 50’ 33 - 1/4”...
  • Page 54 160-0582 11' JUMBO HARROW FRAME ASSEMBLY 105-1070 11' FRONT CROSS MEMBER, BOLT ON 105-1071 11' FRONT CROSS MEMBER, BOLT ON 526-6105 NUT, STOVER LOCK, 1/2-13 UNC, GR.5, YELLOW ZINC PLATED 542-0812 CARRIAGE BOLT, 1/2-13 UNC - 1.5, GR.5, YELLOW ZINC PLATED 839-1268 HARROW FRAME RAIL, UNIVERSAL...
  • Page 56 160-0584 HARROW SECTION, 5-BAR, 11' Varies CYLINDER, REPHASING - SEE CYLINDERS SECTION 105-0085 HARROW PIPE U-BOLT CLAMP WLD. 1/2" x 3-1/2" 112-0132 TINE ADJUSTMENT WELDMENT 116-8002r1 HARROW ADJUSTING LINKAGE 116-8003 11' HARROW SECTION PIPE 1, 24-1/2” 116-8004 11' HARROW SECTION PIPE 2, 15-3/4” 116-8007 11' HARROW SECTION PIPE 3, 12-3/4”...
  • Page 58 160-0584 HARROW SECTION, 5-BAR, 11' 105-1333 5 BAR, PIPE 1, 11' UNIVERSAL PIPE 105-1334 5 BAR, PIPE 2, 11' UNIVERSAL PIPE 105-1335 5 BAR, PIPE 3, 11' UNIVERSAL PIPE 105-1336 5 BAR, PIPE 4, 11' UNIVERSAL PIPE 105-1337 5 BAR, PIPE 5, 11' UNIVERSAL PIPE 404-0010 2-3/8 ID X 26 HARROW TINE 545-0015...
  • Page 60 160-0585 HARROW SECTION, 5-BAR, 6-1/2' 105-1260 5 BAR, PIPE 1, 6-1/2' 105-1261 5 BAR, PIPE 2, 6-1/2' 105-1262 5 BAR, PIPE 3, 6-1/2' 105-1331 5 BAR, PIPE 4, 6-1/2' 105-1332 5 BAR, PIPE 5, 6-1/2' 116-8002r1 HARROW ADJUSTING LINKAGE 404-0028 9/16"...
  • Page 61 FRONT LOCATION ON HARROW PIPES REAR 112-0595 Universal Tine Retainer Clip Weldment 839-1832 Tine Retainer, 5 Bar 526-6105 1/2” Stover Lock Nut, NC, Gr.5, Pltd. 545-0015 1/2” x 3-3/4” High Harrow Head Bolt, NC, Gr.5, Pltd.
  • Page 62 526-6103 NUT, STOVER LOCK, 3/8-16 UNC, GR.5, YELLOW ZINC PLATED 526-6105 NUT, STOVER LOCK, 1/2-13 UNC, GR.5, YELLOW ZINC PLATED 550-5308 WASHER, FLAT, 1/2" - SAE, GR.5, YELLOW ZINC PLATED 526-0812 BOLT, 1/2-13 UNC - 1.5, GR.5, YELLOW ZINC PLATED VARIES OUTER MOST 11’...
  • Page 63 417-0019 RED WARNING LIGHT C/W HARDWARE 417-0018 AMBER WARNING LIGHT C/W HARDWARE 424-0001 SLOW MOVING SIGN (SMV) 424-0002 SLOW MOVING SIGN SPADE 526-0406 BOLT, 1/4-20 UNC - 0.75, GR.5, YELLOW ZINC PLATED 526-6102 NUT, STOVER LOCK, 1/4-20 UNC, GR.5, YELLOW ZINC PLATED 526-6105 NUT, STOVER LOCK, 1/2-13 UNC, GR.5, YELLOW ZINC PLATED 526-6204...
  • Page 64 105-1345 JACK MOUNT WELDMENT, PROFILED LIFT ARM 417-0018 AMBER WARNING LIGHT C/W HARDWARE 417-0019 RED WARNING LIGHT C/W HARDWARE 420-0168 5000lb. 20" SQUARE SIDEWIND JACK 20.1"RL 424-0001 SLOW MOVING SIGN (SMV) 526-0406 BOLT, 1/4-20 UNC - 0.75, GR.5, YELLOW ZINC PLATED 526-6105 NUT, STOVER LOCK, 1/2-13 UNC, GR.5, YELLOW ZINC PLATED 526-6109...
  • Page 65 423-0005 Base Hitch (PP1-301VH) 423-0006 Clevis (PP1-208VR-10) 423-0019 Neoprene Cushion (PP1-205H) 423-0017 Top Plate Perfect Hitch (PP1-302V) 423-0018 V-Block (PP1-203VR) 526-1224 3/4” x 3” Capscrew, NC, Gr.5, Pltd. 526-6107 3/4” Stover Lock Nut, NC, Gr.B, Pltd. 526-1241 3/4” x 5-1/2” Capscrew, NC, Gr.5, Pltd. The sliding V-block has a polyurethane cushion which is made to flex.
  • Page 66 NOTE: 812 Hub & spindles are used on ALL center frames. If 12.5Lx15 tires are used on the wings, 812s are used throughout the machine. 203-6044 812 Spindle, Ø2-1/2” X 11-3/4” Long 200-6011 812 Hub (complete) 201-6016 Outer Cup LM2720 201-6017 Inner Cup 3720 202-6013...
  • Page 67 NOTE: 618 Hub & spindles are used on wings with 11Lx15 tires ONLY 203-6021 618 Spindle, Ø2-1/2” X 14-1/4” Long 200-6009 618 Hub (complete) 201-5523 Outer Cup (LM48510) 201-5525 Inner Cup (LM25520) 202-6005 Dust Cap (DC 15) 290-5515 Outer Wheel Bearing (LM48548) 290-5519 Inner Wheel Bearing (LM25580) 295-5576...
  • Page 69 030-5979 2” X 12” HYDRAULIC CYLINDER – ORB 030-5985 4” X 24” HYDRAULIC CYLINDER, 1.50” ROD – ORB 030-5999 2” X 4” HYDRAULIC CYLINDER – ORB 311-2083 3/8” HYDRAULIC STEEL LINES- 83” 311-2132 3/8” HYDRAULIC STEEL LINES- 132” 311-2157 3/8” HYDRAULIC STEEL LINES - BENT- 157” 313-5096 3/8”...
  • Page 70 308-0001 Pioneer Coupling – Poppet Style 313-5096 3/8” JIC M x ½” NPT M Hydraulic Hose – 96” 030-5734 2-1/2” x 8” BP Hydraulic Cylinder – ½” ORB 030-5735 2-3/4” x 8” BP Hydraulic Cylinder – ½” ORB 030-5736 3” x 8” BP Hydraulic Cylinder – ½” ORB 030-5737 3-1/4”...
  • Page 71 308-0001 Pioneer Coupling – Poppet Style 313-5096 3/8” JIC M x ½” NPT M Hydraulic Hose – 96” 030-5734 2-1/2” x 8” BP Hydraulic Cylinder – ½” ORB 030-5735 2-3/4” x 8” Hydraulic Cylinder – ½” ORB 030-5736 3” x 8” BP Hydraulic Cylinder – ½” ORB 030-5737 3-1/4”...
  • Page 72 308-0001 Pioneer Coupling – Poppet Style 313-5096 3/8” JIC M x ½” NPT M Hydraulic Hose – 96” 030-5734 2-1/2” x 8” BP Hydraulic Cylinder – ½” ORB 030-5735 2-3/4” x 8” BP Hydraulic Cylinder – ½” ORB 030-5736 3” x 8” BP Hydraulic Cylinder – ½” ORB 030-5737 3-1/4”...
  • Page 73 308-0001 Pioneer Coupling 313-5096 3/8” JIC M x ½” NPT M – 96” Hyd Hose 030-5734 2-1/2” x 8” BP Hydraulic Cylinder – ½” ORB 030-5735 2-3/4” x 8” BP Hydraulic Cylinder – ½” ORB 030-5736 3” x 8” BP Hydraulic Cylinder – ½” ORB 030-5737 3-1/4”...
  • Page 74 MONARCH PART NUMBER 671645 RITE WAY PART NUMBER 030-5985 492680 Clevis Cap 4" x 3/4" ORB-1.00 492686 Rod Cap - 4" x 1-1/2" - 3/4"ORB 492527 Piston - 4" Dia. CST DI 492615 Rod - 1-1/2" Dia. TL x 26" 467324 Tube - 4"...
  • Page 75 MONARCH PART NUMBER 639521 RITE WAY PART NUMBER 030-5734 492674 Clevis Cap 2-1/2" ORB 492673 Rod Cap 2-1/2" x 1-1/8" ORB 494726 Piston * R1 * 2-1/2" WPTR 492699 Rod 1.125 ASAE 8 464263 Tube Weld 2-1/2" x 8" TP 492218 Tie Rod 3/8"...
  • Page 76 MONARCH PART NUMBER 639522 RITE WAY PART NUMBER 030-5735 492660 Clevis Cap 2-3/4" ORB 492661 Rod Cap 2-3/4" x 1-1/8" ORB 494727 Piston * R1 * 2-3/4" WPTR 492699 Rod 1-1/8" ASAE 8 464264 Tube Weld 2-3/4" x 8" TP 492278 Tie Rod ½"...
  • Page 77 MONARCH PART NUMBER 639523 RITE WAY PART NUMBER 030-5736 492675 Clevis Cap 3" ORB 492670 Rod Cap 3" x 1-1/4" ORB 494719 Piston *R1 * 3" WPTR 492700 Rod 1-1/4" Dia. ASAE 8 464265 Tube Weld 3" x 8" TP 492278 Tie Rod ½"...
  • Page 78 MONARCH PART NUMBER 639524 RITE WAY PART NUMBER 030-5737 492662 Clevis Cap 3-1/4" ORB 492664 Rod Cap 3-1/4" x 1-1/4" ORB 494737 Piston 3-1/4" TP 492700 Rod 1-1/4" Dia. ASAE 8 464266 Tube Weld 3-1/4" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 79 MONARCH PART NUMBER 639962 RITE WAY PART NUMBER 030-5738 492676 Clevis Cap 3-1/2" ORB 492677 Rod Cap 3-1/2" x 1-1/4" ORB 494738 Piston 3-1/2" TH/TP 492700 Rod 1-1/4" Dia. ASAE 8 464267 Tube Weld 3-1/2" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 80 MONARCH PART NUMBER 639963 RITE WAY PART NUMBER 030-5739 492678 Clevis Cap 3-3/4" ORB 492679 Rod Cap 3-3/4" x 1-3/8" ORB 494732 Piston 3-3/4" TP 492800 Rod 1-3/8" Dia. ASAE 8 464268 Tube Weld 3-3/4" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 81 MONARCH PART NUMBER 639964 RITE WAY PART NUMBER 030-5740 492680 Clevis Cap 4" ORB 492685 Rod Cap 4" x 1-3/8" ORB 494730 Piston 4" TH/TP 492800 Rod 1-3/8" Dia. ASAE 8 464269 Tube Weld 4" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 82 MONARCH PART NUMBER 671624 RITE WAY PART NUMBER 030-5979 492672 Clevis Cap 2" x 3/8" ORB-1.00 492665 Rod Cap 2" x 1-1/8" - 3/4" ORB 492548 Piston 2" Dia. CST DI 492853 Rod 1-1/8" x 12" 491612 Tube 2" x 12" Cylinder 492222 Tie Rod 3/8", 12"...
  • Page 83 MONARCH PART NUMBER 661838 RITE WAY PART NUMBER 030-5999 492672 Clevis Cap 2" x 3/8" ORB-1.00 492665 Rod Cap 2" x 1-1/8" - 3/4" ORB 492548 Piston 2" Dia. CST DI 497505 Rod 1-1/8" x 8" 491604 Tube 2" x 4" Cylinder 492214 Tie Rod 3/8", 4"...
