RITEWAY RH-9222 Operator's Manual & Parts

Three point hitch rotary harrow
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation &
Maintenance Man-
ual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RH-9222 and is the answer not in the manual?

Questions and answers

Related Manuals for RITEWAY RH-9222

Summary of Contents for RITEWAY RH-9222

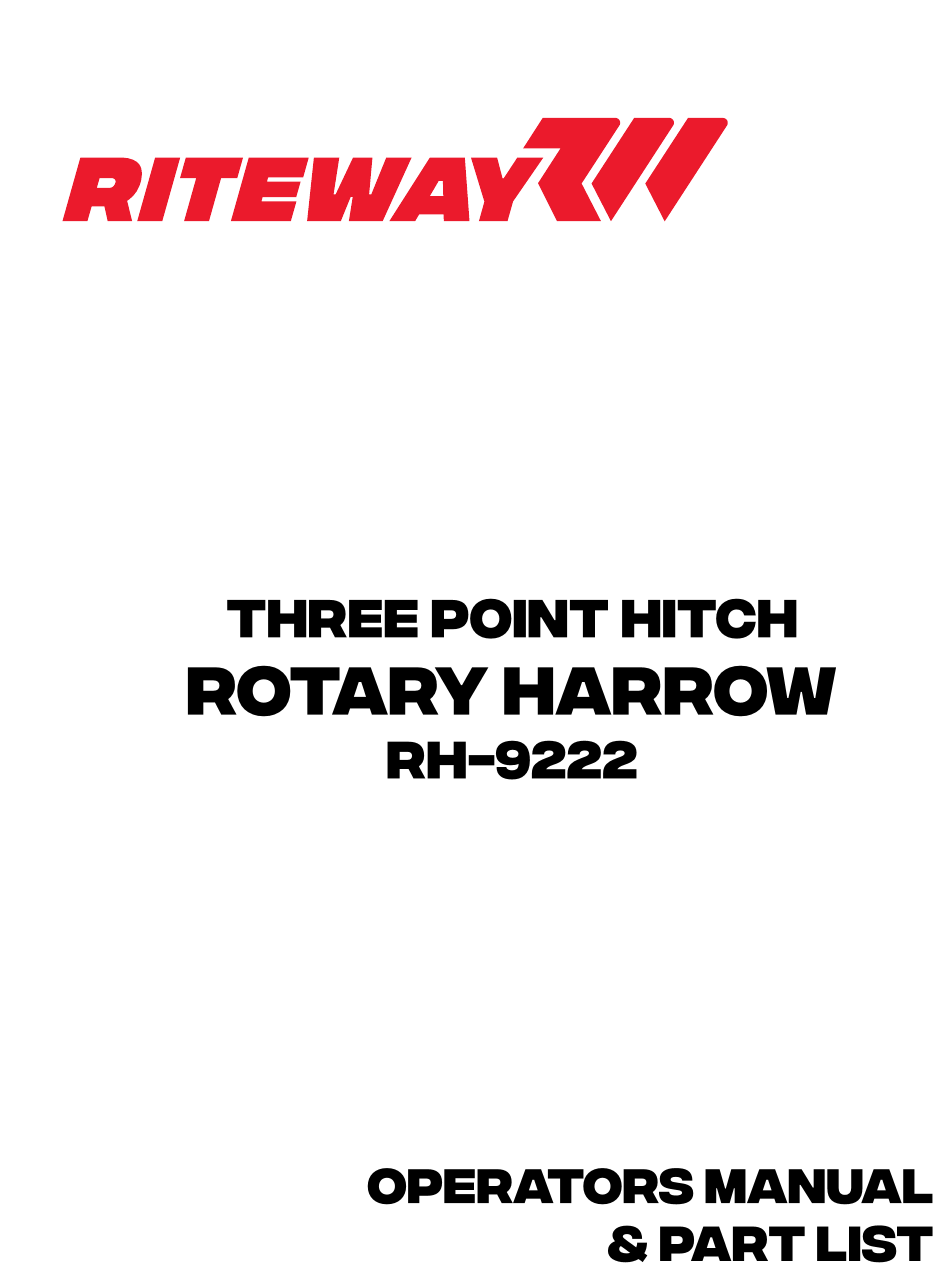

  • Page 1 Operation & Maintenance Man-...
  • Page 3 – Wing lift/lower – Tine angle adjust • Find a location that is as level as possible. • Ensure that the 3-Point hitch is fully raised. • Carefully lower the harrow wings to horizontal orientation ( hydraulic remote). Ensure that both wing cylinders are fully extended.
  • Page 5 Contents PAGE SECTION 1 INTRODUCTION MANUAL & EQUIPMENT DETAILS SPECIFICATIONS PRE-DELIVERY INSPECTION 5, 6 SERVICE & WARRANTY POLICY SAFETY RECOMMENDATIONS 9, 10 DECAL LOCATIONS 11,12 MAINTENANCE 13-18 OPERATING INSTRUCTIONS GRADE CHART TORQUE CHART PAGE SECTION 2 1-10 PARTS 11-16 HYDRAULICS Table of Contents...

  • Page 8: Product Description

    RH-9222. We also recommend that you take care of this manual so it will be available for future reference. Should your manual become lost or destroyed a new copy can be obtained from your Rite Way Manufacturing dealer.
  • Page 9 Unit Model Number RH-9222 Manual Revision Number Manual Revision Date November 9. 2020 Manual Serial Number Range 20-0926 to Current The area below is provided for the owner / end-user to make notes regarding the equipment. Owner / Equipment Information...
  • Page 10 Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.) Inspect paint, decals and general appearance of unit. Verify that the owners manual is in the manual storage tube. Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit . (If applicable) Verify that jacks are with the unit and function properly.
  • Page 11 • 25° to 40° Hydraulic Tine Angling From Tractor Cab • 3/4” x 18” interlocking tines in one 6.5 ft and two 11ft. sections • Quick-tension adjustment tine sections • Class II and Class III Three-Point Hitch Compatibility • 8" x 8" x 1/4" Wall Center Frame Tube •...
  • Page 12 Rite Way Manufacturing Co. Ltd. (hereafter referred to as Rite Way) warrants each new ma- chine to be free from defects in materials and workmanship for a period of one (1) year from date of purchase under normal agricultural use and service. In addition, Rite Way will supply at no charge, (F.O.B Rite Way Factory) any part that has failed within the 2nd year.
  • Page 13 1. All claims must be handled through a dealer / distributor. All claims must be submitted on a proper- ly completed claim form within 30 days of the date of repair. 2. A warranty registration claim form must be on file at Rite Way Mfg. to validate a warranty claim. 3.
  • Page 14 10. Maximum speed while transporting the RH-9222 is 25 mph (40 km/h). 11. Ensure that the RH-9222 frame is lowered to the ground before doing any work on machine. 12. Do not work on this machine when hydraulic system is under pressure.
  • Page 17 060-0022 Red Reflector (3 x 2) 060-0009 Amber Reflector (3 x 2) 060-0034 RiteWay Serial Number Plate 060-0066 Rite Way Mfg. (Medium Decal) 060-0046 Grease Every 8 Hours 060-0108 www.ritewaymfg.com - (1” x 20”) 060-0011 Caution - Escaping Fluid Hazard...
  • Page 18 • Check harrow tine tension before use. Ensure that long sections do not sag more than 1.5” (38 mm). • Grease all pins and knuckles. (See decals locations) • Grease harrow chain bearings. • Visually inspect hydraulic hoses & fittings for leaks or damage. •...
  • Page 20 Lubricate all pins and bearings regularly to prevent premature failure. • Clean hydraulic hose ends prior to coupling with tractor hydraulic system. • The RH-9222 requires two sets of hydraulic remotes to operate the machine: – Remote 1 – Tine angle adjust – Remote 2 – Wing lift/lower •...
  • Page 21 • Move the tractor into position where the pins can be installed to connect the 3-Point hitch linkages to the harrow frame. Adjust the 3-Point hitch height to connect the harrow to the tractor. • Remove the support jack and stow it on the main frame supplied jack stub. •...
  • Page 22 1. Ensure harrow is properly attached to the 3-Point hitch per previous instructions and all hydraulic hoses are firmly attached to the tractor hydraulic remotes. 2. Upon entering the field, park the tractor on level ground with a clear radius of 30’ (9.2 m) to allow for wings to fold down and not make contact with any obstacles.

  • Page 23: Transport Position

    1. Stop the tractor on level ground, set parking brake, and raise the 3-Point hitch to it’s highest posi- tion. 2. Retract the tine section angle adjust cylinders ( hydraulic remote) to the least aggressive, wid- est working width position of the harrow unit. 3.
  • Page 24 1. Harrow chains will loosen during operation as the harrow tines wear and become worked in. Check chain tension periodically, especially in the first 40 hours of operation. 2. If chains are no longer tight, and have a center sag distance more than 1” for the short section or 1.5”...
  • Page 25 • Rotary harrow section angle of aggression can be adjusted from 25° to 40° by activating the hydraulic remote. • The rotary harrow sections do the best job when pulled at a speed of 10-14MPH. Do not exceed 16MPH in working conditions. •...
  • Page 26 Min. Proof Min. Tensile Min. Yield Grade Size Range Specification Material Strength Strength Strength Identification (inches) (psi) (psi) (psi) Marking Low or Medium 1/4 to 3/4 55,000 74,000 57,000 Grade 2 Carbon Steel 7/8 to 1-1/2 33,000 60,000 36,000 Medium Carbon 1/4 to 1 85,000 120,000...
  • Page 27 Grade 2 Grade 5 Grade 8 Nominal Tightening Clamping Tightening Clamping Tightening Clamping Thread Size Load Torque Load Torque Load Torque Coarse Thread 1/4-20 1,300 lbs 65 in-lbs 2,000 lbs 100 in-lbs 2,850 lbs 143 in-lbs 5/16-18 2,150 lbs 134 in-lbs 3,350 lbs 210 in-lbs 4,700 lbs...
  • Page 31 060-0034 SERIAL PLATE 105-0078 PIN WELDMENT, COMMON, BOLT TOP, YZP 105-0776 ROTARY HARROW WRENCH WELDMENT 105-1079 1-1/2 X 12" LG PIVOT MOUNT PIN 105-1266 3PT MOUNT CENTER FRAME 413-0008 HYDRAULIC CLAMP, 2 LINE, BLACK PLASTIC 526-0615 BOLT, 3/8-16 UNC - 1.75, GR.5, YELLOW ZINC PLATED 550-5206 WASHER, FLAT, 3/8, SAE, GR.5, YZP 422-0028...
  • Page 33 105-0078 PIN WELDMENT, COMMON, BOLT TOP, YZP 105-1079 1-1/2 X 12" LG PIVOT MOUNT PIN 105-1266 3PT MOUNT CENTER FRAME 105-1267 LHS WING WELDMENT 105-1268 RHS WING WELDMENT 413-0008 HYDRAULIC CLAMP, 2 LINE, BLACK PLASTIC 526-0615 BOLT, 3/8-16 UNC - 1.75, GR.5, YELLOW ZINC PLATED 550-5206 WASHER, FLAT, SAE, GR.5, YZP 419-0004...
  • Page 35 105-0078 PIN WELDMENT, COMMON, BOLT TOP, YZP 105-1079 1-1/2 X 12" LG PIVOT MOUNT PIN 105-1263 LIFT ARM, LHS, STRENGTHENED 105-1264 LIFT ARM, RHS, STRENGTHENED 105-1265 LIFT ARM, CENTER, STRENGTHENED 105-1266 3PT MOUNT CENTER FRAME 105-1267 LHS WING WELDMENT 105-1268 RHS WING WELDMENT 160-0693 RHS 3PH RH GANG ASSEMBLY...
  • Page 36 030-8000 RACHET JACK ASSEMBLY /w HANDLE REMOVED 105-1147 ROTARY HARROW LIFT ARM, LHS 105-1148 ROTARY HARROW LIFT ARM, RHS 105-1265 ROTARY HARROW LIFT ARM, LHS, SHORT 105-1081 RH-9200 155"LG GANG, INNER ARM, LHS 105-1084 RH-9200 155"LG GANG, INNER ARM, RHS 105-1273 RH-9200 155"LG GANG, INNER ARM, LHS, SHORT 105-1082...
  • Page 37 NOTE: 404-0041 and 404-0042 Left and Right Tines are to be ordered in pairs (even numbers) 160-0710 HARROW TINE ASSEMBLY, L&R TINES 404-0041 RH-9200 TINE, RIGHT 404-0042 RH-9200 TINE, LEFT 526-6208 NUT, STD, 1/2-13 UNC, GR.5, YELLOW ZINC PLATED 530-0744 BOLT, 1/2-13 UNC - 2, GR.8, YELLOW ZINC PLATED 530-0754 BOLT, 1/2-13 UNC - 4, GR.8, YELLOW ZINC PLATED...
  • Page 38 201-6020 ROLLER BEARING, OUTER RACE 3.2283" OD 290-6017 ROLLER BEARING, INNER RACE 1.98" ID 293-7023 BEARING - ROLLER BALL 2.4409" OD and 1.1811" ID 294-0014 FRONT BEARING HOUSING 680-1076 REAR BEARING HOUSING, W/ HOOK (shown) 294-0016 REAR BEARING HOUSING 295-6021 INNER DUST SHEILD 295-6022 OUTER DUST SHEILD...
  • Page 39 NOTE: Bearing guard 105-1319 is used only on older rotary harrows. These harrows can be identified by their lack of roll pin hole on the bolted lug of the bearing. Furthermore, on the older bearing the hole the bolt passes through on the lug is a slot. 105-1318 TRASH GUARD, TINE GANG, RH-9200 105-1319...
  • Page 40 3-1/2” X 14” 3-1/2” X 14”...
  • Page 41 030-5935 2-3/4” X 8” REPHASING HYDRAULIC CYLINDER – ORB 030-5936 3” X 8” REPHASING HYDRAULIC CYLINDER – ORB 030-5937 3-1/4” X 8” REPHASING HYDRAULIC CYLINDER – ORB 030-5981 3-1/2” X 14” HYDRAULIC CYLINDER – ORB 308-0001 PIONEER COUPLING 313-6553 3/8” JIC SW F X ½” NPT M HYDRAULIC HOSE - 53" 313-6533 3/8”...
  • Page 42 MONARCH PART NUMBER 639523 RITE WAY PART NUMBER 030-5736 492675 Clevis Cap 3" ORB 492670 Rod Cap 3" x 1-1/4" ORB 494719 Piston *R1 * 3" WPTR 492700 Rod 1-1/4" Dia. ASAE 8 464265 Tube Weld 3" x 8" TP 492278 Tie Rod ½"...
  • Page 43 MONARCH PART NUMBER 639524 RITE WAY PART NUMBER 030-5737 492662 Clevis Cap 3-1/4" ORB 492664 Rod Cap 3-1/4" x 1-1/4" ORB 494737 Piston 3-1/4" TP 492700 Rod 1-1/4" Dia. ASAE 8 464266 Tube Weld 3-1/4" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 44 MONARCH PART NUMBER 639962 RITE WAY PART NUMBER 030-5738 492676 Clevis Cap 3-1/2" ORB 492677 Rod Cap 3-1/2" x 1-1/4" ORB 494738 Piston 3-1/2" TH/TP 492700 Rod 1-1/4" Dia. ASAE 8 464267 Tube Weld 3-1/2" x 8" TP 492338 Tie Rod 5/8" x 8" 469528 Pin 1"...
  • Page 45 MONARCH PART NUMBER 671626 RITE WAY PART NUMBER 030-5981 492676 Clevis Cap 3-1/2 - 3/4” NF ORB @ 90º 492381 Rod Cap 3-1/2 - 3/4” ORB, 1-3/43" ID 292518 Piston 3-1/2 x 1 - TL / TC 194897 Seal Hallite 605 Rod Ø1-3/4" x 491804 Cylinder Tube 3.5 - 14 492344...
