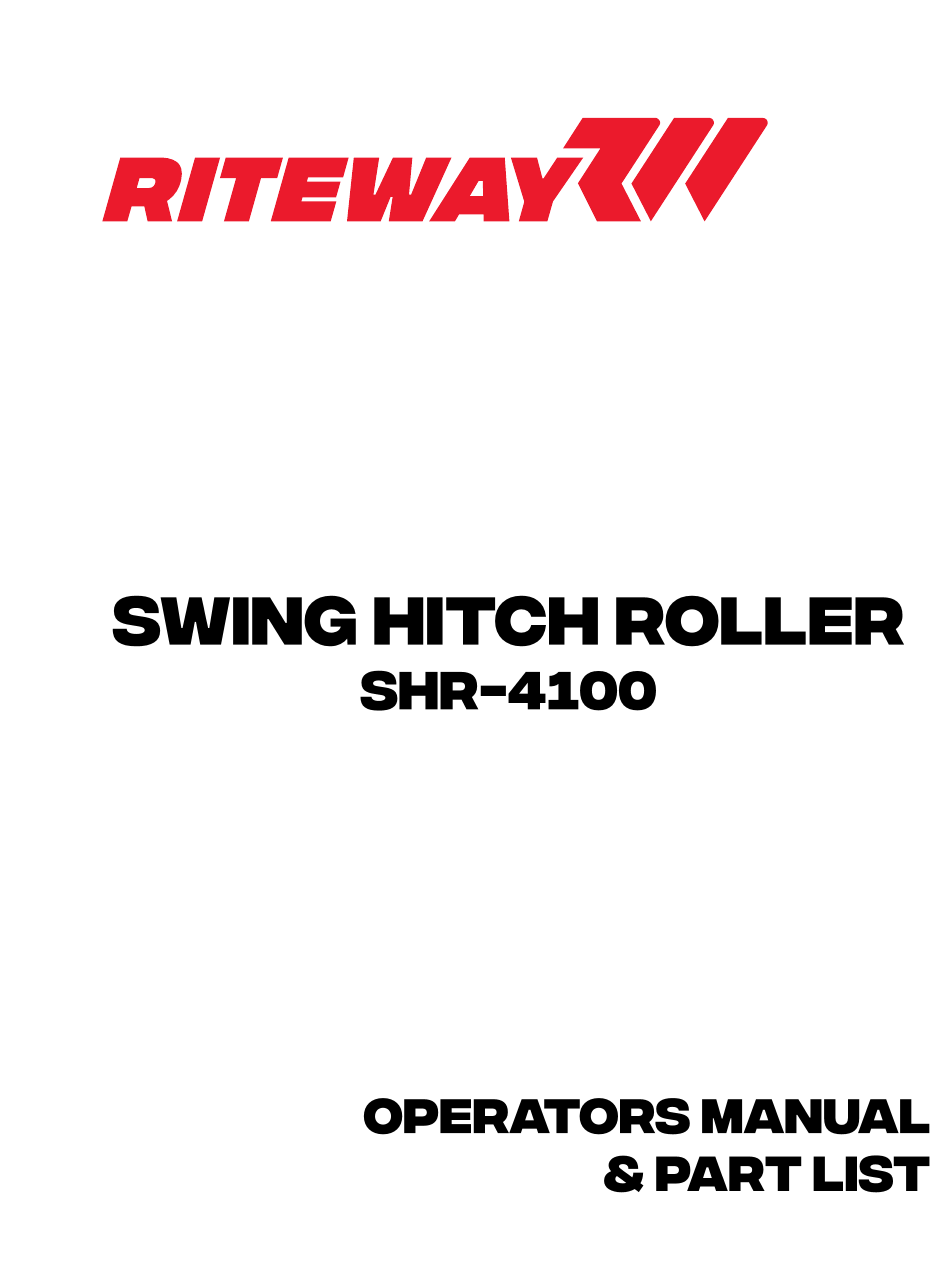

- Page 1 Operation & Maintenance Manual...
- Page 3 Contents PAGE SECTION 1 INTRODUCTION & MANUAL INFORMATION PRE-DELIVERY INSPECTION / NOTES SPECIFICATIONS SERVICE AND WARRANTY INFORMATION 10,11 SAFETY SUGGESTIONS 12,13 DECAL LOCATIONS 14,15 MAINTENANCE / GREASE LOCATIONS 16-18 OPERATING INSTRUCTIONS GRADE CHART TORQUE CHART PAGE SECTION 2 3-19 PARTS...
- Page 6 Thank you for making the decision to purchase a RITE WAY product! We are pleased to welcome you as an owner of a product from RITE WAY MFG. This machinery is the culmination of years of agricultural and engineering experience and has been designed to deliver you with many years of successful operation service.
- Page 7 Unit Model Number SHR-4100 Manual Revision Number Manual Revision Date Feb. 10, 2020 Manual Serial Number Range 18-41-2357 – Current The area below is provided for the owner / end-user to make notes regarding the equipment. Owner / Equipment Information...
- Page 8 Remove wrapping and wash unit, removing all road debris. (Road salt, mud, snow, etc.) Inspect paint, decals and general appearance of unit. Verify that the owners manual is in the manual storage tube. Verify ‘SLOW MOVING VEHICLE’ sign (SMV) is on unit Verify that jacks are with the unit and function properly.
-
Page 9: Standard Equipment
Standard Equipment: Multi-position Hydraulic Swing Hitch • Adjustable hitch height c/w perfect hitch clevis • Over-center wing lockups • Triple Lip Seal Bearings • Large diameter drum with premium heavy wall: • 42” diameter; 0.50” wall thickness (1067mm x 13mm) •... - Page 10 Rite Way Manufacturing Co. Ltd. (hereafter referred to as Rite Way) warrants each new machine to be free from defects in materials and workmanship for a period of one (1) year from date of pur- chase under normal agricultural use and service. In addition, Rite Way will supply at no charge, (F.O.B Rite Way Factory) any part that has failed within the 2nd year.
- Page 11 1. All claims must be handled through a dealer / distributor. All claims must be submitted on a proper- ly completed claim form within 30 days of the date of repair. 2. A warranty registration claim form must be on file at Rite Way Mfg. to validate a warranty claim. 3.
- Page 12 1. Read the manual thoroughly and understand before operating or working on the machine. 2. Study all safety and warning decals on the implement. 3. Most accidents occur because of neglect or carelessness. 4. Do not allow riders on the tractor or implement during operation. 5.
- Page 15 060-0061 Important - Hydraulic Hose Application (three colours) 060-0067 Warning - Check and Tighten Hub and Wheel Bolts 060-0121 Riteway Mfg. (Large) 060-0083 4100 - White 060-0122 Riteway Mfg. (Small Decal, 9 x 4 - White) UNIT SERIES UNIT SIZE MODEL YEAR...
- Page 16 Repack the wheel hubs after the first 500 travel miles; then yearly thereafter. • Visually inspect the wheel bolts for tightness each day. Riteway torque recommendation to • 110 ft - lbs after the first few hours of operation and frequently there after, (manufactures torque recommendations 90 to 131 ft - lbs).
- Page 18 NOTE: Always choose a level area when raising and lowering unit into or from transport position. NOTE: Lubricate all pins, axles and bearings regularly to prevent premature failure of components. • Move tractor into position where pin can be dropped in place through draw bar hitch NOTE: Use a clevis type tractor hitch with a retained type of hitch pin.
- Page 19 Park on level ground. Remove each transport frame hydraulic cylinder lock up and pin into position. Remove the swing hitch lock pin. Remove tongue extension lock pin. FROM INSIDE THE TRACTOR, lower the unit until the drum and frame are parallel to the ground and just off the ground surface.
- Page 20 STOP the tractor before trying to lift up the LAND ROLLER Remove the tongue extension lock pin and swing hitch lock pin. Lift the unit slowly just off the ground. Swing the roller into transportation position. Extend the transport frame cylinders completely. Place each transport frame cylinder lock up in place.
- Page 21 Min. Proof Min. Tensile Min. Yield Grade Size Range Specification Material Strength Strength Strength Identification (inches) (psi) (psi) (psi) Marking Low or Medium 1/4 to 3/4 55,000 74,000 57,000 Grade 2 Carbon Steel 7/8 to 1-1/2 33,000 60,000 36,000 Medium Carbon 1/4 to 1 85,000 120,000...
- Page 22 Grade 2 Grade 5 Grade 8 Nominal Tightening Clamping Tightening Clamping Tightening Clamping Thread Size Load Torque Load Torque Load Torque Coarse Thread 1/4-20 1,300 lbs 65 in-lbs 2,000 lbs 100 in-lbs 2,850 lbs 143 in-lbs 5/16-18 2,150 lbs 134 in-lbs 3,350 lbs 210 in-lbs 4,700 lbs...
- Page 27 105-0239 Main Frame Weldment 112-0530 Offset Drum Cross c/w Coupling Nuts 200-9002 Weld On Bushing 261-6001 Ø3-11/16” x 1-5/16” Split Tapered Bearing 292-4018 Ø2-7/16” Eccentric Lock Collar, Pltd. 292-4022 Ø2-7/16” ID 4-Bolt Flange Bearing 525-0510 5/16” x 1-1/4” Capscrew, NC, Gr.5, Pltd. 526-0815 1/2”...
- Page 29 Item # Part # Description MONARCH CYLINDER,20TC16-112, ORDER NUMBER: 648683, 3/4" ORB PORT 90 DEG, C/WITH 2 CYL. 030-5972 PINS 3-1/2 X 24 CYLINDER,1-3/4 SHAFT, MONARCH-3/4" ORB PORTS INLINE, C/WITH 2 CYL. PINS O/N 671642 030-5982 S/N 35THC24-175 105-0195 CROSS MEMBER SUB-WELDMENT 105-0204 SAFETY HANDLE WELDMENT 105-0238...
- Page 31 204-5586 Rim, 12.5L-15, 15 x 10 x 8 Bolt 205-1193 Tire, 12.5L-15, Load Range D 020-0108 Tire and Rim Assembly, 12.5L-15 D 030-5981 3-1/2 X 14 Hydraulic Cylinder, 3/4 ORB 105-0078 Pin Weldment, Common, Bolt Top, YZP 105-0238 Pin Sub-Weldment For Hyd Cylinder 105-0239 Main Frame Weldment 105-1127...
- Page 32 Slow Moving Sign & Light Kit...
- Page 33 040-0048 Light Kit, Swing Hitch Roller (Not Shown) 105-0239 MAIN FRAME WELDMENT 105-1133 HITCH ARM WELDMENT 424-0001 SLOW MOVING SIGN (SMV) 424-0002 SLOW MOVING SIGN SPADE 526-0406 BOLT, 1/4-20 UNC - 0.75, GR.5, YELLOW ZINC PLATED 526-0507 BOLT, 5/16-18 UNC - 0.875, GR.5, YELLOW ZINC PLATED 526-0810 BOLT, 1/2-13 UNC - 1.25, GR.5, YELLOW ZINC PLATED 526-6105...
- Page 34 423-0001 Perfect Hitch Assy Cat3 (PP1-V3A-10) 423-0003 Perfect Hitch Assy Cat3 w/ Clevis (PP1-206 VR) 423-0005 Base Hitch (PP1-301-V3) 423-0006 Clevis (PP1-208VR-10) 423-0017 Top Plate Perfect Hitch (PP1-302V) 423-0018 V-Block (PP1-203VR) 423-0019 Neoprene Cushion (PP1-205H) 526-1224 3/4” x 3” Capscrew, NC, Gr.5, Pltd. 526-6107 3/4”...
- Page 35 203-6044 812 Spindle, Ø2-1/2” X 11-3/4” Long 200-6011 812 Hub (complete) 201-6016 Outer Cup LM2720 201-6017 Inner Cup 3720 202-6013 DC 17 Dust Cap 290-6013 Outer Bearing, 2790 290-6014 Inner Bearing, 3780 295-6016 SE 17 Seal 534-7816 1” Castle Nut, NF, Gr.5, Black 554-5303 1”...
- Page 36 112-0258 Acre Meter Housing (Ø4") Measure before ordering replacement meter Arce Meter Varies To Order an Acre Meter Please Call Forster Toll Free # 1-800-661- 2994 518-0608 3/8" x 1/2" Set Screw, NC, Black 526-0832 1/2" x 4" Capscrew, NC, Gr.5, Pltd. 526-7508 1/2"...
- Page 37 MONARCH PART NUMBER 648683 RITE WAY PART NUMBER 030-5972 293008 Clevis Cap 2.00 - 3/8 ORB- 1" 293016 Rod Cap 2.00 - 1.13 - 3/8" ORB - TX 293010 Piston 2.00 - TX 194893 Seal Hallite 605 Rod - 1-1/8"D 498511 Cylinder Tube - 2.00 x 16.00 - TX 494181...
- Page 38 MONARCH PART NUMBER 671626 RITE WAY PART NUMBER 030-5981 492676 Clevis Cap 3-1/2 - 3/4” NF ORB @ 90º 492381 Rod Cap 3-1/2 - 3/4” ORB, 1-3/43" ID 292518 Piston 3-1/2 x 1 - TL / TC 194897 Seal Hallite 605 Rod Ø1-3/4" 491804 Cylinder Tube 3.5 - 14 492344...
- Page 39 MONARCH PART NUMBER 671642 RITE WAY PART NUMBER 030-5982 492676 Clevis Cap 3-1/2", 3/4” NF ORB 492381 Rod Cap 3-1/2", 3/4” ORB, 1-3/4" ID 292518 Piston 3-1/2 x 1- TL / TC 194897 Seal Hallite 605 Rod Ø1-3/4" 491814 Cylinder Tube, 3-1/2 x 24" - TL / TC 492354 Tie Rod, 5/8"...
- Page 41 030-5972 20TX16-112 (648683) 3/4" ORB @ 90° (Telescopic-Hitch) 030-5981 35THC14-175 (671626) 3/4" ORB @ 90° (Transport Axle) 030-5982 35TC24-175 (671642) 3/4" ORB @ In Line (Main Swing) 310-5017 Sequencing Valve (Fastline PRCV106A-308T) 313-6544 1/2" NPT M. x 3/8 JIC Sw.F 3/8 Hose - 144" c/w Pioneer Tip 313-6704 1/2"...
