How to Adjust the Projected Image

The Focus and Zoom Functions
When an image is displayed on the screen, first examine whether the image is
focused, and whether it is located on the screen accurately.
To focus the display image, you may adjust the Focus Ring by turning left or right.
The Focus Ring is fixed on the outer rim of the projector lens.
To enlarge or minimize the screen size, adjust the Zoom Ring by turning left or
right to project the desired screen size. The Zoom Ring is designed on the inner
rim of the projection lens.
To Fix the Position of the Image Projected on the Screen:

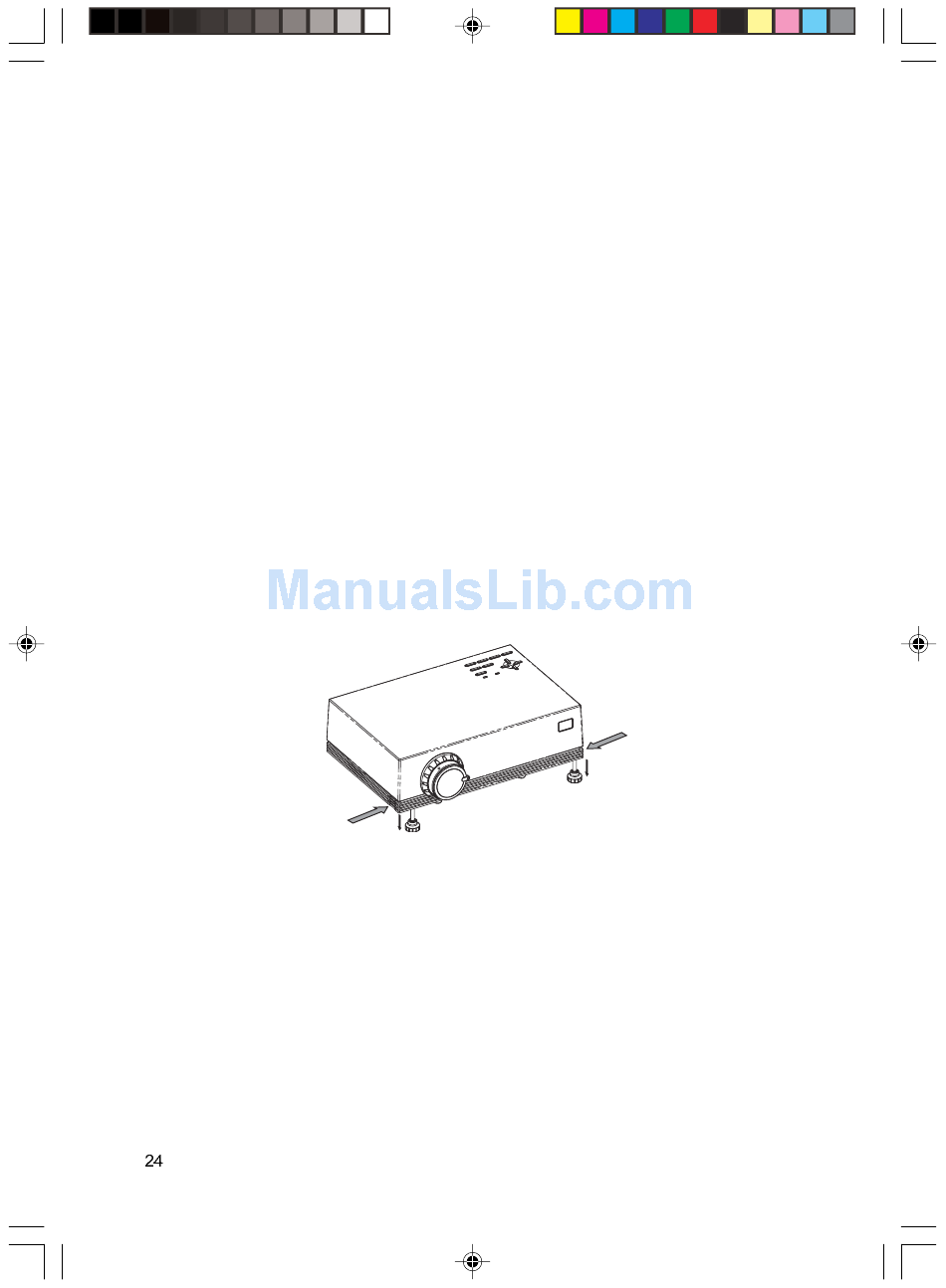

To adjust the position of the image that is projected on the screen, adjust the two
stands at the bottom of the projector.
The Auto Key
If the image projected is from the computer, project it on the screen and then
press the AUTO key to automatically adjust the setup of this projector with the
computer signal.
