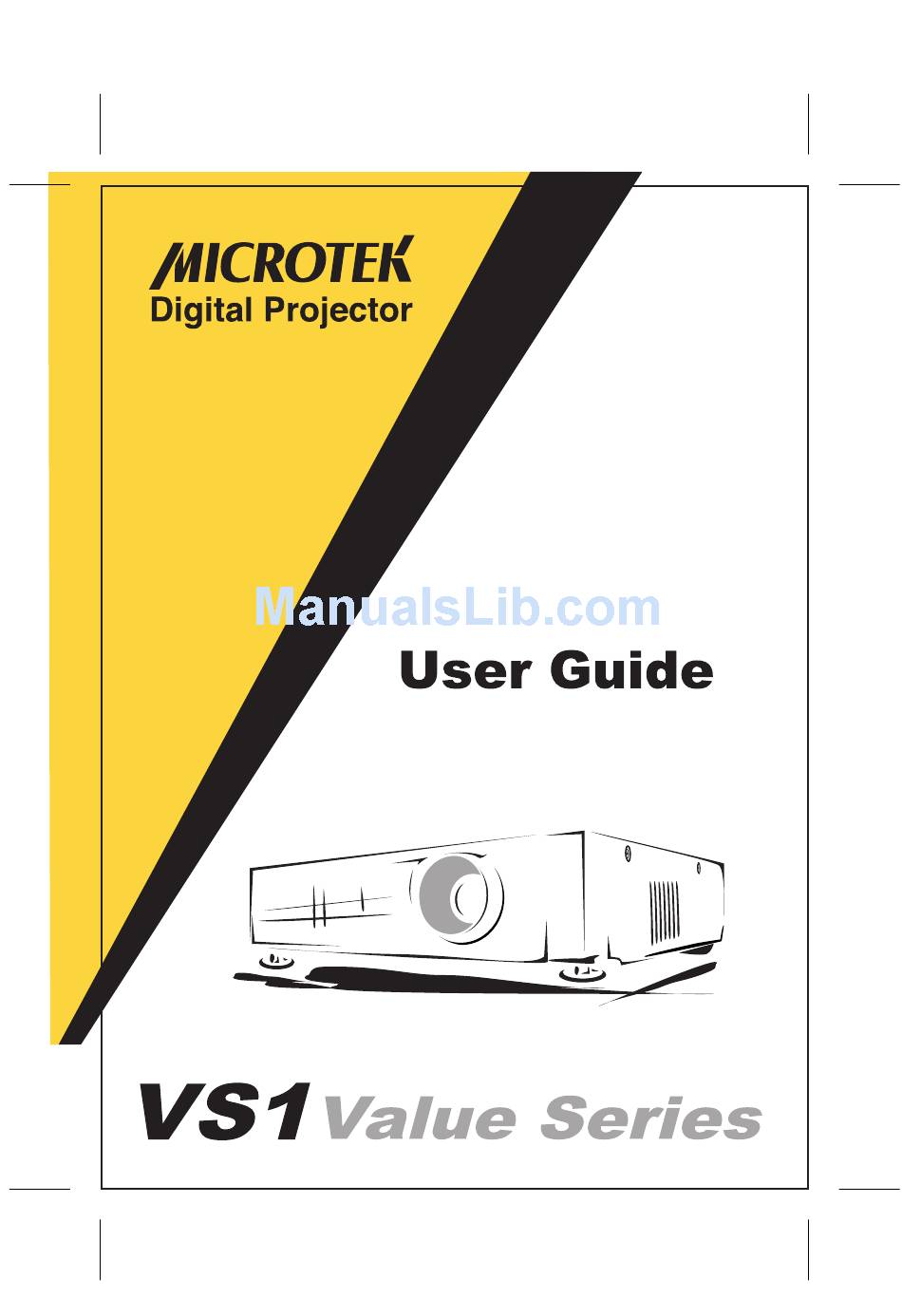

Microtek VS1 User Manual

Value series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microtek VS1

Summary of Contents for Microtek VS1

  • Page 2: Declaration Of Conformity

    The typical use is in a conference room, meeting room or auditorium. Declaration of Conformity We declare under our sole responsibility that the Zoom Digital Projector conform to the following directives and norms: Directive 89/336/EEC, Amended by 93/68/EEC EMI: EN 55022 (1992) Class A...

  • Page 3: Table Of Contents

    Mini-Stereo to Mini-stereo Audio Cable ... 7 Mini-Stereo to RCA Stereo Cable ... 7 Starting the Presentation ...8 Power button ... 8 Turning Off the Projector ... 9 Keystone correction ... 10 Volume ... 10 Brightness ... 10 Contrast ... 10 OSD Menu Format and Description...
  • Page 4 Input source select ... 15 Auto Image In Progress ... 16 Lamp Off Control ... 16 Out of Range... 16 Positioning the Projector ... 17 Preset Timing ... 18 Maintenance ... 19 Change the Lamp Module ... 19 Cleaning the Projection Lens ... 20 Cleaning the Exterior Case ...

  • Page 5: Introduction

    In just minutes, you can have your LCD Digital Projector ready to go. Just connect the projector to an image source such as a computer, DVD, VCR, or digital camera.

  • Page 6: Projector Features

    Press for input source selection Keystone Press to adjust the image vertically and make a squarer image OSD Menu Zoom function Status Press to get projector operation status information ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５ Projector Features keypad remote control sensor I/O connection panel foot release button (2)

  • Page 7: How To Use Remote

    LCD Projector User Guide How to use the Remote Install two AAA batteries into the remote. Remote mouse function The flip cover must be crosed and the remote mouse function must be working. OSD Menu Funciton • The flip cover must be open.

  • Page 8: Connecting The Projector

    Connecting the Projector The cables are color coded to assist you in making the connections. When you connect the power cable to the projector, the Power LED on the keypad will be turned on. You can connect more than one image source at a time. The image source can be either automatically selected, or you can switch the “AUTO SOURCE”...

  • Page 9: Starting The Presentation

    1. Connect the signal cable to the computer or video source. 2. Connect the power cord to the projector and to a power source. The Power light begins to blink. 3. Turn on the presentation components in the order listed. To turn on the projector, remove the lens cap and press the Power button on either the remote control or the keypad when the lamp ready LED is on.

  • Page 10: Turning Off The Projector

    4. Position the projector by using the adjustable feet on the bottom of the projector. Press the foot release buttons in the front of the projector to raise or lower the feet. 5. Turn the focus ring to focus the image and turn the zoom ring to zoom in or zoom out on the image.

  • Page 11: Keystone Correction

    LCD Projector User Guide OSD Menu Format and Description Basic Menu How to navigate the menus : Use the up /down keys to select function items. Use the - and + keys to adjust value. to exit. Keystone correction Description: Use the - and + keys to adjust the keystone level of display.

  • Page 12: Horizontal Position (Data Only)

    Horizontal position (Data only) Description: Use the - and + keys to adjust the display position horizontally . Vertical position (Data only) Description: Use the - and + keys to adjust the display position vertically. Tracking (Data only) Description: Use the - and + keys to adjust the sampling number. Frequency (Data only) Description: Use the - and + keys to adjust the sampling clock.

  • Page 13: Digital Zoom & Pan

    LCD Projector User Guide Utilities - 1 Menu Description : Use the up and down keys to select item. Use the - and + keys to adjust value. to exit. Digital Zoom & Pan Description : Press + to enter zoom mode.

  • Page 14: Reset All

    OSD Position Description:Showing the OSD position . Use the - and + keys to adjust OSD position. On top-left, top-right, center, bottom-left, bottom-right to exit. Auto Image Description : Press + key to adjust “Auto Image” setting. ON: Enable automatic fine tuning of image. OFF: Disable automatic fine tuning of image.

  • Page 15: Status At Pc Mode

    LCD Projector User Guide Status at PC Mode Description: Showing the input signal status and the detected PC mode with model number and firmware version information. Use + key to reset lamp hours to zero. to exit. Status at Video mode Description: Showing the input signal status and the detected Video standard with aspect ration and firmware version information.

  • Page 16: Lamp Hours Reset

    Lamp Hours Reset Description: Use the - to confirm lamp hours reset. to exit. Input source select Description: Press up , down and INPUT keys to select different input source. Press + key to execute. PC: Select PC / MAC input port. S-Video: Select the S-Video input port.

  • Page 17: Auto Image In Progress

    LCD Projector User Guide Auto Image In Progress Description: Message for auto image in progress Lamp Off Control Press the <Power> key again to turn lamp off, otherwise this screen will disappear automatically in 10 seconds. Out of Range Description: Message for input signal out of range.

  • Page 18: Positioning The Projector

    Positioning the Projector The projector should be at least 2.5 feet (.9 m) from the screen but no more than 32 feet (10 m) away from the screen. Screen sizes are: Distance 5' (1.5 m) 23~ 30"x 17~ 23" (0.58~0.76 x0.43~0.58 m) 6.5' (2.0 m)

  • Page 19: Preset Timing

    LCD Projector User Guide Preset Timing i t a l i b y t i i t a l i b y t i i t a l i b y t i ) y l Remarks: only for XGA model ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５...

  • Page 20: Maintenance

    Doing otherwise may cause electric shock. To replace the lamp module: 1. Turn off the projector and let the unit cool down at least 45 minutes. 2. Unplug the power cord from projector. 3. Turn the projector upside down. Loosen the screw with a flat head screw- driver then lift up to remove the lamp module door and keep screw on the door carefully.

  • Page 21: Cleaning The Projection Lens

    4. Lightly wipe the cleaning cloth over the lens. 5. If you do not intend to use the projector immediately, replace the lens cap. Cleaning the Exterior Case 1. Turn off the projector and allow it to cool.

  • Page 22: Cleaning The Air Filter

    Note: Standing the projector on its side keeps dust from getting inside. 4. Locate the air filter cover on the bottom of the projector and slide the cover latch downward to remove the cover. 5. Use a softbrush to clean the air filter being carefully not to tear the filter or loosen it.

  • Page 23: Troubleshooting

    LCD Projector User Guide LCD Projector User Guide Troubleshooting Power Indicator The power and lamp indicator on the keypad provides you with information about the condition of the projector. Indicator Lamp LED Power LED ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５ Light Status Condition Lamp is off but live power cord is Blinking connected to the projector.

  • Page 24: Image Quality

    1024 x 768. (Refer to your computer user manual.) But this projector can compress resolutions up to 1280 x 1024. • Be sure that the projector is at a 90° angle to the screen. • Reposition the image. • Turn the projection lens to focus the image.

  • Page 25: Sound

    Make sure the projector is at a 90 degree angle to the screen. Use the Image Manager to select a setting that is more acceptable.

  • Page 26: Remote Control

    ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５ Cause and Solution • Make sure that the total distance from the remote to the projector is no more than 32 feet (10 m). • Point the remote control at the screen or at the front of the projector.

  • Page 27: Image Source

    ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５ Cause and Solution Some inexpensive cables are not compatible with the projector. Be sure to use the cable that came with your projector. • Verify that the cables are connected correctly. See “Connecting the Projector” on page 7.

  • Page 28: Safety

    Doing so may result in electric shock. Caution: Don’t set liquids on the projector. Spilled liquids may damage your projector. Caution: Don’t put the projector on a hot surface or in direct sunlight. Caution: Do not drop the projector. ＬＣＤ　Ｐｒｏｊｅｃｔｏｒ　Ｕｓｅｒ　Ｇｕｉｄｅ．ｐ６５...

  • Page 29: Battery Safety

    Doing so may damage the projector. Caution: Proper ventilation is important. Don’t block ventilation openings. Never operate this projector in an enclosed area. Do not place the projector on a tablecloth or other soft covering that may block the vents. With ceiling installations, use approved mounting hardware.
