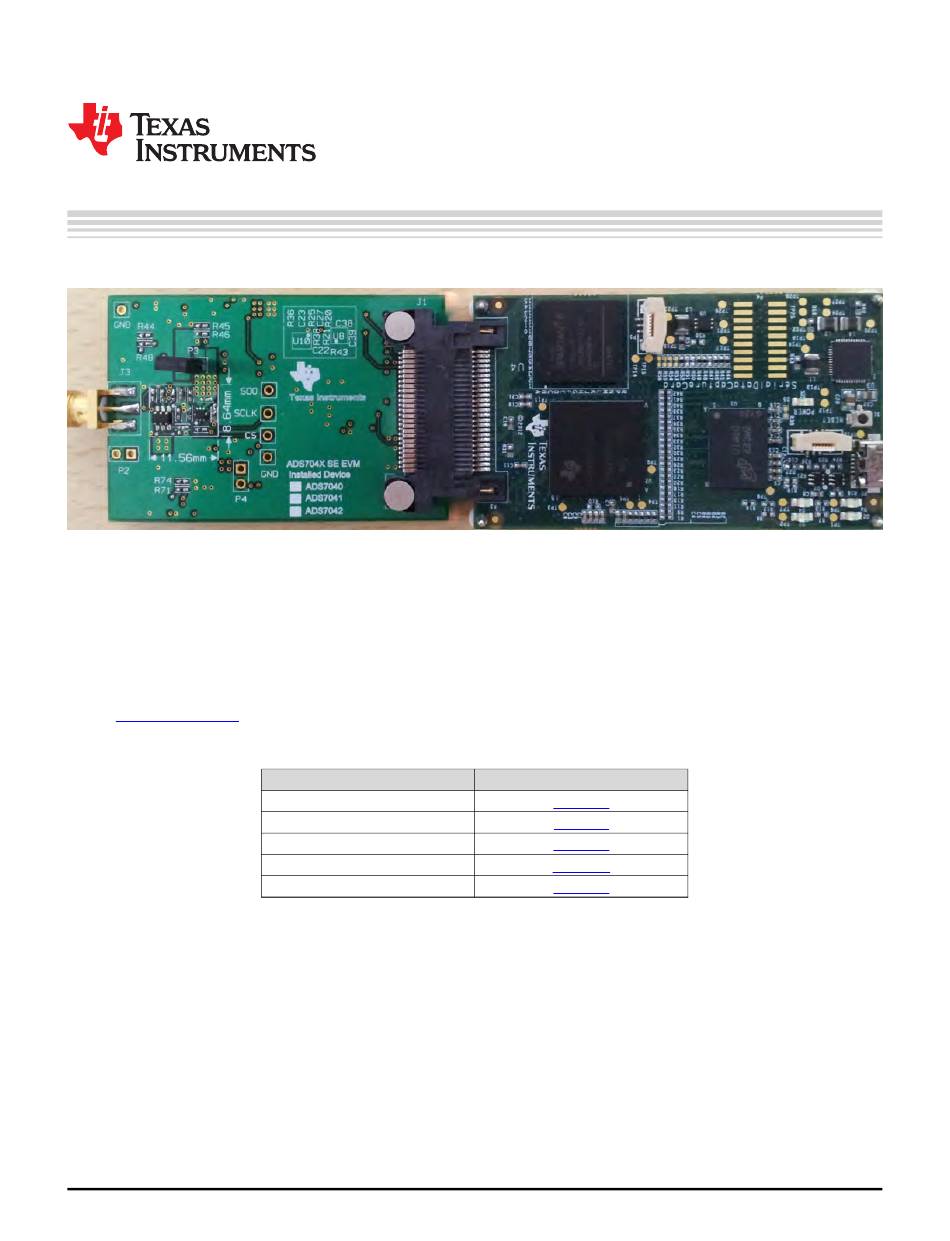

This user's guide describes the characteristics, operation and use of the ADS7041-EVM performance
demonstration kit (PDK). This kit is an evaluation platform for the ADS7041 low power, 10-bit, successive
approximation register (SAR) analog-to-digital converters (ADCs) that supports single-ended analog
inputs.
This EVM eases the evaluation of the ADS7041 device with hardware and software for computer
connectivity through universal serial bus (USB). This user's guide includes complete circuit descriptions,
schematic diagrams, and a bill of materials.
The following related documents are available through the Texas Instruments web site at
http://www.ti.com.
......................................................................................................................
1
Overview
1.1
ADS7041EVM Features
1.2
ADS7041EVM-PDK Features
2
EVM Analog Interface
3
Power Supplies
4
Digital Interface
5
ADS7041EVM-PDK Initial Setup
5.1
Default Jumper Settings
5.2
Software Installation
6
ADS7041EVM-PDK Kit Operation
6.1
About the SCC Controller Board
6.2
Loading the ADS7041EVM Software
SBAU239 – November 2014
Submit Documentation Feedback
Table 1. Related Documentation
Device
OPA835
TPS79101
REG71055
TPS62080
TPS3836K33
...........................................................................................
.....................................................................................
.......................................................................................................
..............................................................................................................
..............................................................................................................
..........................................................................................
...........................................................................................
................................................................................................
.......................................................................................
................................................................................
Copyright © 2014, Texas Instruments Incorporated
ADS7041EVM-PDK
Literature Number
SLOS713
SLVS325
SBAS221
SLVSAE8
SGLS322
Contents
...........................................................................
User's Guide
SBAU239 – November 2014
3
3
3
3
4
5
5
5
5
11
11
11
1
ADS7041EVM-PDK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments ADS7041EVM-PDK
Summary of Contents for Texas Instruments ADS7041EVM-PDK
-
Page 1: Related Documentation
This EVM eases the evaluation of the ADS7041 device with hardware and software for computer connectivity through universal serial bus (USB). This user's guide includes complete circuit descriptions, schematic diagrams, and a bill of materials. The following related documents are available through the Texas Instruments web site at http://www.ti.com. Table 1. Related Documentation... -
Page 2: Table Of Contents
List of Tables ..................... Related Documentation ....................Analog Input Connections ..................... AVDD Voltage Settings ..................... AVDD Voltage Settings ..................... Default Jumper Configurations ................... ADS7041EVM Bill of Materials ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 3: Ads7041Evm Analog Input Connections

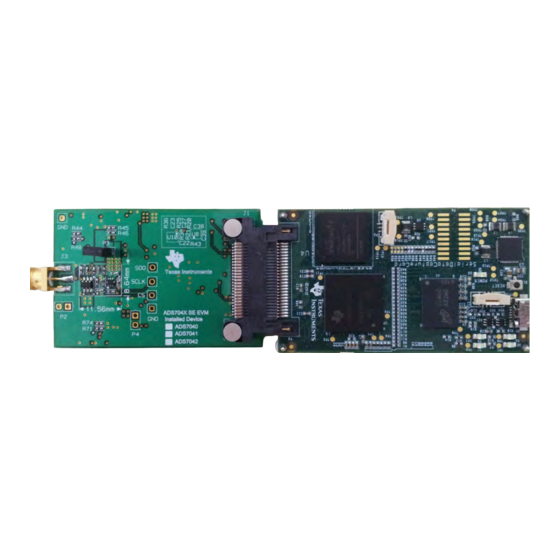

Overview The ADS7041EVM-PDK is a platform for evaluation of the ADS7041 ADC. The evaluation kit combines the ADS7041EVM board with a Simple Capture Card controller board. This controller card consists of a TI Sitara embedded microcontroller (AM3352) and a field-programmable gate array (FPGA). It provides an interface from the EVM to the computer through a universal serial bus (USB) port. -
Page 4: Analog Input Connections
1.8V to 3.6V. The DVDD operates from 1.65 V to 3.6 V, independent of the AVDD supply. The analog portion of the ADS7041EVM-PDK operates from a 5-V supply. The ADS7041EVM-PDK is configured to use the onboard regulated analog 5-V supply that in turn generates an AVDD analog supply using the low-noise TPS79101 LDO. -
Page 5: Ads7041Evm Default Jumper Settings
The ADS7041EVM has clearly marked test points for all the SPI signals to allow observation of the interface signals using an oscilloscope. ADS7041EVM-PDK Initial Setup This section presents the steps required to set up the ADS7041EVM-PDK kit before operation. Default Jumper Settings A silkscreen plot detailing the default jumper settings is shown in... -
Page 6: Bottom View Of Simple Capture Card With Microsd Memory Card Installed
Install the microSD Memory Cards on the Simple Capture Card Controller Board As mentioned in the previous section, the ADS7041EVM-PDK includes two microSD memory cards. One is installed on the microSD socket (P6) at the back of the Simple Capture Card as shown in Figure 3. -
Page 7: Connecting Ads7041Evm Board To Simple Capture Card
Capture Card to boot properly. In addition to this the microSD card on the EVM contain Simple Capture Card firmware files (app and MLO files) and the ADS7041EVM-PDK software installation files inside the ADS7041 EVM V#.#.# folder. <V#.#.#> refers to the installation software version number, and increments with software installer releases. -
Page 8: Welcome Screen And Destination Directory Screens
Figure 8. License Agreement and Start Installation Screens Step 8. A progress bar appears; this step takes a few minutes. Step 9. The progress bar is followed by an Installation Complete notice. ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 9: Progress Bar And Installation Complete Screens
Figure 10. Windows 7 Driver Installation Warning NOTE: Driver installation prompts do not appear if the Simple Capture Card driver has been installed on your system previously. SBAU239 – November 2014 ADS7041EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 10: Simple Capture Card Driver Installation
Step 2. A computer restart may be required to finish the software installation. If prompted, restart the PC to complete the installation. Figure 11. Simple Capture Card Driver Installation Figure 12. Simple Capture Card Driver Completion ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 11: Gui Display Prompt
Step 1. Make sure the EVM kit is configured and powered up as explained in Section Step 2. Start the ADS7041 EVM software. Go to Start → All Programs →Texas Instruments → ADS7041 EVM and click ADS7041 EVM to run the software. -
Page 12: Capturing Data With The Ads7041-Pdk
GUI screen; a menu with different GUI pages appears. Click on the Data Capture option in the menu as shown in Figure Figure 14. Open the Data Capture Page on the GUI ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 13: Data Capture Page
SCLK: This control sets the clock frequency used by the SPI interface to capture data. By configuring the SCLK frequency, the sampling rate of the ADS7041 is set. The ADS7041EVM-PDK software supports SCLK frequencies of 3.2 MHz to 16 MHz. In case the input in this field is beyond the capability of the device, it will be adjusted to the nearest value that can be supported. -
Page 14: Fft Analysis
Any harmonic signal greater than this number is treated as noise in the performance calculations. The typical value used in this analysis is 9 as per the ADS7041 datasheet (SBAS608). ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 15: Histogram Analysis
The Sigma indicator displays standard deviation of the data set. This value is equivalent to the RMS noise of the signal when analyzing a dc data set. SBAU239 – November 2014 ADS7041EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 16: Offset Calibration
This computed offset will remain fixed, unless the device is reset or there is a significant change in operating temperature or analog supply voltage. ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 17: Estimated Current Consumption
Troubleshooting Although the ADS7041EVM GUI rarely stops responding while the ADS7041EVM-PDK is connected, in case this does happen, unplug the USB cable from the EVM, unload the ADS7041EVM-PDK software, reconnect the ADS7041EVM-PDK to the PC and reload the ADS7041EVM software. -
Page 18: Bill Of Materials, Pcb Layout, And Schematics
Texas Instruments REG71055DDC U4, U5 1.2~5.5V,Ultralow Noise High PSRR Fast RF 100mA LDO Texas Instruments TPS79101DBVREP Linear Regulator IC, Low-power SAR ADC, RUG-8, 1.5x1.5x0.4mm Texas Instruments ADS7041IRUG ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 19 IC, 1.2A, High Efficient Step Down Converter with Snooze Texas Instruments TPS62080DSG Mode, SON-8 IC, Nanopower Supervisory Circuits, SOT23-5 Texas Instruments TPS3836K33DBVR for J2 SanDisk microSDHC™ Card - 4GB SANDISK SDSDQ-004G-A11M SBAU239 – November 2014 ADS7041EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 20: Pcb Layout
NOTE: Board layouts are not to scale. These figures are intended to show how the board is laid out; they are not intended to be used for manufacturing ADS7041EVM PCBs. Figure 20. ADS7041EVM PCB: Top Layer (L1) Figure 21. ADS7041EVM PCB: GND Layer (L2) ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 21: Ads7041Evm Pcb: Power Layer (L3)
Bill of Materials, PCB Layout, and Schematics www.ti.com Figure 22. ADS7041EVM PCB: Power Layer (L3) Figure 23. ADS7041EVM PCB: Bottom Layer (L4) SBAU239 – November 2014 ADS7041EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 22: Schematics
Bill of Materials, PCB Layout, and Schematics www.ti.com Schematics The schematics for the ADS7041EVM are appended to the end of this user's guide. ADS7041EVM-PDK SBAU239 – November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... - Page 23 0 (UN) 49.9 0 (UN) +3.3VD OPA+ 0.1µF AVDD AVDD 0.1µF SCLK DVDD SCLK DVDD OPA835IDBV AIN+ DVDD AINP VCCA VCCB 1µF 1µF 49.9 25.5 25.5 AIN- DVDD AINM OPA+ 10.0k 0.0015uF ADS7041IRUG 0.1µF SN74AVCH1T45DBVR 25.5 1.0M 0 (UN) 0.0015uF SMA-J-P-X-ST-EM1 OPA- 49.9...
