Icom IC-F1721/D Service Manual page 16

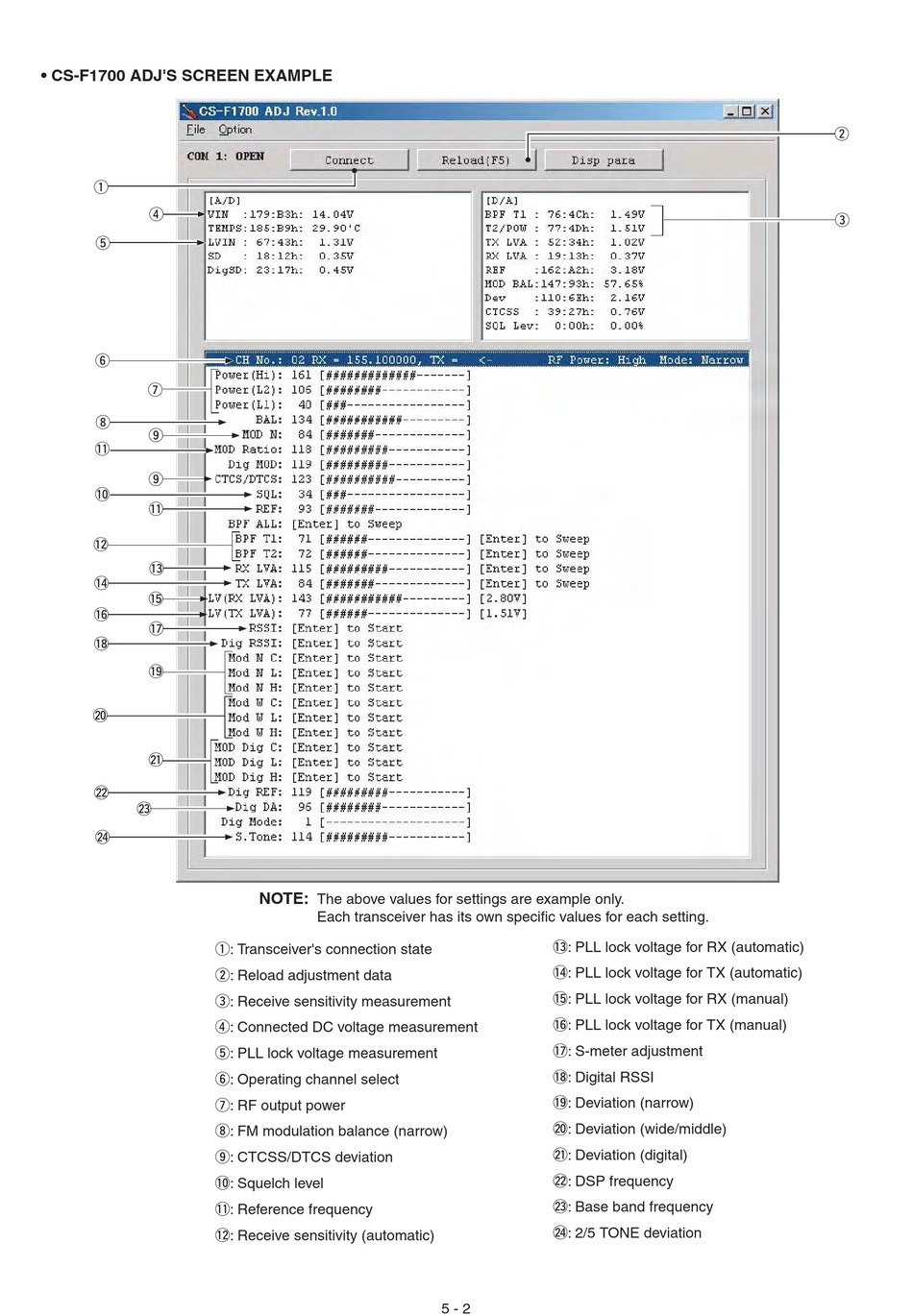

• CS-F1700 ADJ'S SCREEN EXAMPLE
q
r
t
y
u
i
o
!1
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
NOTE:
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
q: Transceiver's connection state
w: Reload adjustment data
e: Receive sensitivity measurement
r: Connected DC voltage measurement
t: PLL lock voltage measurement
y: Operating channel select
u: RF output power
i: FM modulation balance (narrow)
o: CTCSS/DTCS deviation
!0 : Squelch level
!1 : Reference frequency
!2 : Receive sensitivity (automatic)
!3 : PLL lock voltage for RX (automatic)
!4 : PLL lock voltage for TX (automatic)
!5 : PLL lock voltage for RX (manual)
!6 : PLL lock voltage for TX (manual)
!7 : S-meter adjustment
!8 : Digital RSSI
!9 : Deviation (narrow)
@0 : Deviation (wide/middle)
@1 : Deviation (digital)
@2 : DSP frequency
@3 : Base band frequency
@4 : 2/5 TONE deviation
5 - 2
