Icom IC-F510 Service Manual page 16

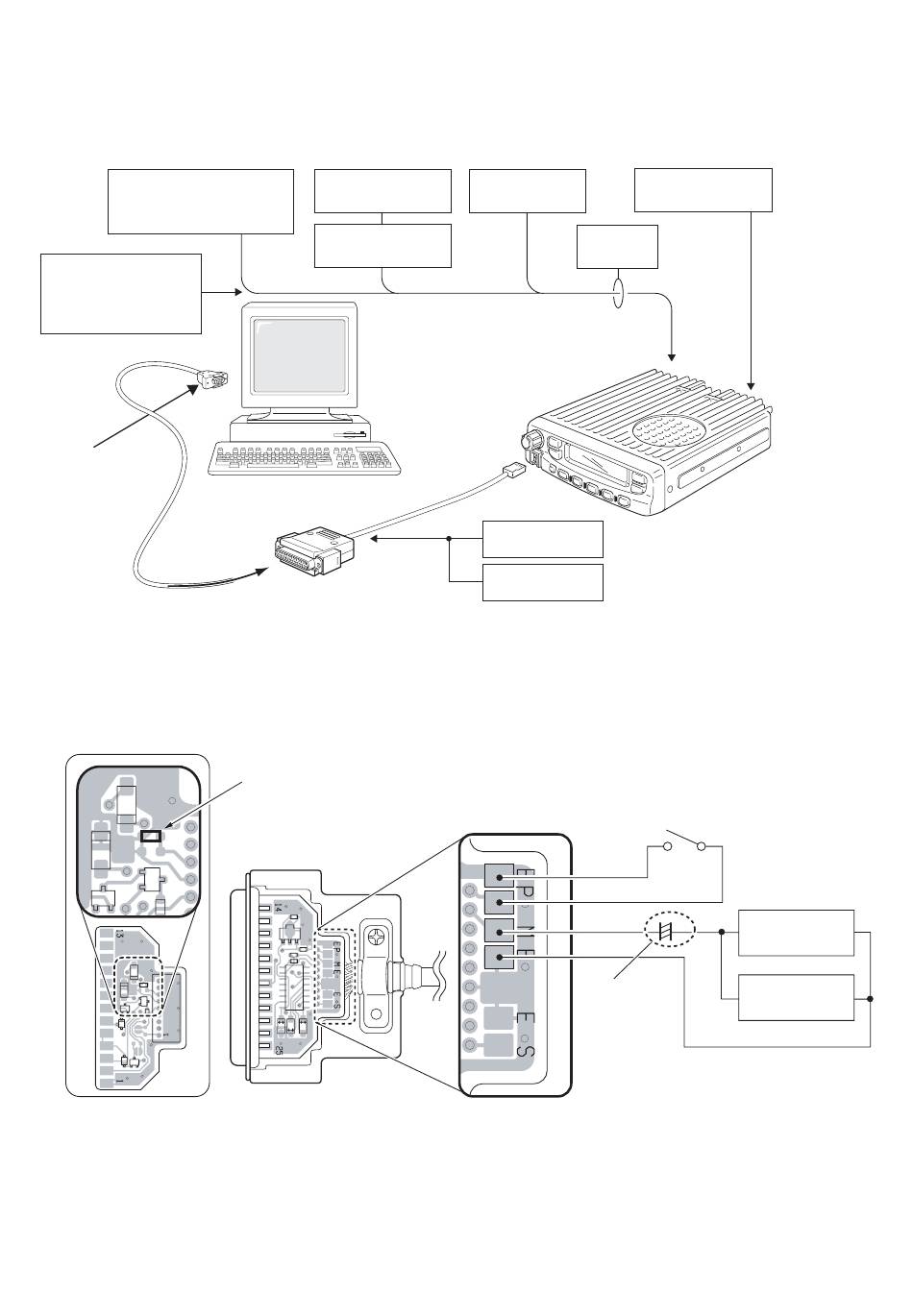

• CONNECTION
Standard signal generator
–127 to –17 dBm
(0.1 V to 32 mV)
CAUTION:
DO NOT transmit while
SSG is connected to
the antenna connector.
to an RS-232C port
DB9 female plug
RS-232C cable
(straight)
• JIG CABLE
• OPC-1122* (JIG CABLE)
FM deviation meter
(DC measurable)
Attenuator
50 dB or 60 dB
Personal
computer
OPC-1122*
(JIG CABLE)
Add a jumper wire here
OPC-1122
(Cloning cable)
RF power meter
50Ω / 1–75 W
Frequency
counter
to the antenna connector
to the MIC
connector
Audio generator
AC millivoltmeter
PTTE
PTT
MIC
MICE
Electrolytic
capacitor
47 µF
5 - 3
DC power supply
13.6 (13.2) V / 20 A
to DC cable
IC-F510 series
PTT switch
+
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
