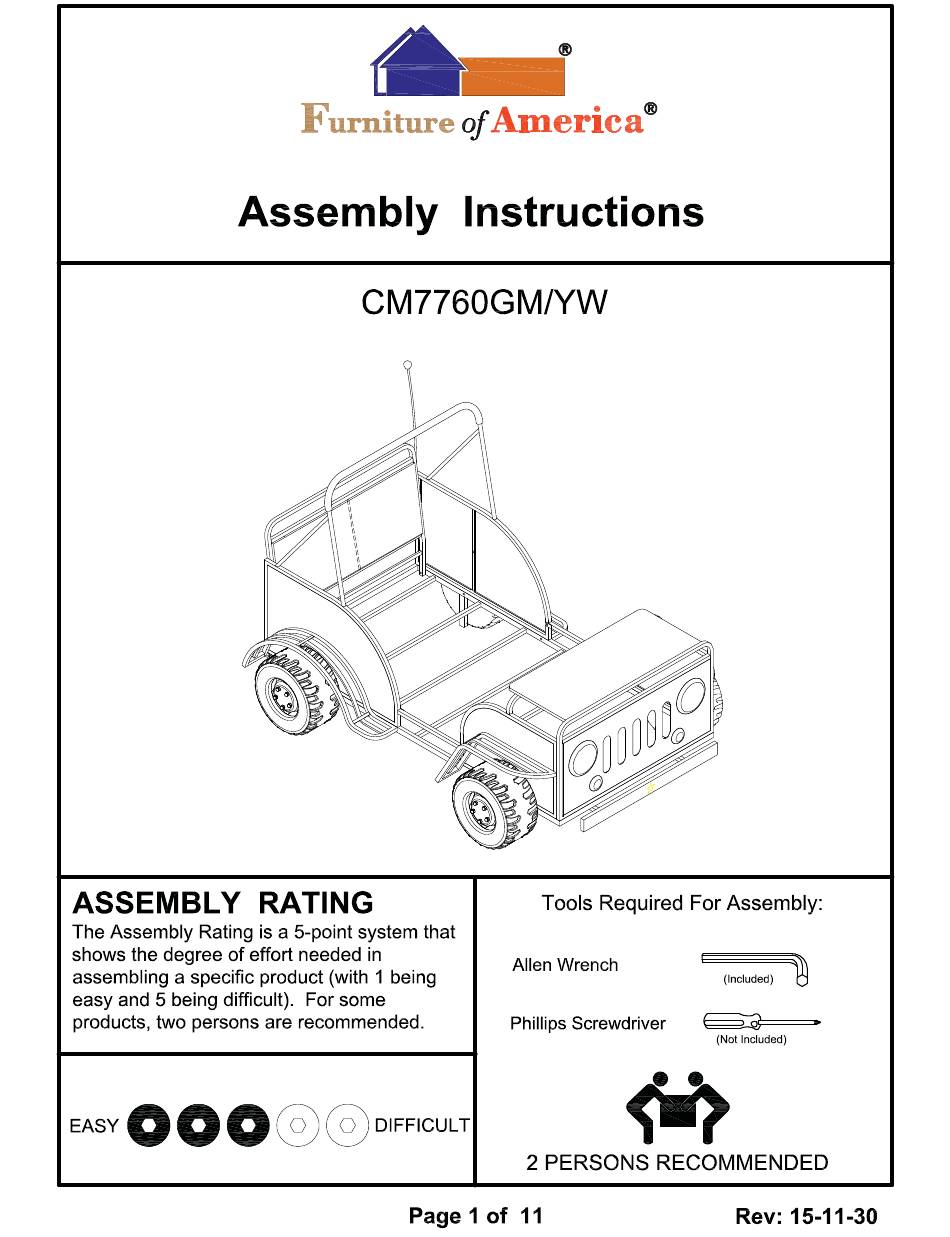

- Page 6 1. Place the bed frame (#17) face down onto a protected surface, then align the bed support legs (#20) to the holes along the side of the bed frame. Insert 2 bolts (#A) into each and secure using the Allen wrench (#L). 2.
- Page 7 1. Place the rear left and right guardrails (#3,4) onto the back sides of the bed frame. Align the holes and insert a bolt (#C) into each hole from beneath. Secure using the Allen wrench (#L). 2. Place the left and right front guard rails (#1,2) onto the front sides of the...
- Page 8 Place the headboard panel (#13) onto the rear end frame (#12), then insert a bolt (#A) into each hole and secure using the Allen wrench (#L). Place the shelf support bar (#16) onto the front guardrails (#1,2). Align the holes and insert a bolt (#C) into each end.
- Page 9 1. Place the shelf (#15) onto the shelf support bar (#16) and front end frame (#5). From beneath insert 3 screws (#F) into the support bar (#16) and secure using a Phillips screwdriver. 2. Insert 3 screws (#G) into the front end frame (#5) from beneath and secure using a Phillips screwdriver.
- Page 10 2. Insert the ends of the top tube (#7) into the top ends of the support bars (#21), then insert a bolt (#E) into each end and secure using a Phillips screwdriver. 1. Align the ends of the support bar (#21) to the top of the the rear guardrails, then insert a bolt (#B) into each end from beneath and secure...
- Page 11 1. Insert a threaded end of the stub bolt (#I) into the wheel cover (#18), turn right to tighten. Insert the stud bolt into the wheel (#19). 2. Insert the other end of the stub bolt (#I) into the holes along the left and right rear guardrails (#3,4), then apply a bolt (#H) and secure using the...
