1 / 9
MODEL #
CM7734EK/CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Bianca CM7734EK
Summary of Contents for Furniture of America Bianca CM7734EK

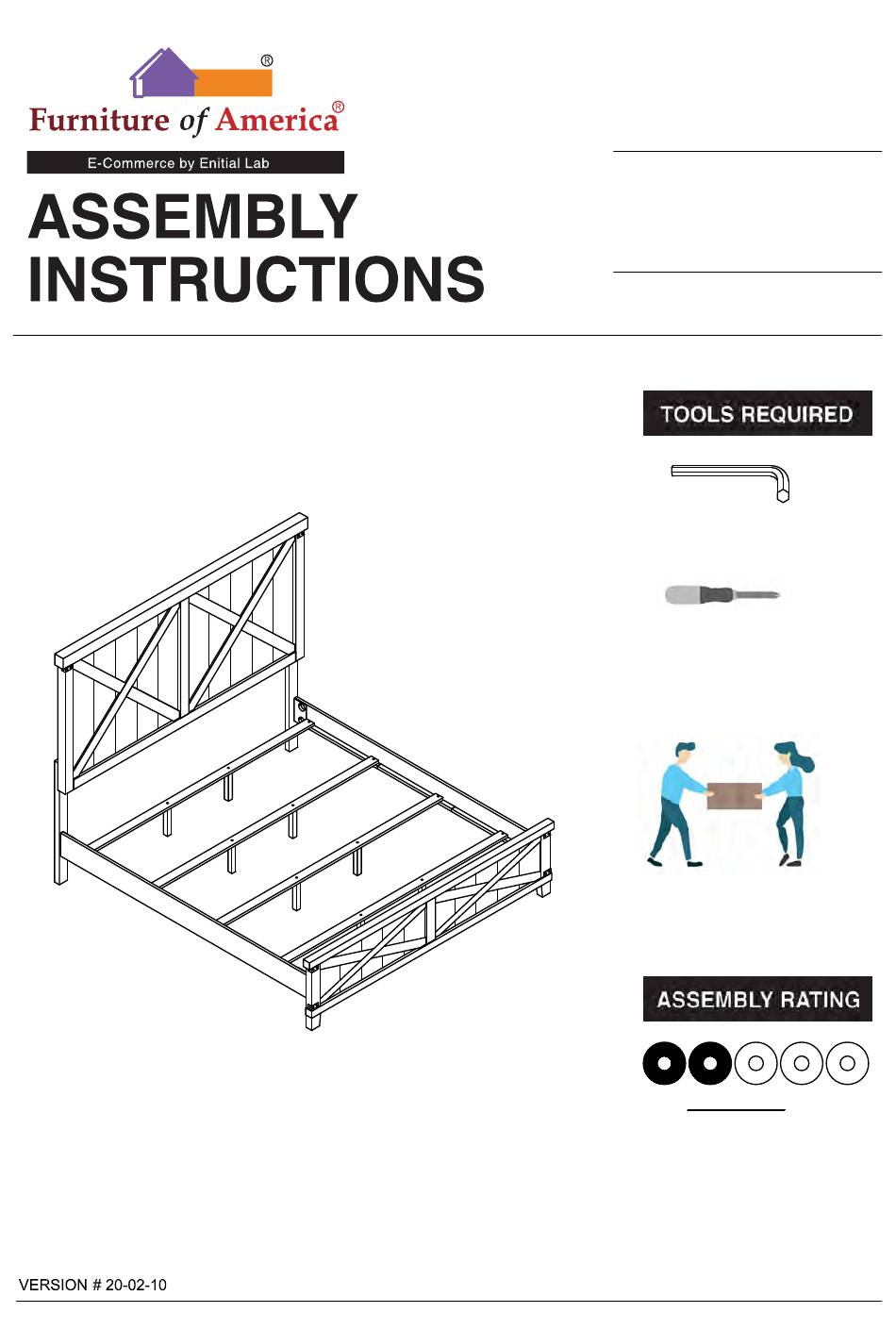

- Page 1 MODEL # CM7734EK/CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 CAL.KING BED E.KING BED CM7734EK/CK #1 1pc #2 2pcs #3 2pcs #4 1pc Bed Rail Footboard Headboard Leg Headboard (L & R) #5 4pcs #6 8pcs (Ø1/4") Bed Slat Support Leg 254x30x30mm 5 / 9...
- Page 6 #A 6pcs #B 6pcs #C 6pcs #D 1pc Bolt Ø5/16" x 2-1/4" Flat Washer Allen Wrench 4mm Lock Washer Ø5/16" Ø5/16" #E 8pcs #F 8pcs #G 8pcs #H 1pc Wood Screw Thread Bolt Hex Nut Wrench #4x1-1/4" Ø5/16 x 4" Ø5/16 x 7/8"...
- Page 7 CM7734EK&CK is packed in 3 cases Carton Disignation Part Hardware #A x 6pcs Headboard #B x 6pcs CM7734Q-HB #C x 6pcs HB Legs ( L & R) #D x 1pc Footboard CM7734Q-FB Bed Slat (4pcs) Support Leg (8pcs) #E x 6pcs #F x 8pcs Side Rail CM7734Q-R...
- Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x1pc Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs Attach threaded studs (#F) to the headboard and footboard (#4), then align side rails Part #3 x2pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Part #5 x1pc Attach support legs (#6) to the slats (#5). #6 x2pcs Part Hardware #E x8pcs Align slats (#5) to the side rails (#3), then secure by using screws (#E). 9 / 9...
