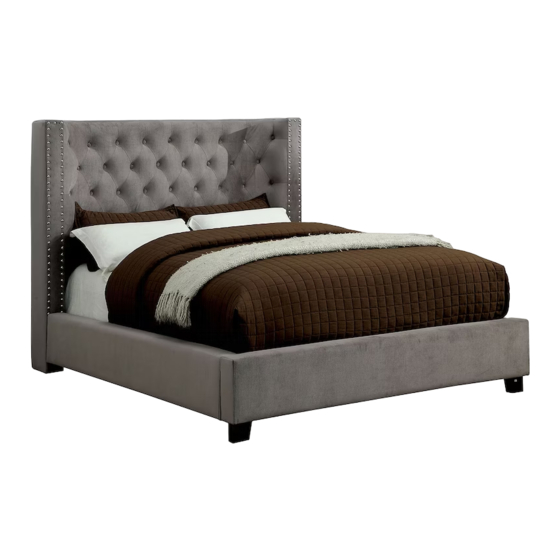

Furniture of America CM7779Q-VN Assembly Instructions Manual

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM7779Q-VN

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Wrench

2 PERSONS RECOMMENDED

Page 1 of 6

(Included)

Rev: 19-06-26

Need help?

Do you have a question about the CM7779Q-VN and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM7779Q-VN ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 6...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 2pcs Bolt Ø5/16" x 2-1/2" Headboard #2 x 2pcs #B x 8pcs Side Rail Threaded Stud Ø5/16"...
Page 4 Exploded View Align legs (#4) to footboard (#3), then secure by using bolts (#A) with washers (#C,D). #A x 2pcs #C x 2pcs #D x 2pcs Page 4 of 6...
Page 5 Attach threaded bolts (#B) to headboard (#1) and footboard (#3), then align side rails (#2) to the threaded bolts (#B) of the headboard (#1) and footboard (#3). Secure by using hex nuts (#H) with washers (#C,E). #B x 8pcs #C x 8pcs #E x 8pcs #H x 8pcs Attach support legs (#5) to slats (#6).
Page 6 Align slats (#6) to the side rails (#2), then secure by using screws (#G). #G x 6pcs ASSEMBLY IS COMPLETED Page 6 of 6...
