Summary of Contents for Furniture of America Cayla CM7779Q

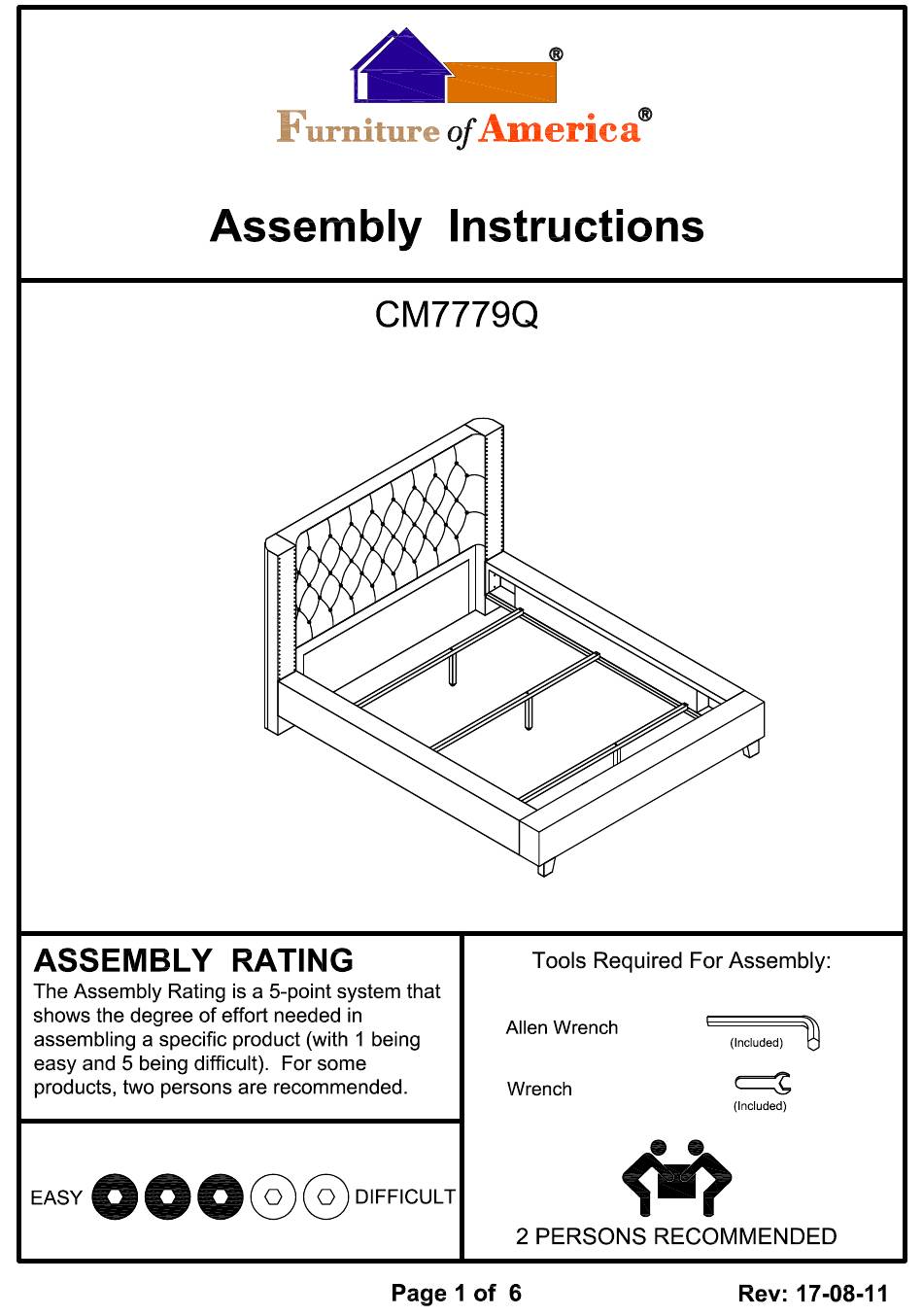

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Prepare 2 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A). Align FB legs (#4) to the bottom holes of the footboard (#3). Secure by using bolts (#A). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#F) onto bolts (#B). Align side rails (#2) to the holes of the headboard (#1) and footboard (#3).
- Page 5 Prepare 3 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align support legs (#5) to each slats (#6). Secure by using bolts (#C). Prepare 6 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A). Align slats (#6) to the holes of the side rails (#2).
- Page 6 For more information contact our team: service.ec@foagroup.com...
- Page 9 Prepare 2 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A). Align FB legs (#4) to the bottom holes of the footboard (#3). Secure by using bolts (#A). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#F) onto bolts (#B). Align side rails (#2) to the holes of the headboard (#1) and footboard (#3).
- Page 10 Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align support legs (#5) to each slats (#6). Secure by using bolts (#C). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A). Align slats (#6) to the holes of the side rails (#2).
