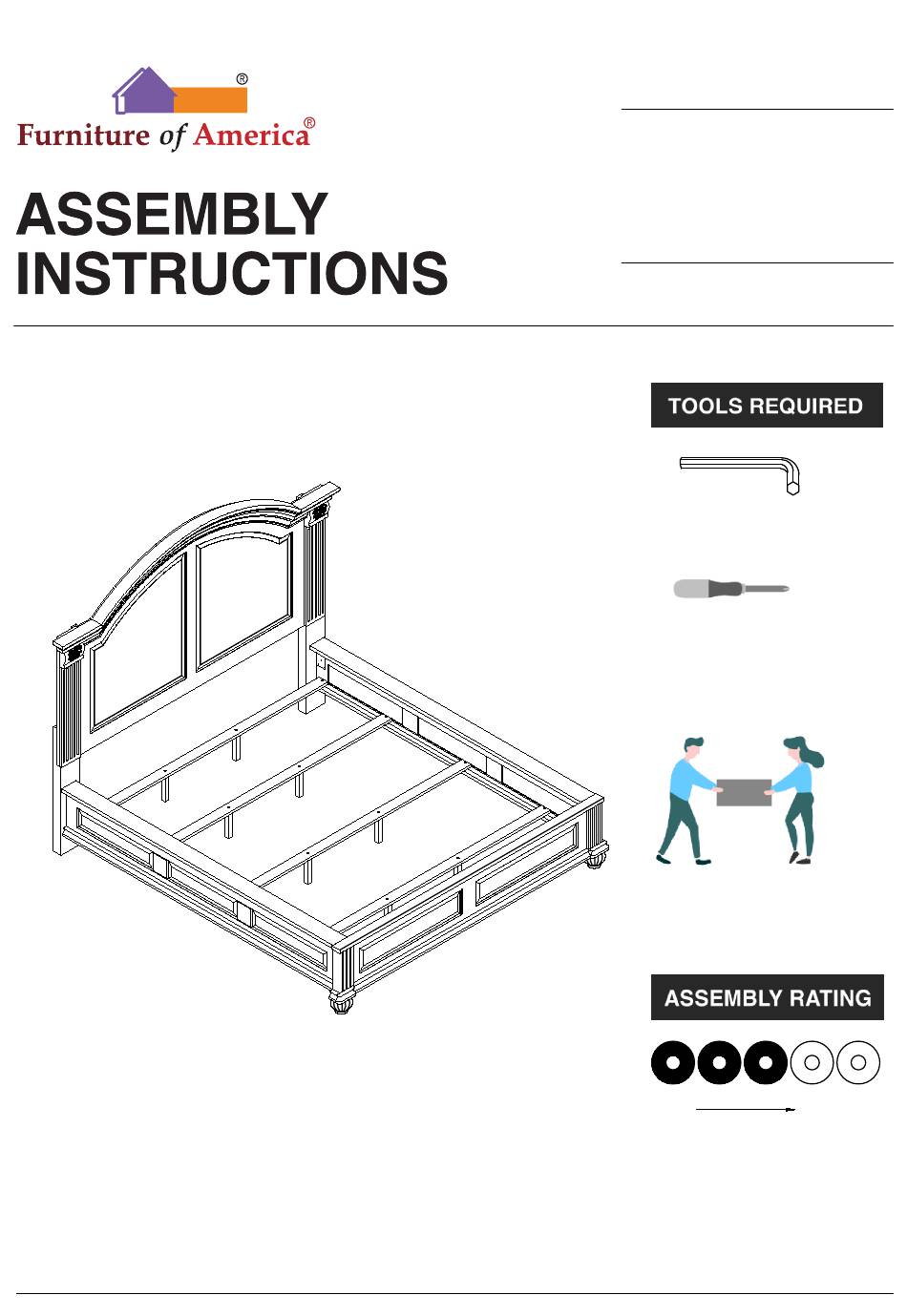

VERSION # 23-04-1 9
1 / 10
MODEL #
CM7738CK
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7738CK
Summary of Contents for Furniture of America CM7738CK
- Page 1 MODEL # CM7738CK Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 10...
- Page 5 CM7738CK #1 1pc #2 2pcs #3 1pc #4 2pcs Side rail Headboard HB Legs(L/R) Footboard #5 4pcs #6 8pcs (Ø1/4") Slat Slat support leg (180x30x30mm) #D 1pc #A 8pcs #B 8pcs #C 8pcs Lock washer Ø 5/16" Flat washer Ø 5/16"...
-
Page 6: Exploded View
Exploded View 6 / 10... - Page 7 CM7738CK is packed in 3 cases Disignation Part Hardware Carton #A x 8pcs Headboard #B x 8pcs CM7738CK-HB #C x 8pcs HB Legs ( L & R) #D x 1pc (2pcs) Footboard CM7738CK-FB #E x 8pcs Side Rail (2pcs) CM7738CK-R...
- Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#2L/#2R) to the headboard (#1) and secure using bolts (#A) with Lock washer (#B) and Flat washer (#C). Part #1 x1pc Part #2 x2pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Insert and hook the Side rail (#4) to the HB Part #3 x1pc Legs (#2) and the Footboard (#3).
- Page 9 ASSEMBLY INSTRUCTIONS Attach the Slat support leg (#6) to the Slat (#5). Part #5 x1pc Part #6 x2pcs Hardware #E x8pcs Align the slats (#5) to the Side rail (#4) and secure using Screw (#E). 9 / 10...
- Page 10 ASSEMBLY INSTRUCTIONS 10 / 10...
