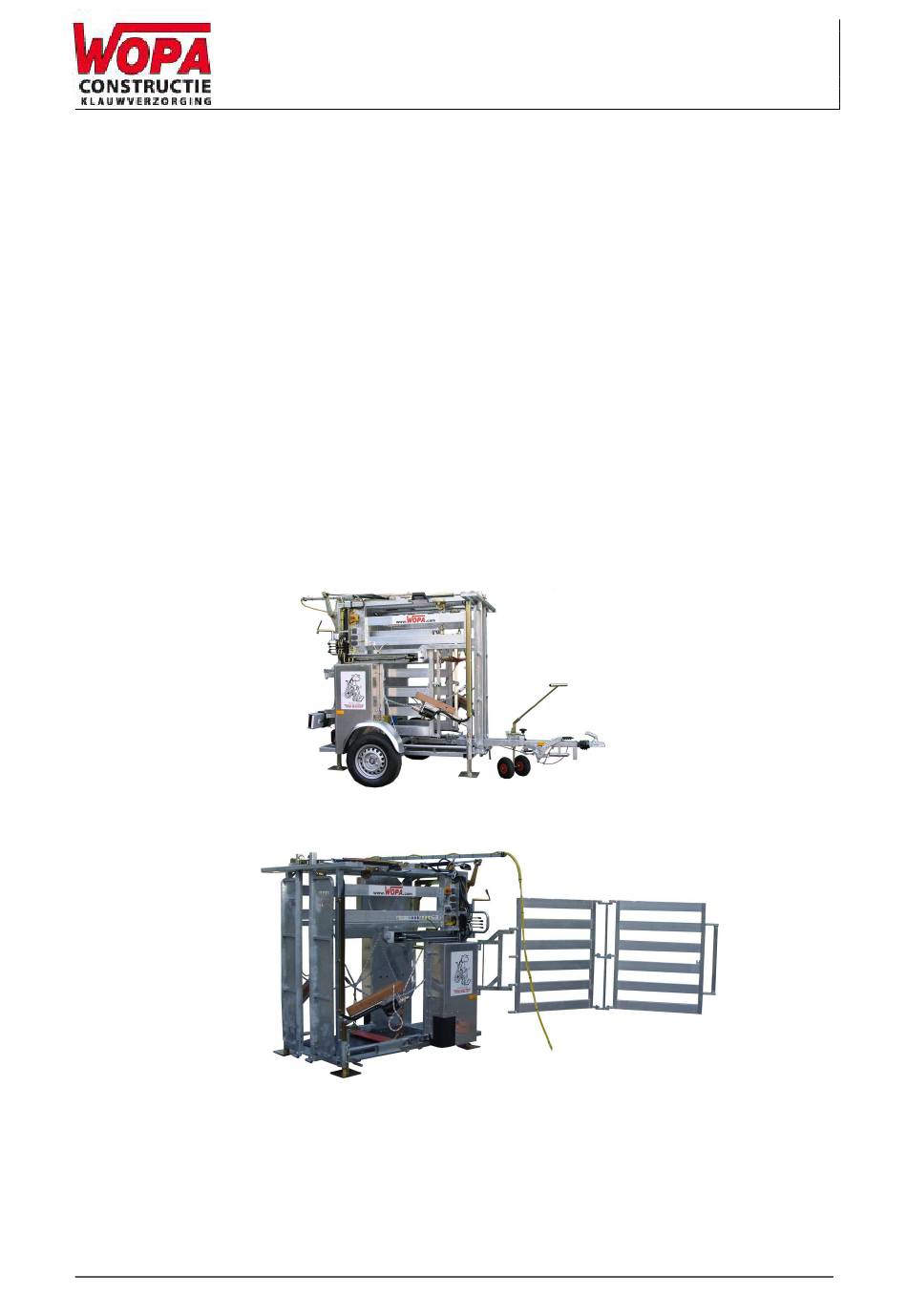

- Page 1 User Manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 User manual Hoof trimming crush SA0051/SA0051B...
- Page 2 No part of this publication may be reproduced, stored in a search system or transferred in any form whatsoever, either electronically or mechanically, or by photocopying or recording, or in any other way whatsoever without prior written consent from Wopa Constructiebedrijf BV (hereinafter in this manual also referred to as “Wopa”).
-
Page 3: Introduction
Version: 21-02-17 Introduction Wopa Constructiebedrijf BV specialises in development and manufacture of hoof trimming and treatment crushes for cows and bulls for professional users as well as for cattle farmers. Our crushes are developed and manufactured in the highest possible quality, according to the strictest requirements as far as safety, user convenience, animal welfare and hygiene are concerned, always striving for an optimum. -
Page 4: Warranty
The warranty is subject to the following limitations. The warranty period for products supplied by Wopa is 12 months from the date on the purchasing document. The warranty is limited to production and material errors and therefore does not cover any breakdowns due to a part of the product exposed to any type of wear. -
Page 5: Table Of Contents
EC CONFORMITY DECLARATION (COPY) ...................... 7 OVERVIEW OF SYMBOLS ..........................8 PICTOGRAMS ..............................9 TECHNICAL INFORMATION........................10 DESCRIPTION OF THE INSTALLATION ....................11 2.1. SA0051/SA0051B ..........11 ESCRIPTION OF THE MAIN COMPONENTS 2.2..................... 13 LECTRICAL INSTALLATION 2.3...................... 14 YDRAULIC INSTALLATION SAFETY .............................. - Page 6 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 APPENDIX .............................. 32 8.1..........................32 OGBOOK LIJST MET AFBEELDINGEN 1: O SA0051/SA0051B ..................... 11 IGURE VERVIEW ................. 13 IGURE OVERVIEW OF THE ELECTRICAL INSTALLATION ................14 IGURE OVERVIEW OF THE HYDRAULIC INSTALLATION (SA0051) ....18...
-
Page 7: Ec Conformity Declaration (Copy)
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 EC conformity declaration (copy) Wopa Constructiebedrijf BV Rector Hulshofstraat 10 7135 JV Harreveld The Netherlands : +31-(0)544 372415 : +31-(0)544 372445 Email: info@wopa.com Website: www.wopa.com declare, entirely under our own responsibility, that the product:... -
Page 8: Overview Of Symbols
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Overview of symbols The following symbols are used for all actions that jeopardise the safety of the user and/or technician and require caution. Attention! Hazard: High voltage! Hazard: High temperature! Tip: Offers quick insight or tips to carry out certain actions more easily and simply. -
Page 9: Pictograms
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Pictograms A number of pictograms and alerts are affixed to the installation to indicate possible risks to users, among other things. Pictogram Description Location Type plate On the machine frame Read the user manual ... -
Page 10: Technical Information
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 1. Technical information SA0051 SA0051B General Ambient temperature during - 10 to 35 - 10 to 35 ˚C operation Noise production < 75 < 75 dB(A) Machine dimensions Length 2100 2100 Width 1750 1500... -
Page 11: Description Of The Installation
The SA0051 and SA0051B were developed especially for dairy cattle and beef cattle hoof trimming. Version SA0051 is equipped with an axle with a draw bar and is suitable for transport on public roads. The main components of the crush are shown in the illustration below:... - Page 12 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Main components SA0051/SA0051B: Figure 1 Component Description Section Front gate The front gate can be set to 3 positions with the hydraulic controls: Entirely open: the cow can exit the crush at the ...
-
Page 13: Electrical Installation
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 2.2. Electrical installation FUNCTION The electrical installation supplies the power for the hydraulic power unit, lighting and sockets. See the electrical diagram in the control panel of every crush for the rest of the ... -
Page 14: Hydraulic Installation
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 2.3. Hydraulic installation FUNCTION The hydraulic installation supplies the power for the various functions. See the hydraulic diagram for a detailed description of the installation. The placement of the control components on your installation may differ from the photo below. - Page 15 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Component Description Section / Figure 3 location animal is limited. Belly strap Hind leg Step (option) Lift (option). Left valve block In addition to the functions of the right valve block,...
-
Page 16: Safety
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 3. Safety 3.1. General The guarantee will lapse and no liability will be accepted in the event of damage caused by repairs and/or modifications not authorised by the supplier. In the event of faults please contact the supplier. -
Page 17: During Normal Use
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 3.2. During normal use Check before commencing operations that no work is being carried out on the installation and that it is ready for use. Unauthorised persons must not enter the operational area of the installation. It ... -
Page 18: Installation
Place the machine on a level and stable substrate Take account of the instructions in Section 3 when carrying out any activity. Failure to follow these may lead to serious injury. Figure 4: details of conversion from transport set-up to working set-up (SA0051) Page 18 of 33... - Page 19 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 What to do Action Result Tip the nose wheel Ensure that the crush is resting on the downwards. nose wheel. Connect the crush. See 4.2,5.1 Lower the adjusting Lower the 2 front adjusting feet ...
-
Page 20: Connect The Machine
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Remove the lighting Remove the lighting board from the board. crush. Lower the rear Lower the 2 rear adjusting feet (Figure adjusting feet. 4:1) by pushing them down with the foot and lock them at the desired height with the chain. -
Page 21: Operation
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 5. Operation CAUTION Take account of the instructions in Section 3 when carrying out any activity. Failure to follow these instructions may lead to serious injury. 5.1. Starting up What to do Action Result Switch on the power. -
Page 22: Production
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 5.3. Production What to do Action Result Check that the crush See Sections 5.1. is ready for use. Place the front gate Open the front gate so that the head ready. of the animal can pass through but not its withers. -
Page 23: Hook Up The Front Leg
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 5.4. Hook up the front leg. CAUTION To avoid injury to the front leg the rope must be applied correctly. (see Figure 5) Figure 5: detail of hooking up front leg Page 23 of 33... -
Page 24: Maintenance
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 6. Maintenance CAUTION! Always disconnect the machine from the power supply by pulling out the plug. Where a hydraulic accumulator is present this must be depressurised. Test the installation on completion of maintenance work or repairs to ensure that it can be used again safely. - Page 25 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Drawbar Play in ball mounting. Replace where minor play is evident, or see markers on the side of the ball mounting. Ball and coupling in crush. Check and clean Check the latch. There must always be slight tension on the latch.
-
Page 26: Clean The Machine
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 6.2. Clean the machine. EXPLANATION A high-pressure cleaner may be used for cleaning. Avoid bearings, winches and motors when cleaning with a high-pressure cleaner. Spraying in these areas may result in a sharp reduction in service life. -
Page 27: Check Oil Level/Replace Oil
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 EXPLANATION This instruction applies only where a braked axle is fitted. Play in the brakes will increase as the brake shoes wear. Figure 7: detail of brake adjustment What to do Action... - Page 28 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Figure 8: details of filling of hydraulic unit Emptying the accumulator/gauging the oil level What to do Action Result Retract the cylinders. Put the cylinders in the installation in their retracted position by operating the valves.
-
Page 29: Check Play In The Wheels
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Supplier Winter oil Summer oil BP Autran D2103 Energol HLP-HM 68 Agip ATF D2103 OSO 68 Aral ATF 22 Vitam GF 68 Beverol ... -
Page 30: Check The Shaft Bolts
Figure 10: Details of shaft bolt torque settings 6.8. Parts EXPLANATION Consult the website at www.wopa.com for information on the available options and the parts available to order. Page 30 of 33... -
Page 31: Disposal As Waste
User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 7. Disposal as waste Oil and components must not be disposed of as domestic waste. When replacing components or oil or at the end of the machines service life, ensure that all materials are collected and destroyed or reused in a legal and environmentally friendly manner. - Page 32 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 8. Appendix 8.1. Logbook The logbook must include the following: The annual maintenance work Major replacements and any accidents Modifications Tests on emergency stop buttons and safety features Date: Carried out by:...
- Page 33 User manual Hoof trimmingcrush:SA0051/SA0051B Version: 21-02-17 Date: Carried out by: Description: (authority, (nature of the activities, components replaced) technician) Page 33 of 33...
