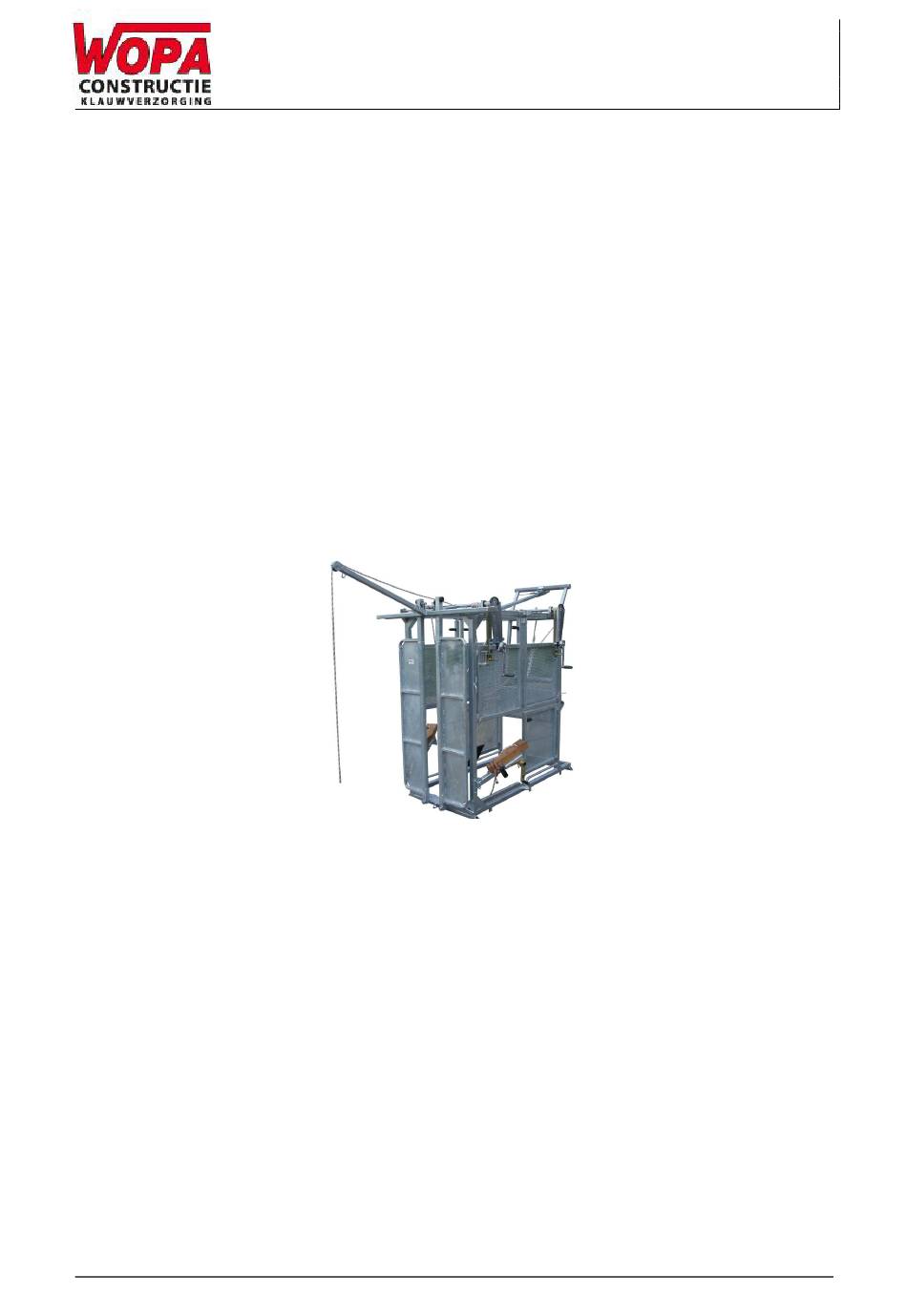

- Page 1 User Manual Treatmentcrush:SA0038 Version: 24-09-14 User manual Treatment crush SA0038...
- Page 2 No part of this publication may be reproduced, stored in a search system or transferred in any form whatsoever, either electronically or mechanically, or by photocopying or recording, or in any other way whatsoever without prior written consent from Wopa Constructiebedrijf BV (hereinafter in this manual also referred to as “Wopa”).
-
Page 3: Introduction
Version: 24-09-14 Introduction Wopa Constructiebedrijf BV specialises in development and manufacture of hoof trimming and treatment crushes for cows and bulls for professional users as well as for cattle farmers. Our crushes are developed and manufactured in the highest possible quality, according to the strictest requirements as far as safety, user convenience, animal welfare and hygiene are concerned, always striving for an optimum. -
Page 4: Warranty
The warranty is subject to the following limitations. The warranty period for products supplied by Wopa is 12 months from the date on the purchasing document. The warranty is limited to production and material errors and therefore does not cover any breakdowns due to a part of the product exposed to any type of wear. -
Page 5: Table Of Contents
EC CONFORMITY DECLARATION (COPY) ...................... 6 OVERVIEW OF SYMBOLS ..........................7 PICTOGRAMS ..............................8 TECHNICAL INFORMATION........................9 DESCRIPTION OF THE INSTALLATION ....................10 2.1. SA0038 ..............10 ESCRIPTION OF THE MAIN COMPONENTS 2.2..................... 12 LECTRICAL INSTALLATION SAFETY ..............................14 3.1. -
Page 6: Ec Conformity Declaration (Copy)
User manual Treatmentcrush:SA0038 Version: 24-09-14 EC conformity declaration (copy) Wopa Constructiebedrijf BV Rector Hulshofstraat 10 7135 JV Harreveld The Netherlands : +31-(0)544 372415 : +31-(0)544 372445 Email: info@wopa.com Website: www.wopa.com declare, entirely under our own responsibility, that the product: machine :... -
Page 7: Overview Of Symbols
User manual Treatmentcrush:SA0038 Version: 24-09-14 Overview of symbols The following symbols are used for all actions that jeopardise the safety of the user and/or technician and require caution. Attention! Hazard: High voltage! Hazard: High temperature! Tip: Offers quick insight or tips to carry out certain actions more easily and simply. -
Page 8: Pictograms
User manual Treatmentcrush:SA0038 Version: 24-09-14 Pictograms A number of pictograms and alerts are affixed to the installation to indicate possible risks to users, among other things. Pictogram Description Location Type plate On the machine frame Read the user manual ... -
Page 9: Technical Information
User manual Treatmentcrush:SA0038 Version: 24-09-14 1. Technical information SA0038 General Ambient temperature during - 10 to 35 ˚C operation Noise production < 75 dB(A) Machine dimensions Length 2360 Width 1500 Height 2350 Weight Maximum product dimensions Length 3800 Width 1500... -
Page 10: Description Of The Installation
2.1. Description of the main components SA0038 FUNCTION The SA0038 was developed especially for dairy cattle hoof trimming and treatment. After the cow is strapped in the crush, the parts to be treated can be accessed by opening the relevant side gates. - Page 11 User manual Treatmentcrush:SA0038 Version: 24-09-14 Figure 1 Component Description Section If one wants to open the front gate, it can be done by turning the lever clockwise. Manual hind leg winch After the strap is attached round the hind leg as ...
-
Page 12: Electrical Installation
User manual Treatmentcrush:SA0038 Version: 24-09-14 2.2. Electrical installation FUNCTION The electrical installation provides power to the electric winches and the sockets (as an option). See the electrical diagram in the switch box on the crush for the rest of the ... - Page 13 User manual Treatmentcrush:SA0038 Version: 24-09-14 Figure 2 Component Description Section / location Hind legs up/down Front legs and hind legs up/down Page 13 of 25...
-
Page 14: Safety
User manual Treatmentcrush:SA0038 Version: 24-09-14 3. Safety 3.1. General The guarantee will lapse and no liability will be accepted in the event of damage caused by repairs and/or modifications not authorised by the supplier. In the event of faults please contact the supplier. -
Page 15: During Normal Use
User manual Treatmentcrush:SA0038 Version: 24-09-14 3.2. During normal use Check before commencing operations that no work is being carried out on the installation and that it is ready for use. Unauthorised persons must not enter the operational area of the installation. It ... -
Page 16: Installation
User manual Treatmentcrush:SA0038 Version: 24-09-14 4. Installation EXPLANATION Consult the technical data and the circuit diagram provided for the correct specifications. 4.1. Location CAUTION The machine must be transported and installed upright. Place the machine on a level and stable substrate or on a platform (LxWxH: 3.2 x 1.1x 0.25 m). -
Page 17: Operation
User manual Treatmentcrush:SA0038 Version: 24-09-14 5. Operation CAUTION Take account of the instructions in Section 3 when carrying out any activity. Failure to follow these instructions may lead to serious injury. 5.1. Starting up What to do Action Result Switch on the power. -
Page 18: Production
User manual Treatmentcrush:SA0038 Version: 24-09-14 5.3. Production What to do Action Result Check that the crush See Section 5.1. is ready for use. Place the front gate Open the front gate so that the head ready. of the animal can pass through but not its withers. -
Page 19: Hook Up The Front Leg
User manual Treatmentcrush:SA0038 Version: 24-09-14 5.4. Hook up the front leg. CAUTION To avoid injury to the front leg the rope must be applied correctly. (see Figure 3) Figure 3: detail of hooking up front leg Page 19 of 25... -
Page 20: Maintenance
User manual Treatmentcrush:SA0038 Version: 24-09-14 6. Maintenance CAUTION! Always disconnect the machine from the power supply by pulling out the plug. Where a hydraulic accumulator is present this must be depressurised. Test the installation on completion of maintenance work or repairs to ensure that it can be used again safely. -
Page 21: Clean The Machine
User manual Treatmentcrush:SA0038 Version: 24-09-14 6.2. Clean the machine. EXPLANATION A high-pressure cleaner may be used for cleaning. Avoid bearings, winches and motors when cleaning with a high-pressure cleaner. Spraying in these areas may result in a sharp reduction in service life. - Page 22 User manual Treatmentcrush:SA0038 Version: 24-09-14 EXPLANATION Consult the website at www.wopa.com for information on the available options and the parts available to order. Page 22 of 25...
-
Page 23: Disposal As Waste
User manual Treatmentcrush:SA0038 Version: 24-09-14 7. Disposal as waste Oil and components must not be disposed of as domestic waste. When replacing components or oil or at the end of the machines service life, ensure that all materials are collected and destroyed or reused in a legal and environmentally friendly manner. -
Page 24: Appendix
User manual Treatmentcrush:SA0038 Version: 24-09-14 8. Appendix 8.1. Logbook The logbook must include the following: The annual maintenance work Major replacements and any accidents Modifications Tests on emergency stop buttons and safety features Date: Carried out by:... - Page 25 User manual Treatmentcrush:SA0038 Version: 24-09-14 Date: Carried out by: Description: (authority, (nature of the activities, components replaced) technician) Page 25 of 25...
