Summary of Contents for Wopa SA0026

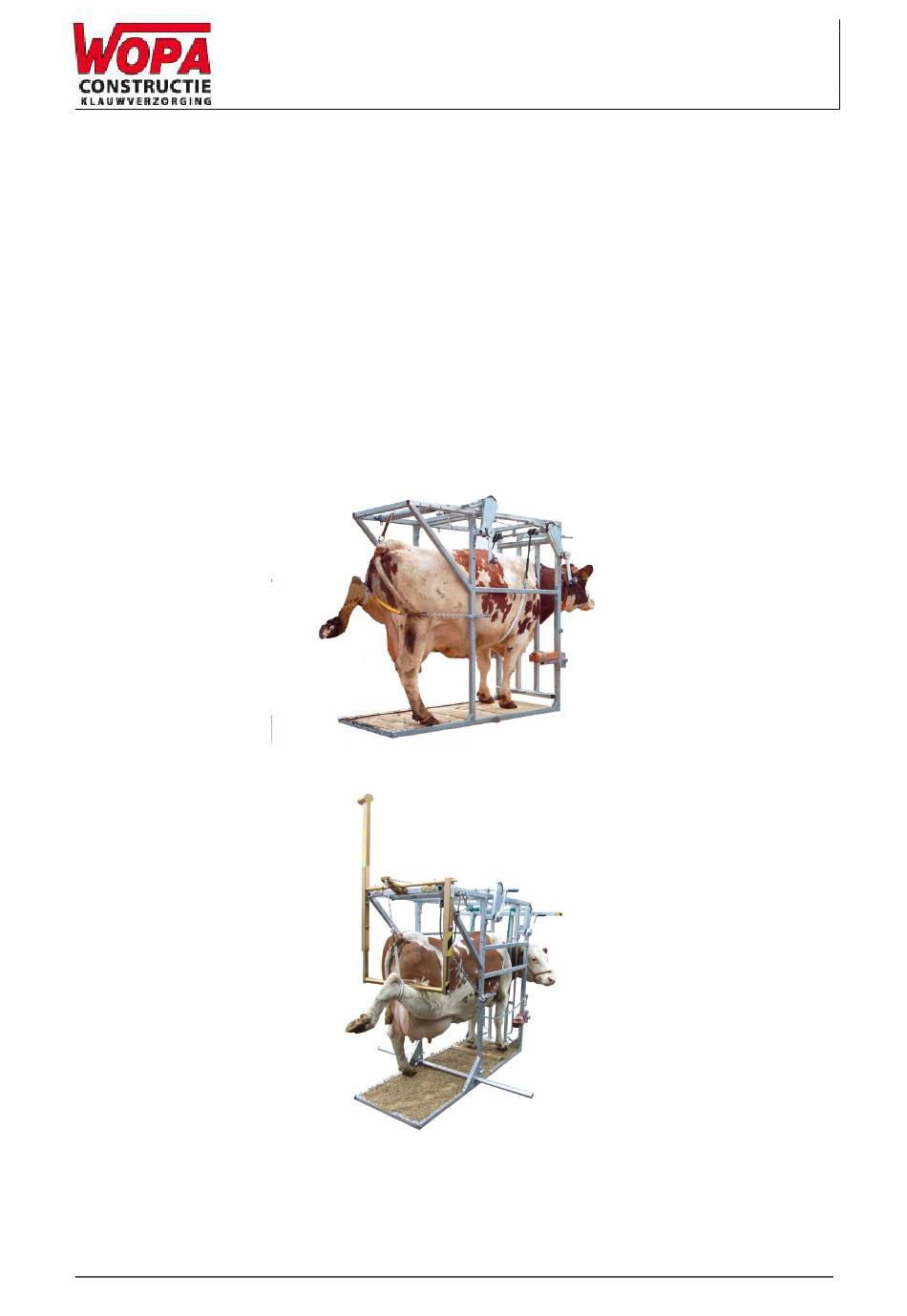

- Page 1 User Manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 User manual Hoof trimming crush SA0018/SA0022/SA0026...
- Page 2 No part of this publication may be reproduced, stored in a search system or transferred in any form whatsoever, either electronically or mechanically, or by photocopying or recording, or in any other way whatsoever without prior written consent from Wopa Constructiebedrijf BV (hereinafter in this manual also referred to as “Wopa”).
-
Page 3: Introduction
Version: 24-09-14 Introduction Wopa Constructiebedrijf BV specialises in development and manufacture of hoof trimming and treatment crushes for cows and bulls for professional users as well as for cattle farmers. Our crushes are developed and manufactured in the highest possible quality, according to the strictest requirements as far as safety, user convenience, animal welfare and hygiene are concerned, always striving for an optimum. -
Page 4: Warranty
The warranty is subject to the following limitations. The warranty period for products supplied by Wopa is 12 months from the date on the purchasing document. The warranty is limited to production and material errors and therefore does not cover any breakdowns due to a part of the product exposed to any type of wear. -
Page 5: Table Of Contents
EC CONFORMITY DECLARATION (COPY) ...................... 6 OVERVIEW OF SYMBOLS ..........................7 PICTOGRAMS ..............................8 TECHNICAL INFORMATION........................9 DESCRIPTION OF THE INSTALLATION ....................10 2.1. SA0018/SA0022/SA0026 ........10 ESCRIPTION OF THE MAIN COMPONENTS 2.2..................... 12 LECTRICAL INSTALLATION SAFETY ..............................14 3.1. -
Page 6: Ec Conformity Declaration (Copy)
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 EC conformity declaration (copy) Wopa Constructiebedrijf BV Rector Hulshofstraat 10 7135 JV Harreveld The Netherlands : +31-(0)544 372415 : +31-(0)544 372445 Email: info@wopa.com Website: www.wopa.com declare, entirely under our own responsibility, that the product:... -
Page 7: Overview Of Symbols
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 Overview of symbols The following symbols are used for all actions that jeopardise the safety of the user and/or technician and require caution. Attention! Hazard: High voltage! Hazard: High temperature! Tip: Offers quick insight or tips to carry out certain actions more easily and simply. -
Page 8: Pictograms
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 Pictograms A number of pictograms and alerts are affixed to the installation to indicate possible risks to users, among other things. Pictogram Description Location Type plate On the machine frame Read the user manual ... -
Page 9: Technical Information
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 1. Technical information SA0018 SA0022 SA0026 General Ambient temperature during - 10 to 40 - 10 to 40 - 10 to 40 ˚C operation Noise production < 75 < 75 < 75 dB(A) Machine dimensions... -
Page 10: Description Of The Installation

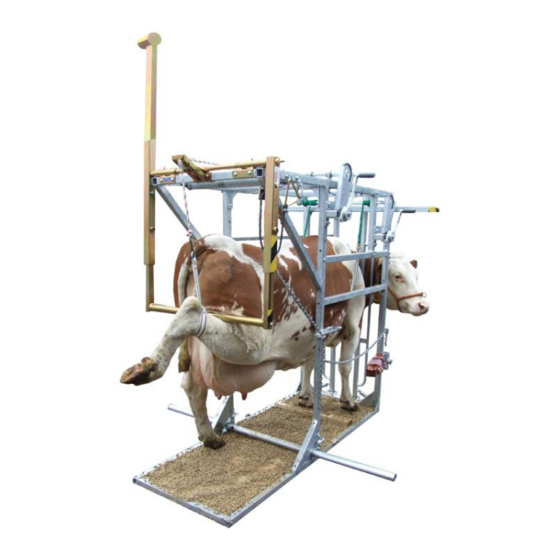

2.1. Description of the main components SA0018/SA0022/SA0026 FUNCTION The SA0018, SA0022 and SA0026 were developed especially for dairy cattle hoof trimming in the barn. The main components of the crush are shown in the illustration below: Figure 1: Overview SA0018/SA0022/SA0026... - Page 11 Another option is to equip it with a front leg support with electric winch. Rump bar An alternative to the rump chain is the SA0026 (SA0026) equipped with a spring-loaded rump bar. After the cow has been moved into the crush, ...
-
Page 12: Electrical Installation
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 2.2. Electrical installation FUNCTION The electrical installation provides power to the electric winches and the sockets (as an option). See the electrical diagram in the switch box on the crush for the rest of the ... - Page 13 User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 Figure 2 Component Description Section / location Belly strap up/down Hind legs up/down Front legs and hind legs up/down Page 13 of 26...
-
Page 14: Safety
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 3. Safety 3.1. General The guarantee will lapse and no liability will be accepted in the event of damage caused by repairs and/or modifications not authorised by the supplier. In the event of faults please contact the supplier. -
Page 15: During Normal Use
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 3.2. During normal use Check before commencing operations that no work is being carried out on the installation and that it is ready for use. Unauthorised persons must not enter the operational area of the installation. It ... -
Page 16: Installation
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 4. Installation EXPLANATION Consult the technical data and the circuit diagram provided for the correct specifications. 4.1. Location CAUTION The machine must be transported and installed upright. Place the machine on a level and stable substrate Take account of the instructions in Section 3 when carrying out any activity. -
Page 17: Connect The Machine
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 4.2. Connect the machine. CAUTION Check that the voltage specified on the machine plate matches the mains supply. The machine must always be connected to an earthed socket to avoid the risk of fire or electric shocks (the earth connection is coded green/yellow). -
Page 18: Operation
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 5. Operation CAUTION Take account of the instructions in Section 3 when carrying out any activity. Failure to follow these instructions may lead to serious injury. 5.1. Starting up What to do Action Result Switch on the power. -
Page 19: Production
(SA0018/SA0022) Lower the rear gate and secure it with the chain (SA0026). In order to avoid the risk of damage to the rear leg, ensure that the rear gate is pressed up tightly against the animal. -
Page 20: Hook Up The Front Leg
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 What to do Action Result Loosen the belly belt. Reverse the winch and loosen the belt, or: Allow the belt to drop to the floor (electrically, optional). Release the crush. Check that all ropes and belts have been freed. -
Page 21: Maintenance
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 6. Maintenance CAUTION! Always disconnect the machine from the power supply by pulling out the plug. Where a hydraulic accumulator is present this must be depressurised. Test the installation on completion of maintenance work or repairs to ensure that it can be used again safely. -
Page 22: Clean The Machine
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 6.2. Clean the machine. EXPLANATION A high-pressure cleaner may be used for cleaning. Avoid bearings, winches and motors when cleaning with a high-pressure cleaner. Spraying in these areas may result in a sharp reduction in service life. -
Page 23: Parts
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 6.4. Parts EXPLANATION Consult the website at www.wopa.com for information on the available options and the parts available to order. Page 23 of 26... -
Page 24: Disposal As Waste
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 7. Disposal as waste Oil and components must not be disposed of as domestic waste. When replacing components or oil or at the end of the machines service life, ensure that all materials are collected and destroyed or reused in a legal and environmentally friendly manner. -
Page 25: Appendix
User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 8. Appendix 8.1. Logbook The logbook must include the following: The annual maintenance work Major replacements and any accidents Modifications Tests on emergency stop buttons and safety features Date: Carried out by:... - Page 26 User manual Hoof trimmingcrush:SA0018/SA0022/SA0026 Version: 24-09-14 Date: Carried out by: Description: (authority, (nature of the activities, components replaced) technician) Page 26 of 26...
