- Page 1 White Paper How to Connect HS35iQ Encoder Fault Output to a PLC See an example of how to connect the fault output of the HS35iQ encoder to a PLC with example connection diagrams and necessary accessories.

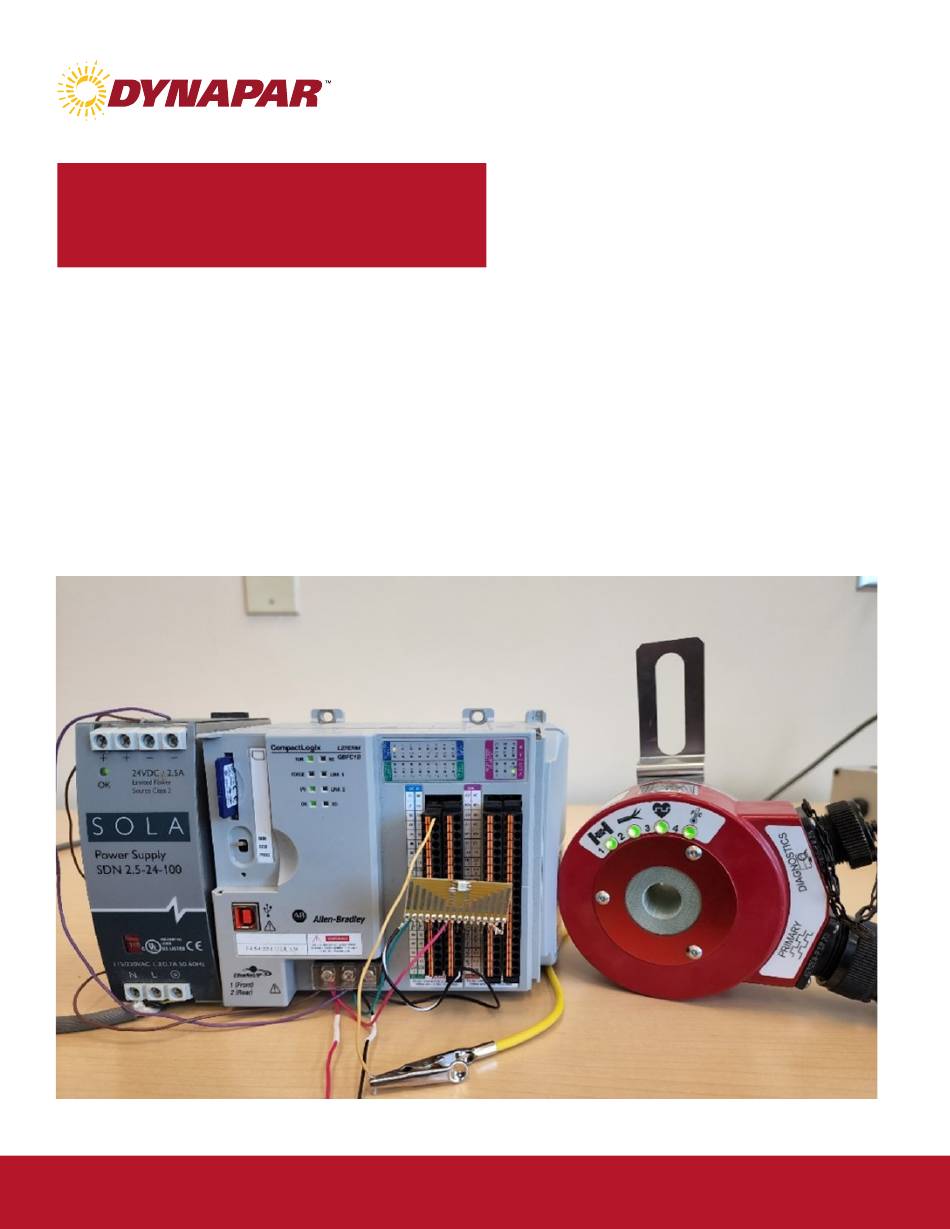

- Page 2 Introduction In this example the fault output from an HS35iQ encoder was connected to a Rockwell PLC. A simple single line of ladder logic was used to read the fault line from the encoder and turn on an LED when a fault is present. The LED is just an easy way to indicate the fault was successfully read from the encoder but other solutions such as alerting maintenance are possible by utilizing the fault output function.
- Page 3 P a g e White Paper: How to Connect HS35iQ Encoder Fault Output to a PLC Figure 1. Wiring diagram for example DYNAPAR | Phone: 1.800.873.8731 | Website: www.dynapar.com Rev 1-9-2023-1...
- Page 4 P a g e White Paper: How to Connect HS35iQ Encoder Fault Output to a PLC Software Setup The routine written to read the fault output and turn on the LED is shown in Figure 2. Figure 2. PLC software routine An Examinine Off was used as the fault output is high during non-fault conditions and transitions to low when a fault occurs.
- Page 5 Figure 4. PLC indicates inactive fault output About Dynapar Dynapar is an industry leading supplier of encoders, and resolvers. From small kit encoders to large mill-duty tachometers, Dynapar has a strong market presence in a wide range of industries including steel, paper, elevator, oil and gas, aerospace &...
