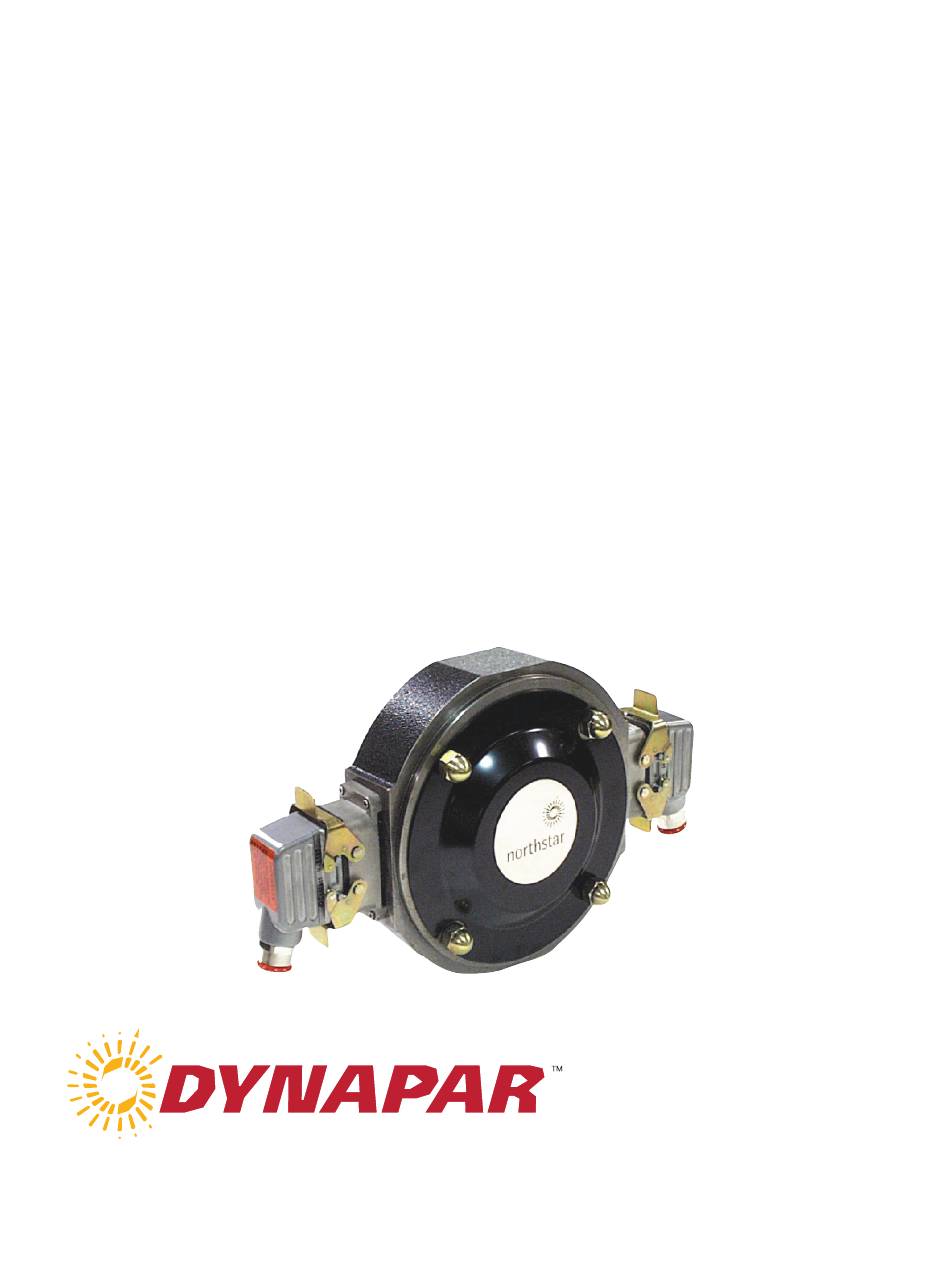

Rim Tach® RT8500
Magnetoresistive Encoder
Designed for use in
with .625" to 4.500" Thru-Shaft Applications and 1.125",
2.125", 2.375", & 2.875" End-of-Shaft Applications
1675 Delany Road • Gurnee, IL 60031
Phone: +1.800.873.8731 (toll-free) • 847.662.2666 • Fax: 847.662.6633
Email: custserv@dynapar.com; northstar.techsupport@dynapar.com
www.dynapar.com
™ brand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NorthStar Rim Tach RT8500 and is the answer not in the manual?

Questions and answers

Summary of Contents for DYNAPAR NorthStar Rim Tach RT8500

  • Page 1 Rim Tach® RT8500 Magnetoresistive Encoder Designed for use in with .625” to 4.500” Thru-Shaft Applications and 1.125”, 2.125”, 2.375”, & 2.875” End-of-Shaft Applications 1675 Delany Road • Gurnee, IL 60031 Phone: +1.800.873.8731 (toll-free) • 847.662.2666 • Fax: 847.662.6633 Email: custserv@dynapar.com; northstar.techsupport@dynapar.com www.dynapar.com...
  • Page 2 ©Dynapar 1-800-873-8731 November 2008...
  • Page 3: Table Of Contents

    Methods and apparatus disclosed herein may be subject to U.S. Patents existing or applied for.Dynapar reserves the right to add, improve, modify, or withdraw functions, design modifications, or products at any time without notice. Dynapar shall not be liable for errors contained herein or for incidental or consequential damages in connection with furnishing, performance, or use of this material.
  • Page 4: Introduction

    Do Not Substitute Parts Or Modify Instrument Do not install substitute parts or perform any unauthorized modification to the instrument. Introducing additional hazards is dangerous. Return the instrument to an authorized Dynapar representative for service and repair to ensure that safety features are maintained.
  • Page 5: General

    Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, please contact Dynapar, or one of its designated representatives. 1.2 Description ®...
  • Page 6: Specifications

    10 pin industrial latching connector with ½ inch NPT fitting, IP-65 NEMA 4, 12 rated Suggested Cable 22 - 16 AWG, 10 conductor, shielded, twisted pair Specifications subject to change without notice. CHAPTER 2 INSTALLATION Dynapar (800) 873-8731 November 2008...
  • Page 7: Inspection And Unpacking

    Inspect shipping container for external damage. All claims for damage (apparent or concealed) or partial loss of shipment must be made in writing to Dynapar within (5) days from receipt of goods. If damage or loss is apparent, please notify the shipping agent immediately.
  • Page 8: Installation Instructions For Pulse Wheels

    3.2 Thru Shaft - Ring Clamp Style Wheel – 1.375” – 3.250” ID and High Slew Pulse Wheels 3.3 Thru – Shaft Set Screw Style Wheel – 3.256” – 4.50” ID 3.4 End of Shaft Style Wheel – 1.125”, 2.125” 2.375” & 2.875” ID of Shaft Dynapar (800) 873-8731 November 2008...
  • Page 9: Spoked Clamp Style Wheel And Enclosure Installation - 0.625" - 1.250" Id

    Insert four 1/2-13 cap nuts onto the remaining exposed mounting studs. Tighten the nuts in an alternating star pattern. Continue alternating and tightening until enclosure is seated. Torque all cap nuts to a nominal 50 ft-lbs. Dynapar (800) 873-8731 November 2008...
  • Page 10: Figure 3: Enclosure Installation

    Once the wheel is securely tightened on the shaft, remove the four alignment screws from the enclosure. Now the cover can be placed on the enclosure or discarded, depending on your application. If you will be using the cover, use the standoff screws to secure the cover to the enclosure. Dynapar (800) 873-8731 November 2008...
  • Page 11 The range (difference between high and low measurements) of readings should be less than 0.010 inch (0.255mm). If the range of the readings is greater, the pulse wheel is not perpendicular to the shaft and will appear to Dynapar (800) 873-8731 November 2008...
  • Page 12: Figure 5: Optional Pulse Wheel Alignment Check With Depth Gauge

    Measure 0.792 ±0.010 inch on Precision Depth Gauge Front View Figure 5: Optional Pulse Wheel Alignment Check with Depth Gauge 3.2 Directions for Installing Ring Clamp Wheel and Enclosure 1.375” – 3.25” ID and High Slew Pulse Wheels Dynapar (800) 873-8731 November 2008...
  • Page 13: Ring Clamp Style Wheel And Enclosure Installation 1.375" - 3.25" Id And High Slew Wheel

    Do not install enclosure with module in place! Do not damage the pulse wheel when mounting the enclosure. If the pulse wheel assembly is not far enough down the shaft, continue pushing it on with the enclosure until the enclosure seats. Dynapar (800) 873-8731 November 2008...
  • Page 14: Figure 7: Alignment For Clamp Ring Style Pulse Wheel

    Continue alternating and tightening until enclosure is seated. Torque all cap nuts to a nominal 50 ft-lbs. Figure 7: Alignment for Clamp Ring Style Pulse Wheel Directions for Installing Set Screw Wheel and Enclosure 3.25” – 4.50” ID Pulse Wheel and Enclosure Installation Dynapar (800) 873-8731 November 2008...
  • Page 15: Set Screw Wheel And Enclosure Installation 3.25" - 4.50" Id

    Slide the pulse wheel assembly until the alignment surface of the unit is even with the recess in the face of the enclosure. Use a straight edge to check it. The alignment surface and recess of the enclosure should be aligned to within ±0.010”. See figure 8. Tighten two set screws to a nominal 15 inch-pounds. Dynapar (800) 873-8731 November 2008...
  • Page 16: Figure 8: Pulse Wheel Alignment Check Using Straight Edge

    Figure 8: Pulse Wheel Alignment Check Using Straight Edge Accessory Enclosure Mounting Face Typical Type C Face Motor (4) 1/2"-13UNC (4) 1/2"-13UNC Mounting Stud Cap Nut Drawin g Not To Scale Pulse W heel Side View Assembly Drain Hole Dynapar (800) 873-8731 November 2008...
  • Page 17: End Of Shaft Wheel And Enclosure Installation

    The pulse wheel should be seated flat against the motor shaft. The wheel should not appear to wobble if the motor shaft is turned by hand. Excessive wobble (0.020” TIR) can damage the pulse wheel and sensor modules. Dynapar (800) 873-8731 November 2008...
  • Page 18: Figure 12: Pulse Wheel Assembly

    The pulse wheel should be seated flat against the motor shaft. The wheel should not appear to wobble if the motor shaft is turned by hand. Excessive wobble can damage the pulse wheel and sensor modules. Dynapar (800) 873-8731 November 2008...
  • Page 19: Sensor Module Installation

    There should not be a gap between the lip on the housing and the enclosure. The stainless steel sensor module is designed to seat in metal-to-metal contact with the enclosure. Ensure that no gaskets, paint, dirt, etc., interferes with the complete seating of the module in the enclosure. Dynapar (800) 873-8731 November 2008...
  • Page 20 There should not be a gap between the lip on the housing and the enclosure. The stainless steel sensor module is designed to seat in metal-to-metal contact with the enclosure. Ensure that no gaskets, paint, dirt, etc., interfere with the complete seating of the module in the enclosure. Dynapar (800) 873-8731 November 2008...
  • Page 21: Electrical Installation

    The wire colors shown on the chart are for the sensors with wire cables instead of connectors. The MS connector pin-outs are for the sensors with the MS connector. The female portion of the connector must be soldered by the customer. Dynapar (800) 873-8731 November 2008...
  • Page 22: Figure 16: Quick Release Connector Installation

    ® NorthStar RIM Tach 8500 & 8500 Quad Instruction Manual Figure16 : Quick Release Connector Installation Dynapar (800) 873-8731 November 2008...
  • Page 23: Returning Equipment To Dynapar

    If it is necessary to return the unit for repair or replacement, a Return Goods Authorization (RGA) number must be obtained from a factory representative before returning the equipment to our service department. When returning an instrument for service, the following information must be provided before Dynapar can attempt any repair. Instrument model and serial number User’s name, company, address, and phone number...
