Daikin DRC Installation Instructions Manual

PHASE MONITOR (FOR 3-12.5 TON)
Models DRC/DRG/DRH/DBC/DBG/DBH
LIGHT COMMERCIAL ROOFTOP UNITS
INSTALLATION INSTRUCTIONS
Safety Considerations
The following symbols and labels are used throughout this
manual to indicate immediate or potential safety hazards. It is
the owner's and installer's responsibility to read and comply
with all safety information and instructions accompanying these
symbols. Failure to heed safety information increases the risk of
personal injury, property damage, and/or product damage.
Only personnel that have been trained to install, adjust,
service or repair (hereinafter, "service") the equipment
specified in this manual should service the equipment.
The manufacturer will not be responsible for any injury
or property damage arising from improper service or
service procedures. If you service this unit, you assume
responsibility for any injury or property damage which may
result. In addition, in jurisdictions that require one or more
licenses to service the equipment specified in this manual,
only licensed personnel should service the equipment.
Improper installation, adjustment, servicing or repair of
the equipment specified in this manual, or attempting to
install, adjust, service or repair the equipment specified in
this manual without proper training may result in product
damage, property damage, personal injury or death.
HIGH VOLTAGE!
Disconnect all power before servicing or installing
this unit. Multiple power sources may be present.
Failure to do so may cause property damage, personal
injury or death.
ATTENTION INSTALLING PERSONNEL
As a professional installer, you have an obligation to know
the product better than the customer. This includes all safety
precautions and related items.
Prior to actual installation, thoroughly familiarize yourself
with this Instruction Manual. Pay special attention to all safety
warnings. Often during installation or repair, it is possible to
place yourself in a position which is more hazardous than
when the unit is in operation.
Remember, it is your responsibility to install the product
safely and to know it well enough to be able to instruct a
customer in its safe use.
Safety is a matter of common sense...a matter of thinking
before acting. Most dealers have a list of specific good
safety practices...follow them.
The precautions listed in this Installation Manual are intended
as supplemental to existing practices. However, if there is a
direct conflict between existing practices and the content of
this manual, the precautions listed here take precedence.
WARNING
WARNING
© 2019-2020
19001 Kermier Rd., Waller, TX 77484
www.daikincomfort.com
P/N: IOD-7115A Date: May 2020
DESCRIPTION
The 3-phase monitor kit for Light Commercial Models
verifies the phase balance and, if out of balance, shuts the
unit down. "Out of balance" refers to the phasing being out
of sequence or loss of line voltage leg.
Ensure all parts are included before beginning. If parts are
missing from the kit, contact the distributor where the kit was
purchased.

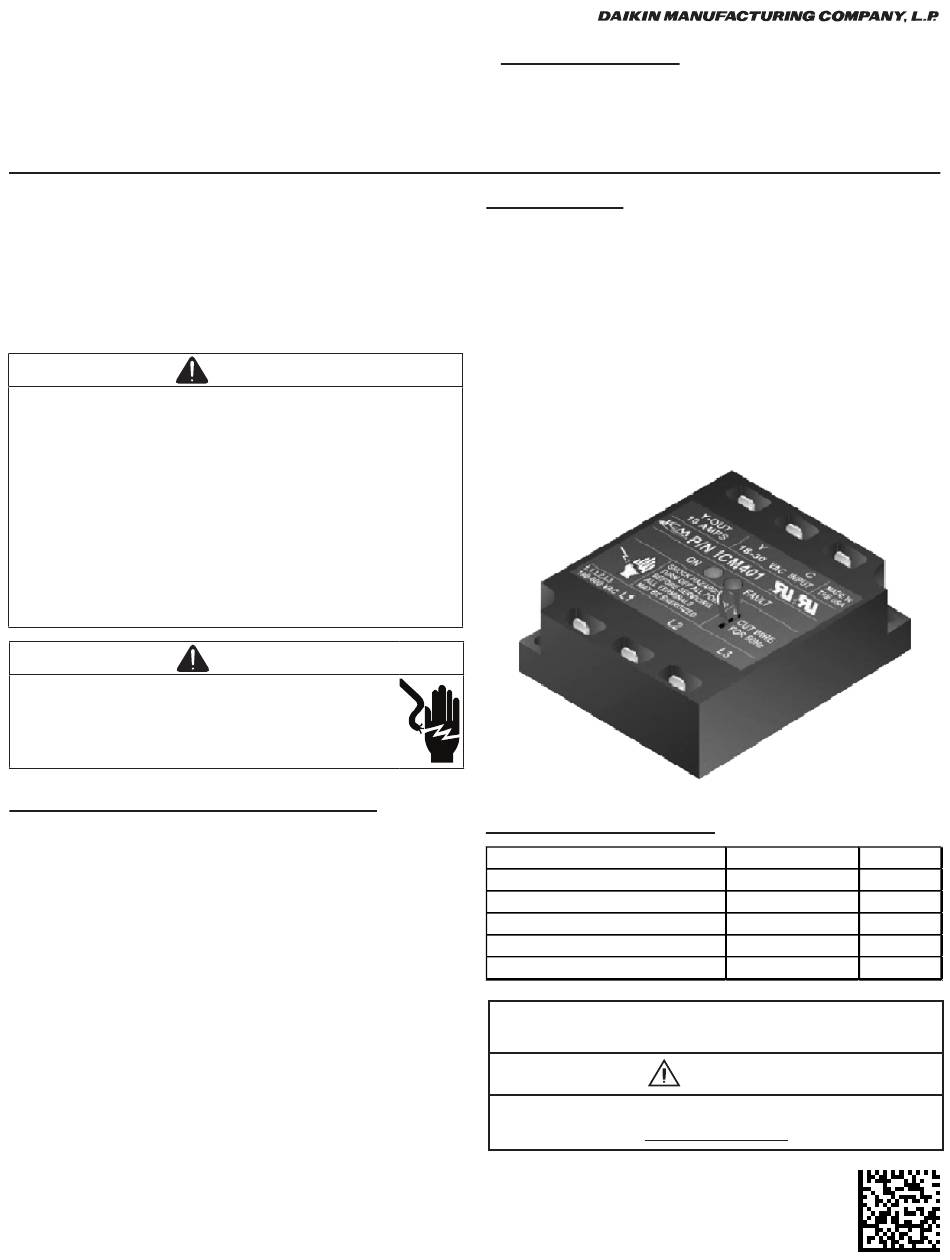

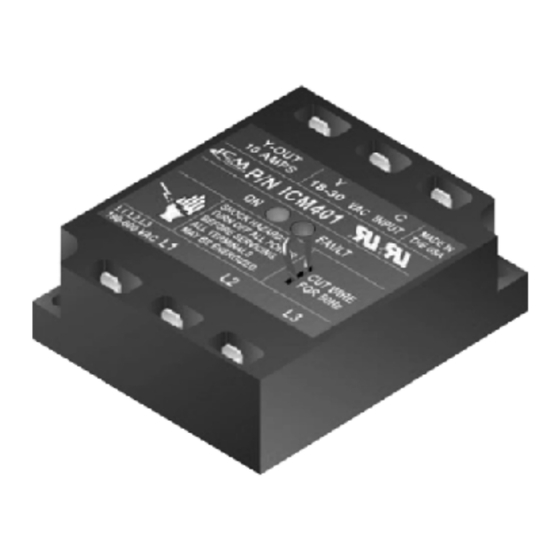

An illuminated green LED indicates the output is energized
and an illuminated red LED indicates there is a fault where
the Y-out terminal will be disconnected from the Y. If neither
is illuminated then the 24V power is off. An image of the
monitor is shown in Figure 1.
3-6 TON KIT CONTENTS
ITEM
Phase Monitor
Power Harness (3-6 Ton)
Low Voltage Harness (3-6 Ton)
Screws
Wire Ties
PROP 65 WARNING
FOR CALIFORNIA CONSUMERS
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Figure 1
PART #
0130L00105
0259L00513
0259L00517
M0218153
M0321204
WARNING
QTY
1
1
1
2
10
0140M00517-A
