PIM-00004△1
[Operation Manual]
1/61

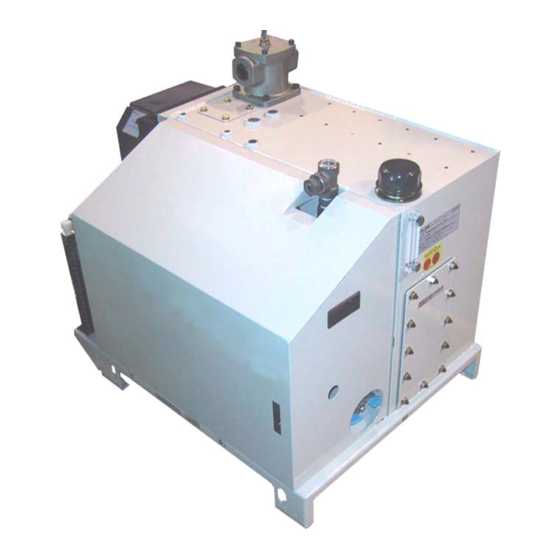

Hybrid Hydraulic System
[Super Unit]
SUT10D80L21-10-F
SUT16D80L21-10-F
Operation Manual
DAIKIN INDUSTRIES, LTD.
Oil Hydraulics Division

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUT10D80L21-10-F and is the answer not in the manual?

Questions and answers

Related Manuals for Daikin SUT10D80L21-10-F

Summary of Contents for Daikin SUT10D80L21-10-F

  • Page 1 PIM-00004△1 [Operation Manual] 1/61 Hybrid Hydraulic System [Super Unit] SUT10D80L21-10-F SUT16D80L21-10-F Operation Manual DAIKIN INDUSTRIES, LTD. Oil Hydraulics Division...
  • Page 2 The contents of this operation manual are subject to change appropriately for product improvement, specification change or easier operations. The latest version of this manual is available through DAIKIN Oil Hydraulics Division Internet Service (DHCnet HomePage) (http:// www.dhcnet.daikin.co.jp:8100/). This operation manual should be used as a reference that provides safety instructions for DAIKIN Hydraulic Unit.
  • Page 3 DAIKIN shall not be responsible for any damage incidental to use of this product or impossibility to use this product (loss of business profit, discontinuation of business).

  • Page 4: Table Of Contents

    Description on individual modes ··········································································································· 30 Shift between individual modes············································································································· 30 Operating procedure for each mode······································································································· 31 a) Monitor mode............................ 31 b) Setting mode ............................. 33 Alarm code display list ·························································································································· 40 [12.Maintenance]............................44 [Attachment: High-pressure Safety Valve Adjustment Procedure] ............... 52 DAIKIN INDUSTRIES, LTD.

  • Page 5: Introduction]

    Features and Structure] (1) Energy conservation Since the motor unit uses the highly efficient IPM motor drive system that DAIKIN originally developed, the Super Unit provides extremely high energy efficiency. The Super Unit uses the autonomously-switching dual pump system that enables autonomous control of combination mode/single mode switching according to load pressure by using the dual fixed-capacity pumps (small-capacity and large-capacity pumps) and the switching valve.
  • Page 6 Elimination of proportional control valve Controller Driver Proportional relief valve Conventional system configuration System configuration of Super Unit Increased Cylinder speed pressure Deceleration Low speed Depressurization Pressure Quick increase reduction Increase (in 3 steps) Time (sec) DAIKIN INDUSTRIES, LTD.

  • Page 7: Description On Model Identification Code]

    81.7 (51.2) 27.4 (14.2) (3.4) 7.0 (9.5) 20.6 Pressure [MPa] * The above charts show the typical characteristics at an oil temperature of 40 C. * Above PQ characteristics show the usable range by actual flow rate. DAIKIN INDUSTRIES, LTD.

  • Page 8: [4. Specifications And Operating Conditions]

    (alarm stop) may occur in response, depending on the master machine operating conditions and load conditions. Operating conditions Dedicated mineral hydraulic oil / Wear-resistant hydraulic oil  (For recommended brands, see DAIKIN "Hydraulic Equipment General Catalog (HK196)".) (Note 3) Hydraulic oil Viscosity grade: ISO VG 32 to 68...

  • Page 9: Precautions For Use]

    In this case, re-adjust the high pressure safety valve pressure setting according to “Attachment: High-pressure Safety Valve Adjustment Procedure” (8) Continuous operations with maximum pressure is only allowable when operating flow rate is14.0L/min. DAIKIN INDUSTRIES, LTD.
  • Page 10 Stop valve Option port (Rc3/8) <Unit top view (When the full cover is removed)> Tank Oil level gauge Valve block Hydraulic pump Oil cooler AC fan AC fan Motor <Unit front view (When the full cover is removed)> DAIKIN INDUSTRIES, LTD.

  • Page 11: Hydraulic Circuit]

    2  5  4  Components Part No. Name 1 Tank 2 Suction strainer 3 Stop valve 4 Oil level gauge 5 Oil filling port (Air breather) 6-1 Inverter drive pump 6-2 Controller 7 Oil cooler 8 Return filter DAIKIN INDUSTRIES, LTD.

  • Page 12: Piping

    This hydraulic unit incorporates a check valve. If an additional inline check valve is mounted to the discharge port, resonance occurs, which may have bad influence on the master machine. Therefore, do not use an inline check valve. DAIKIN INDUSTRIES, LTD.

  • Page 13: Precautions For Operation, Transportation And Installation]

    Avoid transporting the hydraulic unit with hydraulic oil contained in the tank. (This may cause oil leak, or malfunction due to air intrusion.) During transportation, hold the hydraulic unit securely so that it will not be moved by vibration or external force. DAIKIN INDUSTRIES, LTD.

  • Page 14: Precautions For Installation

    If the hydraulic unit is continuously used at a high temperature, the hydraulic equipment (pump, valves, etc.) will have defects or shortened service life, as well as the electric components described above. Using the hydraulic unit at a high temperature accelerates deterioration of the hydraulic oil, resulting in shortened service life. DAIKIN INDUSTRIES, LTD.
  • Page 15 If the hydraulic unit is installed on an inclined plane, oil leak or air intrusion occurs, resulting in abnormal sound or shortened service life of the equipment. Be sure to install the unit on a level plane. DAIKIN INDUSTRIES, LTD.

  • Page 16: Preparations For Operation]

    Be careful about a decrease in oil level in the tank. [4] The oil level in the tank may largely fluctuate depending on the machine hydraulic circuit. This may result in oil leak from the tank, or decrease in oil level. DAIKIN INDUSTRIES, LTD.

  • Page 17: Electric Wiring

    (manufactured by KURAMO) Applicable cable outer diameter: 9 - 11 [Rated current and breaker setting] Power supply voltage and frequency Breaker setting Model 200 V 50 Hz 200 V 60 Hz 220 V 60 Hz SUT10D80L21/SUT16D80L21 25.5A 24.8A 22.7A DAIKIN INDUSTRIES, LTD.
  • Page 18 CAUTION The hydraulic unit incorporates an overcurrent protection function. Therefore, it does not need an overcurrent protection thermal relay. If a thermal relay is used, the hydraulic unit may malfunction due to influence of inverter switching. DAIKIN INDUSTRIES, LTD.
  • Page 19 4. Tighten the tightening cap to fasten the cable. The cable sheath protrusion length should be approx. 2 to 3 Controller fastening screw   Tightening cap Wiring hole Controller fastening screw Sheath protrusion length: 2 to 3 mm DAIKIN INDUSTRIES, LTD.
  • Page 20 If two or more cables are inserted into the clamp, the cable clamp does not conform to the specified protection rating because of a gap between the cables and the cable clamp. When connecting the cable, be careful not to drop a screw into the housing. DAIKIN INDUSTRIES, LTD.
  • Page 21 If the crimp tool is not suitable for the crimp terminal, the cable will come off the terminal due to a crimp failure during operation. This results in short-circuiting or burnout of the circuit caused by abnormal heating. DAIKIN INDUSTRIES, LTD.
  • Page 22 Terminate the shielded cable securely, and connect it to the shielded cable connection terminal. If noise cannot be eliminated by connecting the shielded cable to the ground terminal, the user's equipment should be directly grounded. (Disconnect the ground cable of this unit.) DAIKIN INDUSTRIES, LTD.
  • Page 23 [3] Tighten the screw with a screwdriver. [4] Pull the cable lightly to make sure that it is securely connected. Unsheathed length of the cable: 6 mm Procedure for connecting the cable to the terminal block DAIKIN INDUSTRIES, LTD.

  • Page 24: I/O Signal Cable Specifications

    These terminals are not open to users. Do not No connection use these terminals. I/O signal terminal block Connect a ground cable to the specified position.   Ground 12  <When the unit controller small cover is removed> <I/O signal terminal block> DAIKIN INDUSTRIES, LTD.
  • Page 25 2 input 3 input 4 input 5 External control equipment 4.7 k External power supply (24 VDC) 2.2 k 4.7 k 2.2 k 4.7 k 2.2 k 4.7 k 2.2 k 4.7 k 2.2 k 5 mA DAIKIN INDUSTRIES, LTD.
  • Page 26 Terminals for input signals are available for contact relay and non-contact transistor output. The current flowing through each input circuit is 5 mA (typical). To configure a circuit with a contact, be careful about the minimum current of the contact. DAIKIN INDUSTRIES, LTD.
  • Page 27 Continuity with “Common” exists when the pressure switch Contact output a (AL̲A) is normal. Continuity with “Common” exists when the Signal output Contact output a (AL̲B) Contact output common Common (AL̲B) Contact output a Contact output b Common (Power ON: normal) DAIKIN INDUSTRIES, LTD.
  • Page 28 This value varies depending on switching frequency and environmental conditions. We recommend you to check the minimum allowable load in actual conditions. To drive induction load, take surge preventive measures. DAIKIN INDUSTRIES, LTD.

  • Page 29: [10. Test Run]

    When replacing the element, check the type of the return filter incorporated in the unit, and order the specified type of element. DANGER When evacuating air, high-pressure and high-temperature oil may spout out. Pay attention to oil splash. DAIKIN INDUSTRIES, LTD.

  • Page 30: [11. Operation Panel Operating Procedure]

    Key switch operations for shift between individual modes are shown below: Power-ON Normal mode Keep pressing simultaneously for at least two seconds. Press Press Press Press Keep pressing simultaneously for at least two seconds. Monitor mode Setting mode Alarm mode DAIKIN INDUSTRIES, LTD.

  • Page 31: Operating Procedure For Each Mode

    The indication label should be prepared by the user. Note 2 For details on the alarm codes, refer to description on the alarm display mode. You can check the current power-ON count by pressing the key when an alarm code is displayed. DAIKIN INDUSTRIES, LTD.
  • Page 32 Parameter No. selection three times. Blinking Monitor display Flow rate (theoretical value) Return to actual pressure display 83.0 L/min mode To monitor other parameter, return to the actual pressure display mode once, and then select a desired item. DAIKIN INDUSTRIES, LTD.

  • Page 33: B) Setting Mode

    [PL.*] is a low-pressure pump pressure setting, and [qL.*] is a large flow rate setting. Example) If the [PH.0] setting is changed to "5.5 MPa" when [PL.0] is set at "6.0 MPa", the [PL.0] setting is automatically changed to "5.5 MPa". DAIKIN INDUSTRIES, LTD.
  • Page 34 Return to actual pressure display mode CAUTION: The flow rate setting can be arbitrarily specified in steps of 0.1 L/min. Theoretical pump displacement volume (cc/rev) Model Pump capacity (Low-pressure mode) Pump capacity (High-pressure mode) SUT10D80L21/SUT16D80L21 19.3 6.68 DAIKIN INDUSTRIES, LTD.
  • Page 35 "qL.1", "Ut.1" and "dt.1" P-Q selection 1. are alternately displayed in this order. Changing set value Writing set value Displays flow rate setting   of low-pressure pump   after writing low-pressure pump pressure setting. Return to actual pressure display mode DAIKIN INDUSTRIES, LTD.
  • Page 36 However, it easily causes vibration during deceleration.) Specify a solenoid valve response delay time so Solenoid valve response 0.00to9.99 0.00 that a P-Q selection is synchronized with motion delay time of the operating axis.   DAIKIN INDUSTRIES, LTD.
  • Page 37 0.50  0.00 to 1.00 Pressure switch output Specify a dead zone for switching the pressure dead zone switch function. 72  0 to 145 DAIKIN INDUSTRIES, LTD.
  • Page 38 “PQ selection 0.” The pressure and flow rate can be set larger than the operating ranges specified in the above table. However, the hydraulic unit must be operated at pressure and flow rate within the above pressure ranges. DAIKIN INDUSTRIES, LTD.
  • Page 39 Completion output  1  1  No output  1  Motor operation output  Alarm output  or  Pressure 2  High-pressure pump operation output  switch output  or  warning 0  Completion output  output  2  1  Motor operation output  2  High-pressure pump operation output  DAIKIN INDUSTRIES, LTD.

  • Page 40: Alarm Code Display List

    Alarm No. and erroneous Operation stop Power-ON parameter No. are alternately (during initialization) See the table on the next displayed. page. Warning No. and actual pressure Normal operation Operation value are alternately displayed. continued Normal operation Warning No. display DAIKIN INDUSTRIES, LTD.
  • Page 41 When the pressure switch setting [P01] is enabled (When any number other than "0" is entered) When the pressure switch display hold setting [P03] is "1" or "2", the display hold status cannot be reset until the key is pressed. DAIKIN INDUSTRIES, LTD.
  • Page 42 The main circuit voltage drops below 190 Check the power supply voltage. Undervoltage VDC (134 VAC). If the event is repeated, contact DAIKIN. Overvoltage The main circuit voltage increases beyond Check the power supply voltage. 400 VDC.
  • Page 43 Measure to be taken Classification Indication EEPROM data error (1) Alarm outputted when data in EEPROM is If the event is repeated, contact DAIKIN. abnormal EEPROM data error (2) Alarm outputted when data in EEPROM is If the event is repeated, contact DAIKIN.

  • Page 44: [12.Maintenance]

    [2] Measure the insulation resistance, and check for a decrease in insulation resistance. [3] Make sure that the ground cable is securely connected. Hose Yearly Check the hose for cracks, fracture or flaws. Screws and pipes Daily, Occasionally Check screws and pipes for looseness and oil leak. DAIKIN INDUSTRIES, LTD.
  • Page 45 Before removing the controller cover, be sure to leave the controller for at least five minutes to discharge electricity from the capacitor. [3] Before turning ON the power supply to start operation, mount all covers to the controller. DAIKIN INDUSTRIES, LTD.
  • Page 46 Before conducting this step, attach a blind plug to each hose. [6] Remove the hexagon socket head bolts (M5 L16: 2 pieces) with washers, and dismount the oil cooler. Fan ground cable <When the controller small cover is removed> DAIKIN INDUSTRIES, LTD.
  • Page 47 [2] Remove the cross recessed head machine screws (M4 L70: 2 pieces), and separate the AC fan and finger guard from the shroud. AC fan Cross recessed hexagon head bolt (M5 x L15: 2 pieces) Finger guard Shroud Core Cross recessed head machine screw <Oil cooler> DAIKIN INDUSTRIES, LTD.
  • Page 48 After cleaning is completed, reassemble the oil cooler. After reassembling is completed, conduct the test run procedure described on p. 29 to make sure that the hydraulic unit normally operates. Check if the oil cooler air intake/exhaust direction is correct. (See p. 15) DAIKIN INDUSTRIES, LTD.
  • Page 49 After cleaning the AC fan, re-assemble it. After reassembling is completed, make sure that the fan normally operates according to the test run procedure described on p. 29. (Check if the AC fan air intake/exhaust direction is correct. (See p. 15)) DAIKIN INDUSTRIES, LTD.
  • Page 50 After reassembling is completed, conduct the test run procedure described on p. 29 to make sure that the Suction strainer hydraulic unit normally operates. WARNING During air blow, wear protective goggles to prevent accumulated substances or dust from touching your eyes. DAIKIN INDUSTRIES, LTD.
  • Page 51 Tighten the hexagon socket head bolts [1] securely in the diagonal order. [1] Hexagon socket head bolt [2] Plain washer [3] Cover [4] Packing [5] Element [6] Packing [7] Plain washer [8] Spring washer [9] Element tightening nut [10] Split pin [11] O-ring DAIKIN INDUSTRIES, LTD.

  • Page 52: [Attachment: High-Pressure Safety Valve Adjustment Procedure]

    3. When the pressure set value is changed from the factory setting: In order to suppress surge pressure to protect the master machine peripheral equipment (actuator, pressure gauge, etc.), it is recommended that the safety valve set pressure should be set "pressure of the unit + 1.0 MPa". DAIKIN INDUSTRIES, LTD.
  • Page 53 [7] Tighten the lock nut. This completes the safety valve adjusting procedure. (When tightening the lock nut, be careful not to allow the adjusting screw to turn.) DAIKIN INDUSTRIES, LTD.
  • Page 54 7.7 MPa (corresponding to one turn of the pressure adjusting screw) lower than a target pressure. Then, tighten the adjusting screw by turning it clockwise by one turn, and conduct the above step [7]. Pressure adjusting screw length (Reference) Pressure adjusting screw length (mm) DAIKIN INDUSTRIES, LTD.
  • Page 55 Pressure Magnetic pole Mode Standby for operation Normal control Charging detection Display Actual pressure display * Magnetic pole detection will be executed at the first motor startup after power-ON. DAIKIN INDUSTRIES, LTD.
  • Page 56 Mode Controlled in warning status Normal control H: Actual pressure Display Actual pressure display L: Alarm code display * Alternately displayed at 1 second interval. * When “Level 0” is selected, an actual pressure value is displayed. DAIKIN INDUSTRIES, LTD.
  • Page 57 Note) For the purpose of explanation, the above “1-7 Alarm classification [4]” chart shows the case where the pressure switch is activated without a dead zone. Actually, however, the pressure switch has a dead zone of approx. 0.5 MPa. Note) Set the time interval after a stop signal at 0.5 seconds or longer. DAIKIN INDUSTRIES, LTD.
  • Page 58 0.2 sec. average 3 sec. max. Pressure Magnetic pole Mode Charging Standby for operation Normal control detection Display Actual pressure display * Magnetic pole detection will be executed at the first motor startup after power-ON. DAIKIN INDUSTRIES, LTD.
  • Page 59 Mode Controlled in warning status Normal control L: Alarm code H: Actual pressure Display Actual pressure display display * Alternately displayed at 1 second interval. * When “Level 0” is selected, an actual pressure value is displayed. DAIKIN INDUSTRIES, LTD.
  • Page 60 Note) For the purpose of explanation, the above “2-7 Alarm classification [4]” chart shows the case where the pressure switch is activated without a dead zone. Actually, however, the pressure switch has a dead zone of approx. 0.5 MPa. Note) Set the time interval after a stop signal at 0.5 seconds or longer. DAIKIN INDUSTRIES, LTD.
  • Page 61 When the command value is being changed according to a change in P-Q selection No., the complete signal status is “Lo”. When the command value does not change any more, the complete signal status is changed to “Hi”. DAIKIN INDUSTRIES, LTD.
