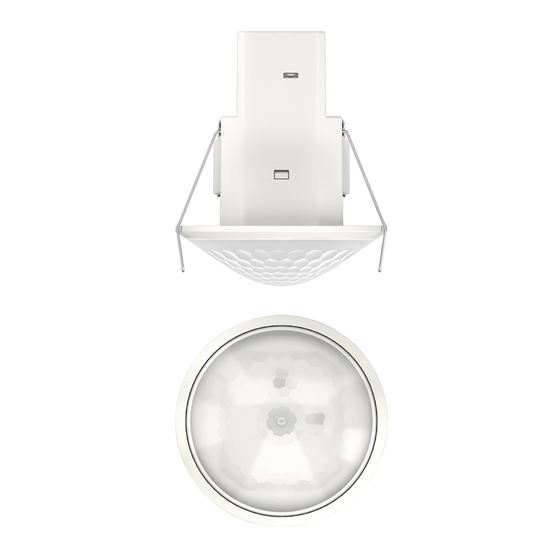

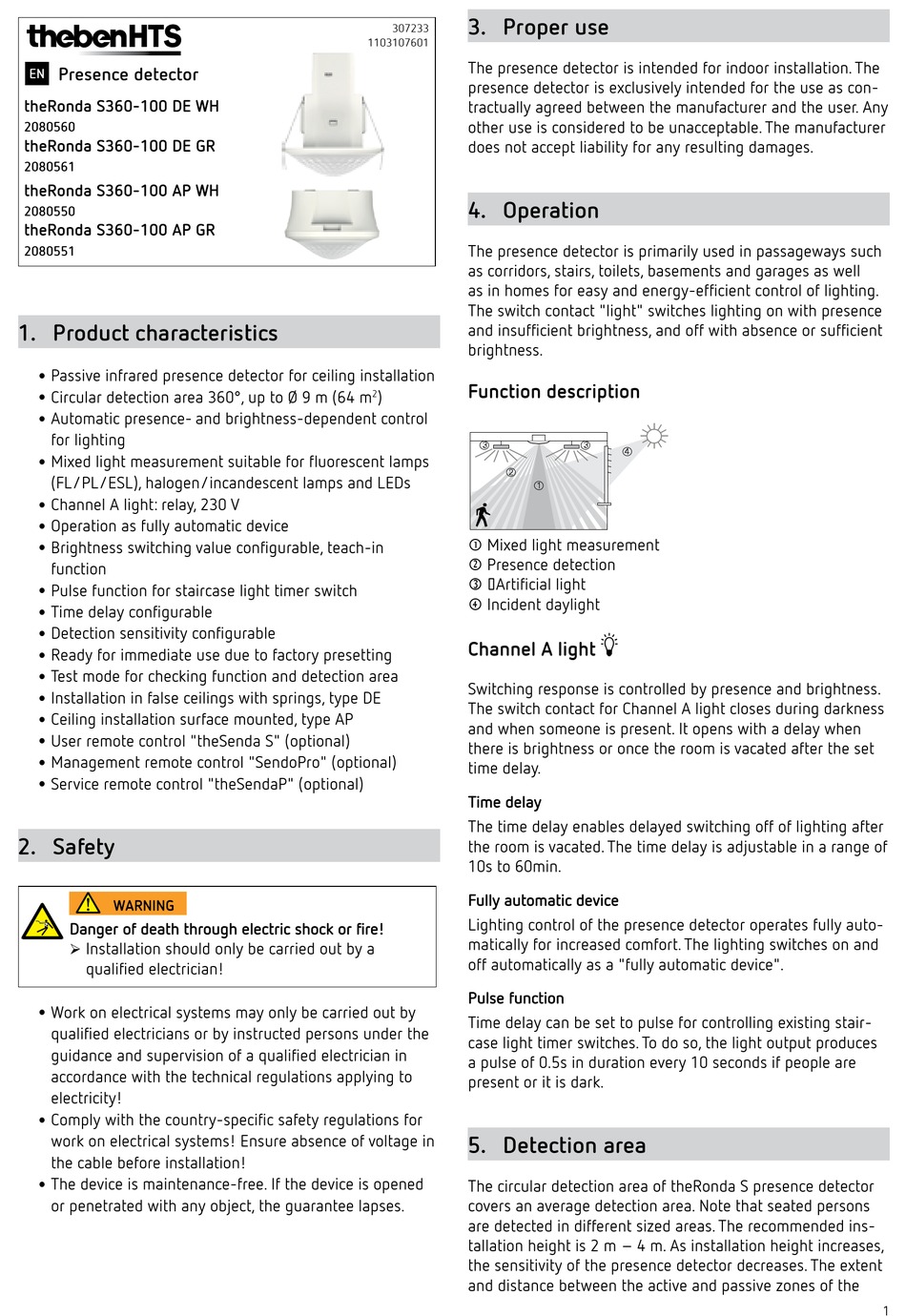

Presence detector
EN
theRonda S360-100 DE WH
2080560
theRonda S360-100 DE GR
2080561
theRonda S360-100 AP WH
2080550
theRonda S360-100 AP GR
2080551
1. Product characteristics
•
Passive infrared presence detector for ceiling installation
•
Circular detection area 360°, up to Ø 9 m (64 m
•
Automatic presence- and brightness-dependent control
for lighting
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Channel A light: relay, 230 V
•
Operation as fully automatic device
•
Brightness switching value configurable, teach-in
function
•
Pulse function for staircase light timer switch
•
Time delay configurable
•
Detection sensitivity configurable
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Installation in false ceilings with springs, type DE
•
Ceiling installation surface mounted, type AP
•
User remote control "theSenda S" (optional)
•
Management remote control "SendoPro" (optional)
•
Service remote control "theSendaP" (optional)
2. Safety
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
•
Work on electrical systems may only be carried out by
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
3. Proper use
307233
1103107601
The presence detector is intended for indoor installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Operation
The presence detector is primarily used in passageways such
as corridors, stairs, toilets, basements and garages as well
as in homes for easy and energy-efficient control of lighting.
The switch contact "light" switches lighting on with presence
and insufficient brightness, and off with absence or sufficient
brightness.
Function description
)
2



 Mixed light measurement
 Presence detection
 Artificial light
 Incident daylight
Channel A light
Switching response is controlled by presence and brightness.
The switch contact for Channel A light closes during darkness
and when someone is present. It opens with a delay when
there is brightness or once the room is vacated after the set
time delay.
Time delay
The time delay enables delayed switching off of lighting after
the room is vacated. The time delay is adjustable in a range of
10s to 60min.
Fully automatic device
Lighting control of the presence detector operates fully auto-
matically for increased comfort. The lighting switches on and
off automatically as a "fully automatic device".
Pulse function
Time delay can be set to pulse for controlling existing stair-
case light timer switches. To do so, the light output produces
a pulse of 0.5s in duration every 10 seconds if people are
present or it is dark.
5. Detection area
The circular detection area of theRonda S presence detector
covers an average detection area. Note that seated persons
are detected in different sized areas. The recommended ins-
tallation height is 2 m – 4 m. As installation height increases,
the sensitivity of the presence detector decreases. The extent
and distance between the active and passive zones of the


