Elmdene 2405ST Quick Start Manual

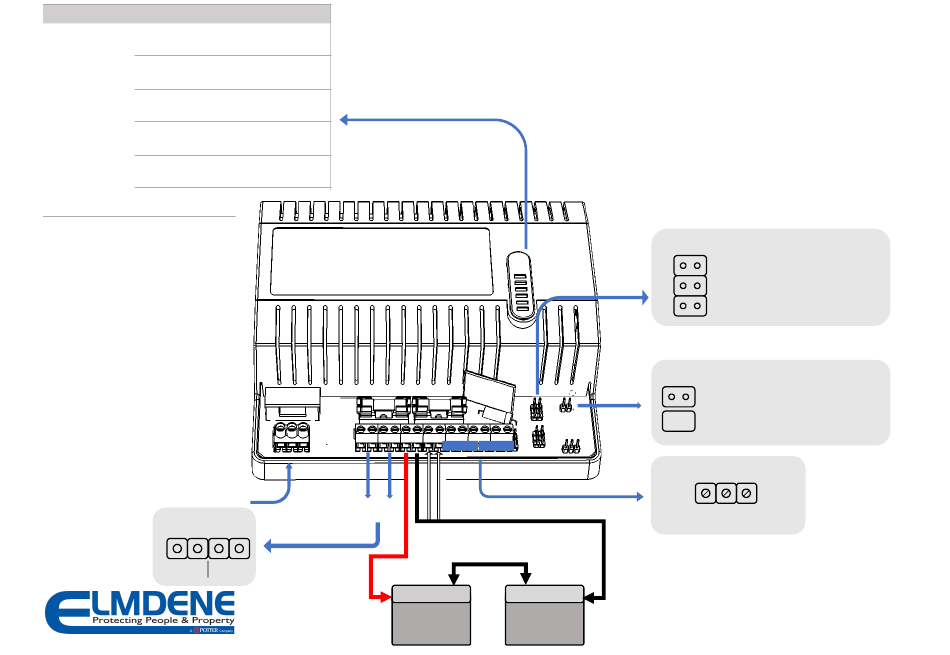

Indicator Functional states
Fault (Yellow)
•
1 - Mains status
• OK (Green)
• Battery Fault (Yellow)
2 - Battery status Charging (Flashing Green)
•
• Battery Charged (Green)
No Fault(s) (Off)
•
3 - Fault status
GEN (PSU) Fault (Flashing Yellow)
•
See 'Status and Fault-Diagnostic LED
•
4 - Diagnostic ID
Indication' table
• Fault (Yellow)
5 – Output 1 status
OK (Green)
•
Fault (Yellow)
•
6 – Output 2 status
• OK (Green)
MAINS
SUPPLY
LOAD OUTPUT
- -
+
LOAD 1 LOAD 2
Technical Support 02392 696638 #3
MAINS FUSE
FUSE #1
+ - - + -
+
2x LOAD
OUTPUTS
+
+
BATTERY
You must read the full product guide before installation
FUSE #2
T T
GEN EPS
FAULT OUTPUTS
TEMPERATURE SENSOR
SERIES BATTERY LINK
- + -
12V 12V
BATTERY
2405ST
QUICK START GUIDE
CHARGER MODE
3.0A Total
65Ah
3
2
24Ah / 37Ah
1 7Ah / 12Ah / 18Ah
(DEFAULT)
OUTPUT MONITORING
DUAL-PATH
2x INDIVIDUAL OUTPUT (DEFAULT)
FAULT OUTPUTS
COM / NO / NC
PAK200626_01A July 2019
ImaxA
4.0A Total
5.0A Total
