- Page 1 QUICK START GUIDE i.MX 8XLITE EVK i.MX 8XLITE EVALUATION KIT (EVK)
- Page 2 ABOUT THE i.MX 8XLITE EVALUATION KIT The i.MX 8XLite applications processor is a member of the i.MX 8 family, providing a range of cost-performance scaling, high levels of software reuse and a dedicated Hardware Security Module (HSM) targeting automotive telematics and vehicle-to-everything (V2X) applications.
- Page 3 QUICK START GUIDE i.MX 8XLite EVK FEATURES The following features are available with the EVK board based on the i.MX 8XLite applications processor: • 2 USB2.0 Type-C connectors • i.MX 8DualXLite applications processor with three cores: • Micro-USB to serial Converter...

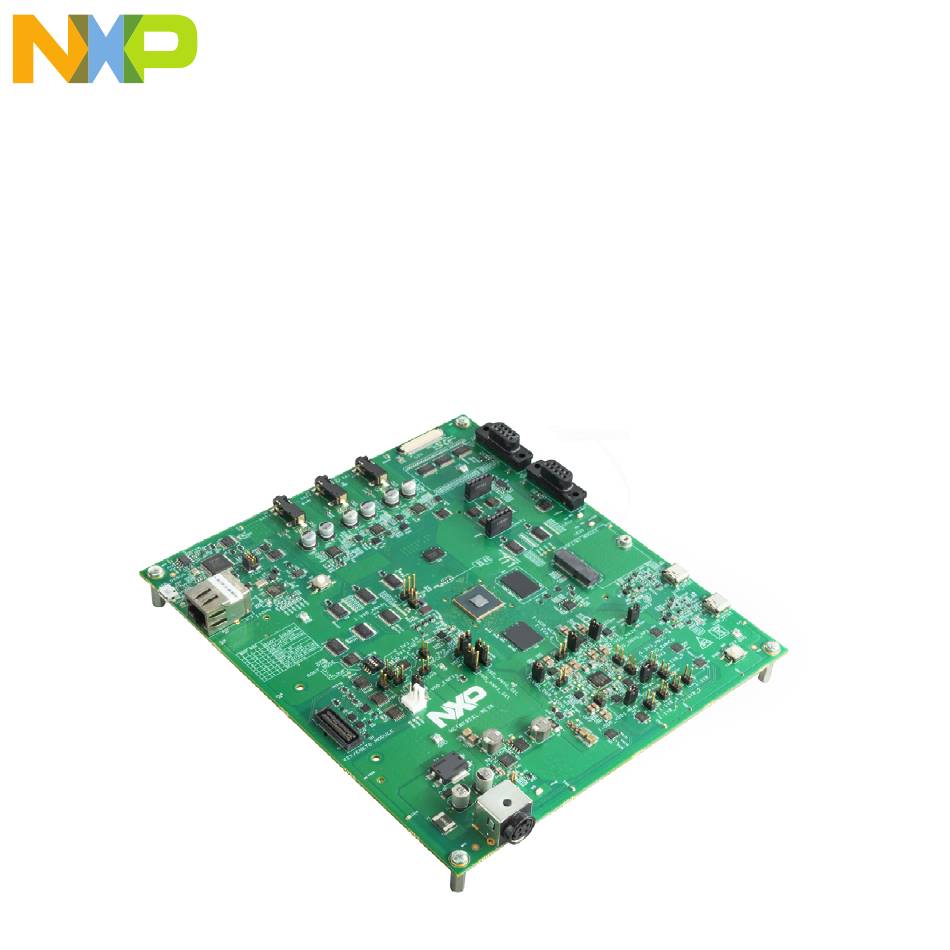

- Page 4 3.5 mm Audio Jack Button JTAG LCD Interface USB MicroB Debug port 1Gbps Ethernet CAN Serial Port Connector BOOT Switches M.2 Connector for V2X/ENET Module Wi-Fi/BT USB Type C Connector 12V DIN Connector Figure 1: Main interfaces of i.MX 8XLite EVK...
- Page 5 QUICK START GUIDE i.MX 8XLITE EVK GET TO KNOW THE i.MX 8XLite EVK CONTINUED SD Card Connector Figure 2: Bottom View of i.MX 8XLite EVK...
- Page 6 M.2 form factor Wi-Fi / Bluetooth ITEM DESCRIPTION module CPU board CPU board with i.MX 8XLite Table 1: Contents of the i.MX 8XLite EVK applications processor, memory and PMIC Optional Power supply Power supply, 12V DC,11.5A, Level VI, With DIN 4 Pin Output Type...
- Page 7 QUICK START GUIDE i.MX 8XLite EVK STEP-BY-STEP INSTRUCTIONS CONTINUED Download Software and tools (www.nxp.com/imx8xlite) ITEM DESCRIPTION Documentation • Schematics, layout and Gerber files • Quick Start Guide • Hardware Developer’s Guide • Applications Processor Reference Manual Software Linux BSPs, freeRTOS™...
-
Page 8: Setting Up The System
SETTING UP THE SYSTEM The following will describe how to run a Linux image on the i.MX 8XLite EVK. connections will appear on the PC. The Confirm Boot console print will output on “Enhanced Switches COM port,” which can be found in The boot switches should be set to boot “Device Manager”... -
Page 9: Connect Ethernet Cable
QUICK START GUIDE i.MX 8XLite EVK SETTING UP THE SYSTEM CONTINUED Connect Power Connect Ethernet Cable Supply (Optional) Connect the plug of the 12V power Connect an Ethernet cable to the supply to the DIN connector J1. When Ethernet Jack J8 (close to the Debug power is connected to the EVK, it will port). -
Page 10: Boot Process
• During the boot process, there will be console prints on the terminal window of the PC (if connected). • To work from the terminal window on the host PC, press ‘Enter’ at the terminal window to get the command prompt. Account name: root, password none. Figure 3: BOOT MODE switch of i.MX 8XLite EVK... -
Page 11: Dip Switch Configuration
QUICK START GUIDE i.MX 8XLite EVK DIP SWITCH CONFIGURATION Table 4 shows the switch (SW1) configuration of boot mode for i.MX 8XLite EVK. BOOT_MODE[2] BOOT_MODE[1] BOOT_MODE[0] BOOT MODE BOOT From eFuse USB Serial Download EMMC0 USHDC1 SD Reserved FlexSPI Reserved Table 4: Boot MODE Pin Settings for i.MX 8XLite EVK... -
Page 12: Warranty
SUPPORT Visit www.nxp.com/support for a list of phone numbers within your region. WARRANTY Visit www.nxp.com/warranty for complete warranty information. HOME PAGE Visit www.nxp.com/imx8xlite for more information www.nxp.com NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
