5. To use UART output, attach the serial cable, connected to a PC, to the port marked EXT on a Key Remote
Control board as shown on
Terminal program configuration should be BAUD RATE: 38400; PARITY: None; DATA BITS: 8; STOP BITS: 1;
FLOW CONTROL: Off.

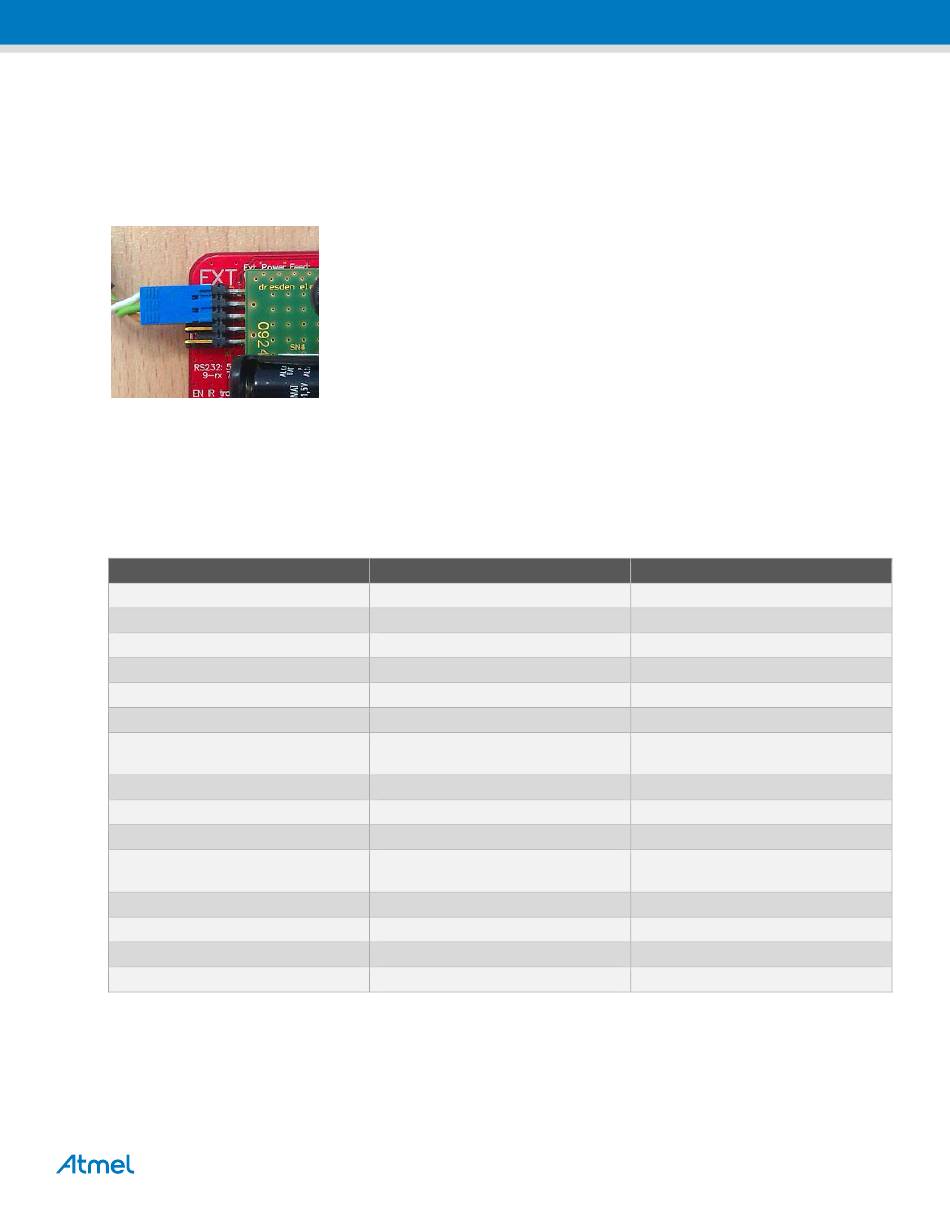

Figure 2-2. Serial cable attached to a Key Remote Control board.
For more details on using RCB and Key Remote Control boards refer to [5].
2.2.2

Fuse bits settings

The recommended fuse bits settings are shown in
Table 2-1. Fuse bits for Atmel ATmega128RFA1.
Option
BODLEVEL
OCDEN
JTAGEN
SPIEN
WDTON
EESAVE
BOOTSZ
BOOTRST
CKDIV8
CKOUT
SUT_CKSEL
Resulting bytes
Ext
High
Low
To quickly test the demo application you may use pre-built application images located in the Evaluation Tools
directory.
Figure 2-2.
Required value (for 8MHz)
1V8
Enabled
Enabled
Enabled
Disabled
Disabled
Boot Flash size=2048 words
start address=$F800
Disabled
Enabled
Disabled
Int. RC osc.;
Startup time: 6 CK + 65ms
0xFE
0x1B
0x62
Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]
Table 2-1.
Required value (for 16MHz)
1V8
Enabled
Enabled
Enabled
Disabled
Disabled
Boot Flash size=2048 words
start address=$F800
Disabled
Enabled
Disabled
Transceiver Oscillator;
Starup time 16K CK + 65ms
0xFE
0x1B
0x77
