Atmel AVR32918: UC3-A3 Xplained Hardware User's
Features
•
®
Atmel
AT32UC3A3256 microcontroller
•
64MBit SDRAM
•
Analog input (to ADC)
•
Temperature sensor
•
RC filter
•
I/O
•
One mechanical button
•
Four LEDs
•
Four expansion headers
•
Footprints for external memory
•
Atmel AT45DB series DataFlash
•
Atmel AT25DF series industry standard serial flash
•
Touch
•
®
One Atmel QTouch
•
One Atmel QTouch button
Introduction
The Atmel UC3-A3 Xplained evaluation kit is a hardware platform to evaluate the
Atmel AT32UC3A3256 microcontroller.
The kit offers a large range of features that enables the Atmel AVR
started using UC3 peripherals right away and understand how to integrate the UC3
device in their own design.

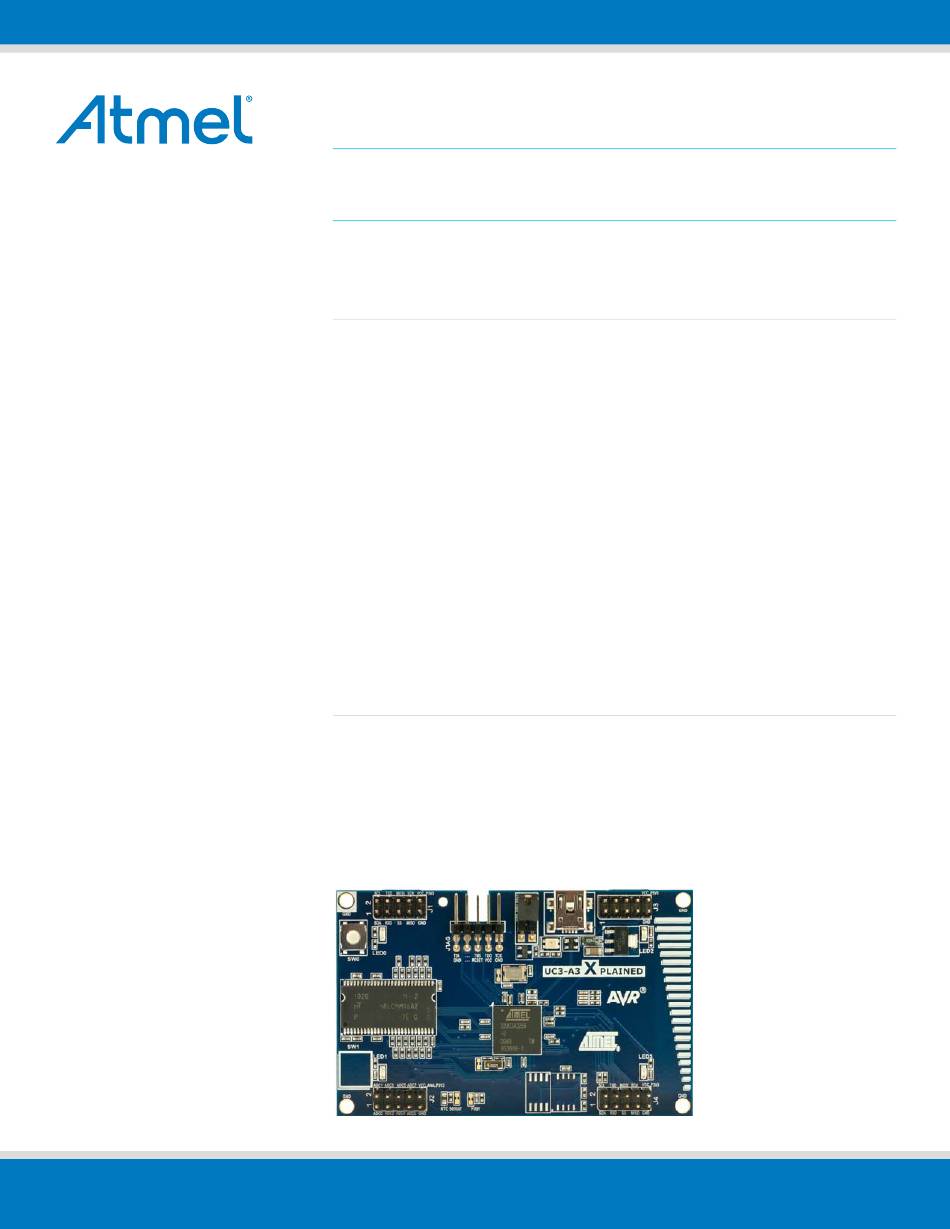

Figure 1.
UC3-A3 XPLAINED evaluation kit.
APPLICATION NOTE
32-bit Atmel Mincrocontrollers
®
serial flash
slider
Guide
®
UC3 user to get
32159C−AVR−07/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel AVR32918
Summary of Contents for Atmel AVR32918
- Page 1 • One Atmel QTouch button Introduction The Atmel UC3-A3 Xplained evaluation kit is a hardware platform to evaluate the Atmel AT32UC3A3256 microcontroller. ® The kit offers a large range of features that enables the Atmel AVR UC3 user to get started using UC3 peripherals right away and understand how to integrate the UC3 device in their own design.
-
Page 2: Table Of Contents
Revision 10 ....................... 9 7.1.1 Known issues ..................9 7.1.1.1 Swapped TWI SCL and TWI SDA on header J4 ....9 8. EVALUATION BOARD/KIT IMPORTANT NOTICE ......9 Atmel AVR32918: UC3-A3 Xplained Hardware User’s Guide [APPLICATION NOTE] 32159C−AVR−07/2012... -
Page 3: Related Items
Atmel AVR ONE! AVR ONE! is a professional development tool for all Atmel 8- and 32-bit AVR devices with on-chip debug capability. It is used for source level symbolic debugging, program trace, and device programming. The AVR ONE! supports the complete development cycle and is the fastest debugging tool offered from Atmel. -
Page 4: Preprogrammed Firmware
Figure 2-2. Functional overview of the Atmel UC3-A3 Xplained kit. Preprogrammed firmware The Atmel AT32UC3A3256 on the Atmel UC3-A3 Xplained kit is preprogrammed with a USB bootloader and a default firmware. The preprogrammed firmware in the AT32UC3A3256 is a simple demonstration of the QTouch button and QTouch slider. -
Page 5: Programming The Kit
The AT32UC3A3256 can be programmed and debugged by connecting an external programming/debugging tool to the JTAG header. The header has a standard JTAG programmer pinout (refer to online help in Atmel Studio), and tools such as JTAGICE3 or AVR ONE! can thus be connected directly to the header. - Page 6 PA30 GPIO2 PA29 GPIO3 PA28 GPIO4 PA27 GPIO5 PB00 GPIO6 PB11 GPIO7 PX19 VCC_P5V0 The VCC pin on this header has 5V and is connected to the USB power. Note: Atmel AVR32918: UC3-A3 Xplained Hardware User’s Guide [APPLICATION NOTE] 32159C−AVR−07/2012...
-
Page 7: Memories
UC3 to detect the status of the button. LEDs The Atmel UC3-A3 Xplained has four yellow LEDs which are connected to the Atmel AT32UC3A3256 and all of them are active low. -
Page 8: Analog I/O
Revision history To identify the revision of the Atmel UC3-A3 Xplained kit, locate the bar-code sticker on the back side of the board. The first line on the sticker shows the product ID and the revision. For example “A09-1053/10” can be resolved to ID=A09- 1053 and revision=10. -
Page 9: Revision 10
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other... - Page 10 Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
