Atmel AVR2103: RF4CE Remote Control
Evaluation Kit - Quick Start Guide
Features
This application note briefly describes how to set up and run the pre-flashed
performance test application included with the Atmel
Evaluation Kit.
The latest RF4CE dedicated applications can be downloaded from
and flashed to the kit hardware by using the serial bootloader functionality of the
pre-flashed application.

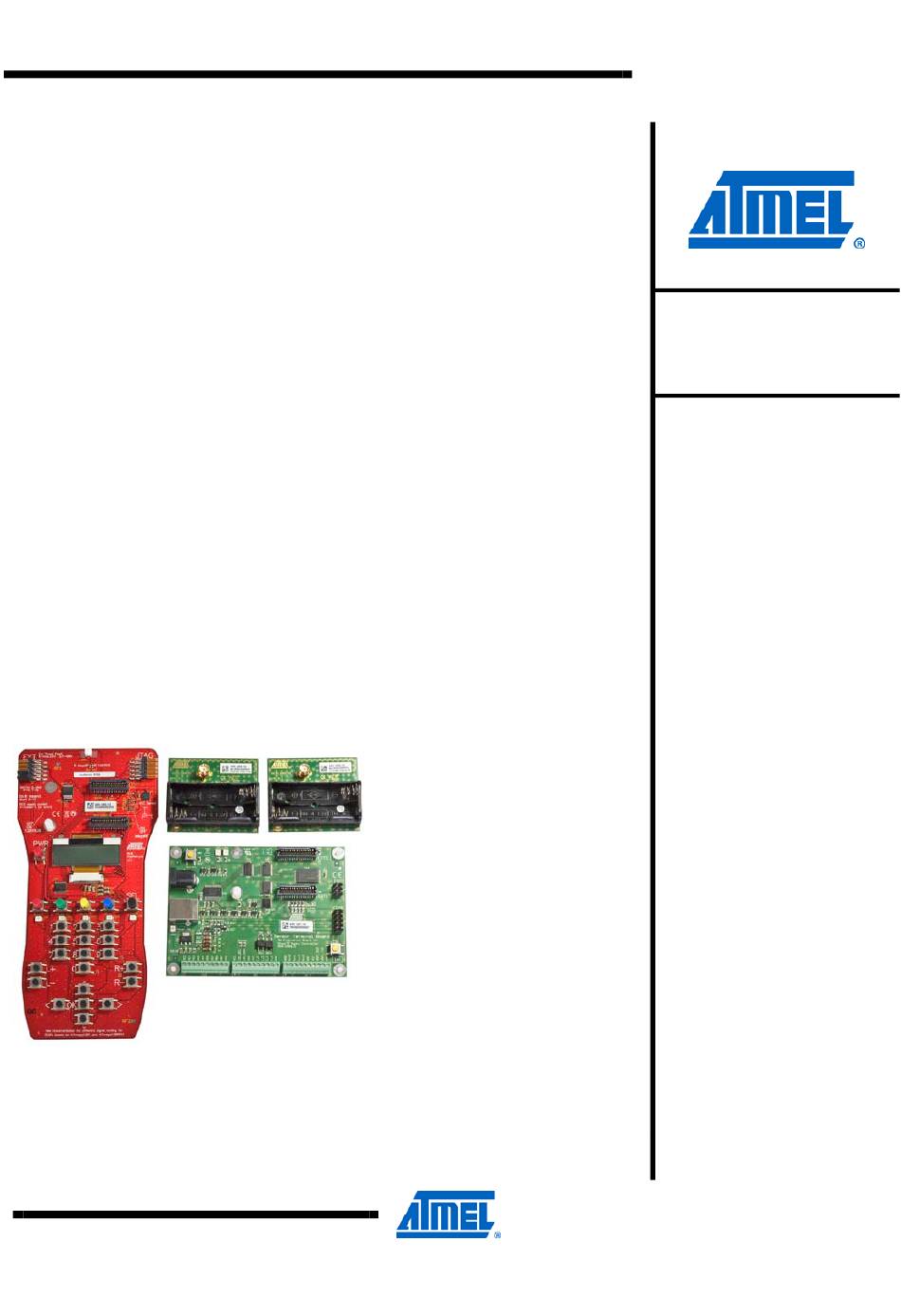

1 Kit contents

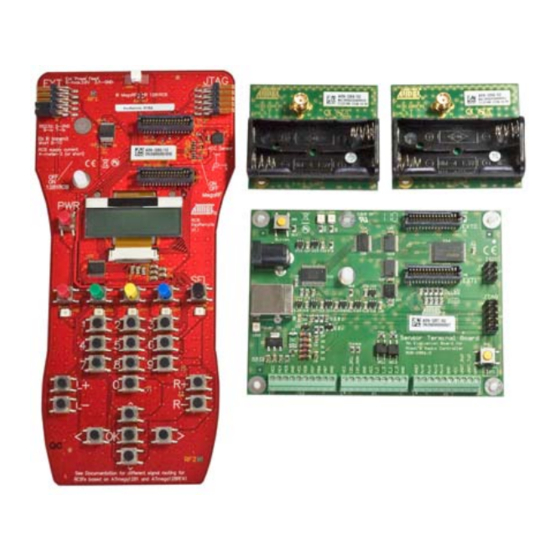

2x Atmel RCB128RFA1 Radio Controller Board (RCB)
1x Atmel RCB Sensor Terminal Board (STB)
1x Atmel RCB Key Remote Control board
1x RCB-BB RS232 cable
1x USB cable
2x 2.4GHz antenna
4x AAA battery
1x Quick Start Guide

2 Simple range measurement

The pre-flashed performance test application on the RCB128RFA1 radio controller
boards features a simple range measurement. Each board operates in a
standalone manner, and is able to transmit or receive data frames. A successful
transmit or receive operation is indicated by a blinking LED.
®
RF4CE Remote Control
www.atmel.com
8-bit Atmel
Microcontrollers
Application Note
Rev. 8368B-AVR-01/12
