Altronix NetWay1 Installation Manual page 4

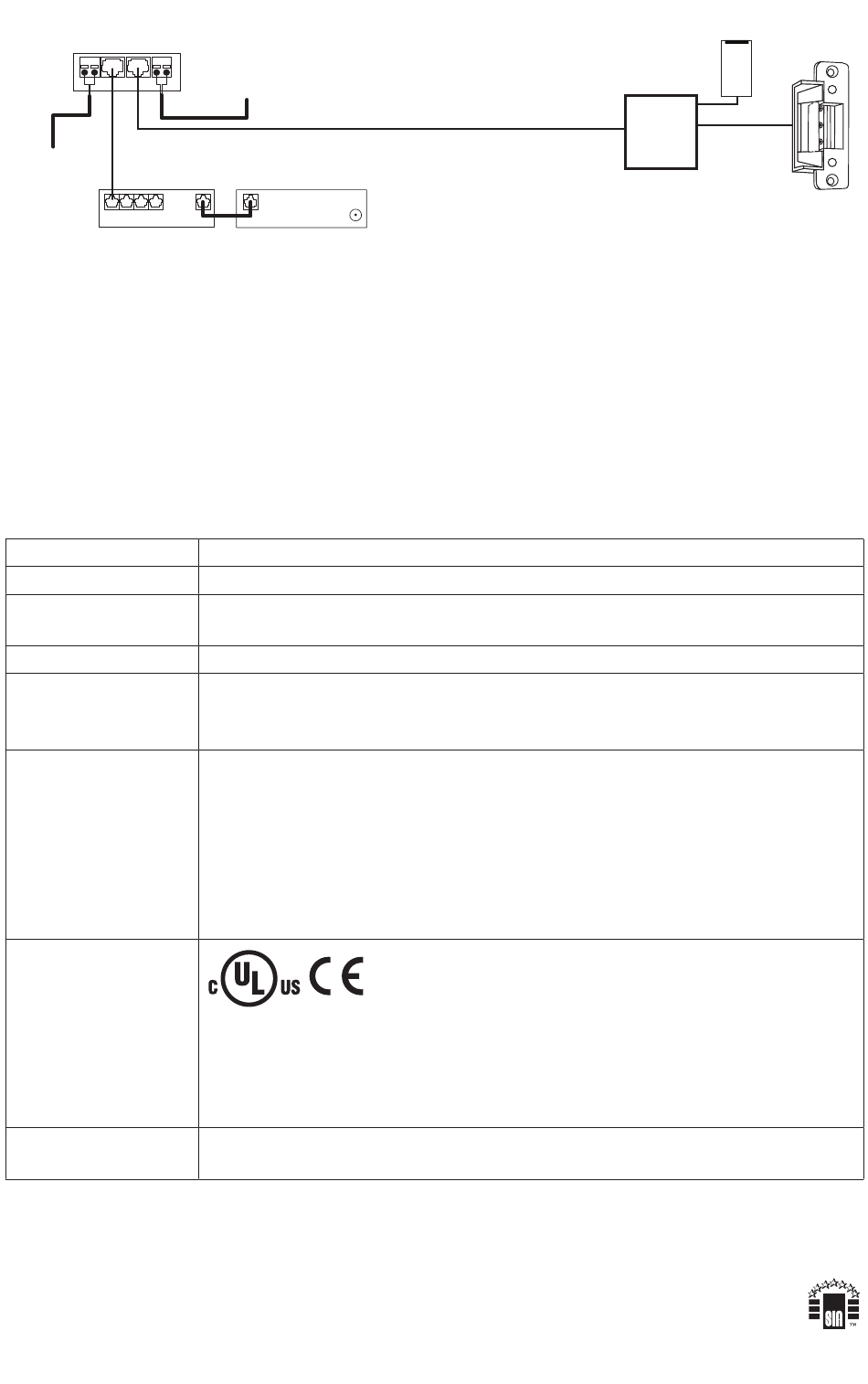

Fig. 6 - Typical UL294 application (NetWay1 only):
NetWay1
UL Listed
Access Control
Power Limited
Power Supply
24VDC/24VAC
Network Switch
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Unit should be tested at least once a year for the proper operation as follows:
While the NetWay1/NetWay1X is powered and the output is connected to a suitable UL Listed PoE device, it should be
tested for PoE shutdown operation (For UL 60950-1 applications only).
For UL294 applications, the NetWay1 is to be tested as part of a complete Access Control System and in accordance
with listed Access Control Devices.
Refer to NetWay1/NetWay1X Port Status and LED Flash Codes, pgs. 2 and 3.
Parameter
No. of Ports
Input power
requirements
Indicators
PoE Shutdown Voltage
and
Current Range
Environmental
Conditions
Regulatory Compliance
Weights (approx.)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
NetWay1 / NetWay1X Rev. 051619
- 4 -
Port shutdown
input
NVR/Network Server
Maintenance:
Troubleshooting:
Technical Specifications:
Description
One (1)
NetWay1: 24VAC @ 1.2A or 24VDC @ 1.2A.
NetWay1X: 24VAC @ 1.5A or 24VDC @ 1.5A.
Port Status LED, Power In LED (NetWay1X only).
5VDC to 24VDC or 12VAC to 24VAC
Maximum current: 2mA for 5VDC
Maximum current for higher voltages: 10mA Class 2 Power-Limited.
Operating Ambient Temperature:
NetWay1: UL60950-1:
UL294:
NetWay1X:
48VDC, 30W:
24VAC, 30W:
Relative humidity:
Storage Temperature:
Operating Altitude:
UL/cUL Listed for Information Technology Equipment (UL 60950-1).
UL Listed for Access Control Systems (UL294 - NetWay1 only).
Power over Ethernet (PoE) for Access Control (UL294B - NetWay1 only).
cUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment (NetWay1 only).
CE European Conformity.
NetWay1: Product: 0.2 lb. (0.09 kg) | Shipping: 0.25 lb. (0.11 kg)
NetWay1X: Product: 0.25 lb. (0.11 kg) | Shipping: 0.3 lb. (0.14 kg)
CAT5e - 100m
0ºC to 40ºC (32ºF to 104ºF).
0ºC to 49ºC (32ºF to 120.2ºF).
0ºC to 45ºC (32ºF to 113ºF).
0ºC to 37ºC (32ºF to 98.6ºF).
85%, +/– 5%.
– 20ºC to 70ºC (– 4ºF to 158ºF).
– 304.8 to 3,048m.
H19U
Card
Reader
HID
Solo Edge
Device
NetWay1 / NetWay1X Installation Guide
Electric
Strike
