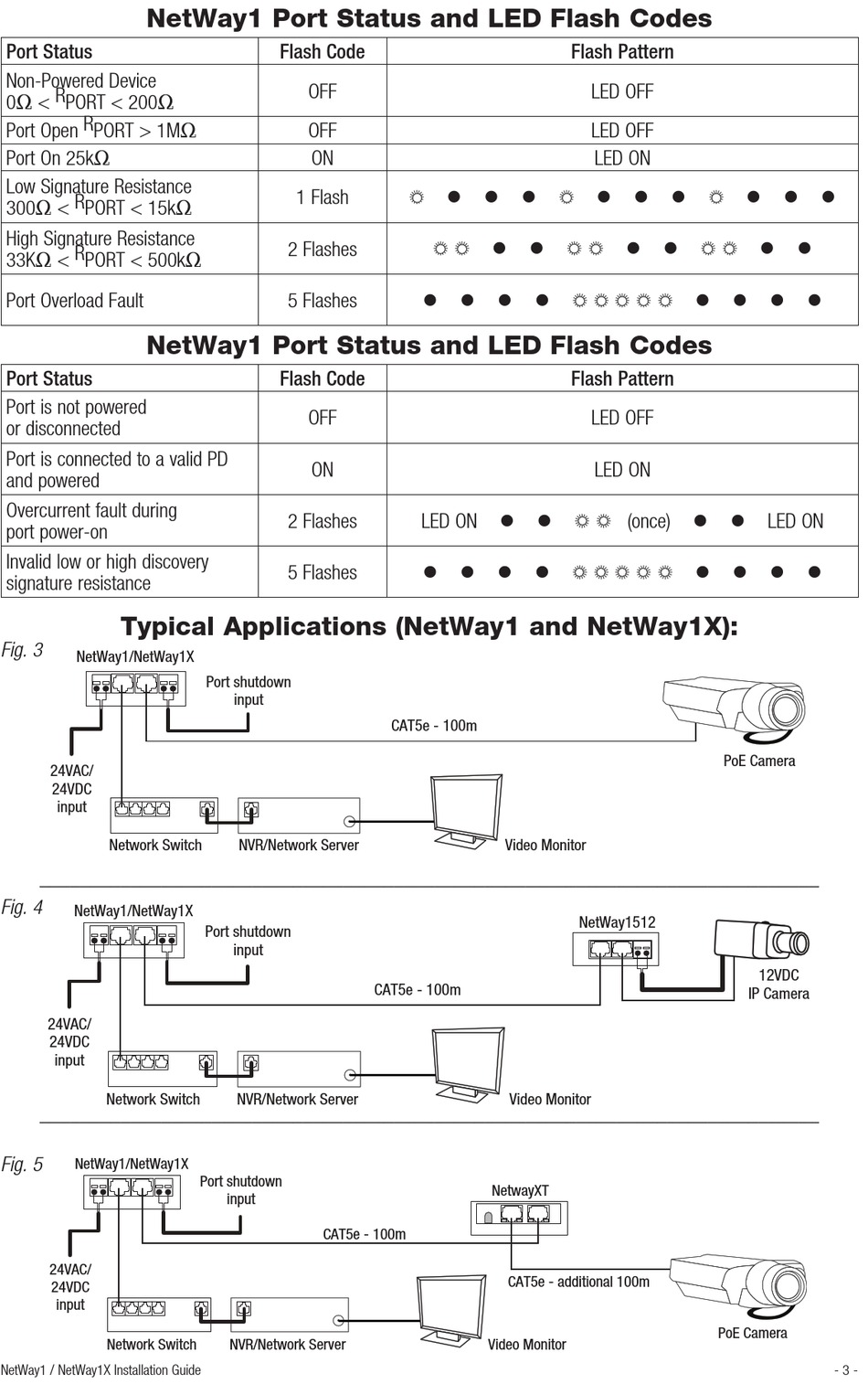

Altronix NetWay1 Installation Manual page 3

NetWay1 Port Status and LED Flash Codes
Port Status
Non-Powered Device
0Ω < R PORT < 200Ω
Port Open R PORT > 1MΩ
Port On 25kΩ
Low Signature Resistance
300Ω < R PORT < 15kΩ
High Signature Resistance
33KΩ < R PORT < 500kΩ
Port Overload Fault
NetWay1 Port Status and LED Flash Codes
Port Status
Port is not powered
or disconnected
Port is connected to a valid PD
and powered
Overcurrent fault during
port power-on
Invalid low or high discovery
signature resistance
Typical Applications (NetWay1 and NetWay1X):
Fig. 3
NetWay1/NetWay1X
24VAC/
24VDC
input
Network Switch
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Fig. 4
NetWay1/NetWay1X
24VAC/
24VDC
input
Network Switch
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Fig. 5
NetWay1/NetWay1X
24VAC/
24VDC
input
Network Switch
NetWay1 / NetWay1X Installation Guide
Flash Code
OFF
OFF
ON
1 Flash
2 Flashes
5 Flashes
Flash Code
OFF
ON
2 Flashes
5 Flashes
Port shutdown
input
NVR/Network Server
Port shutdown
input
NVR/Network Server
Port shutdown
input
CAT5e - 100m
NVR/Network Server
l l l
Z
l l
Z Z
l l l l
LED ON
l l
l l l l
CAT5e - 100m
Video Monitor
CAT5e - 100m
Video Monitor
NetwayXT
CAT5e - additional 100m
Video Monitor
Flash Pattern
LED OFF
LED OFF
LED ON
l l l
Z Z
l l
Z Z Z Z
l
Z Z Z Z Z
Flash Pattern
LED OFF
LED ON
Z Z (once)
l
l
Z Z Z Z Z
NetWay1512
PoE Camera
l l l
l l
l l l
LED ON
l
l l l
PoE Camera
12VDC
IP Camera
- 3 -
