Altronix NetWay1 Installation Manual page 2

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and
authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.
Unit is intended to be used with a UL Listed Class 2 or LPS (limited power supply). NetWay1/NetWay1X is not intended to
be connected to outside plant leads and should be installed indoors within the protected premises. NetWay1/NetWay1X
is intended for indoor use only.
1. Mount NetWay1/NetWay1X in desired location utilizing the mounting hole (Figs. 1a and 2a, pg. 2). Use a proper
fastener and/or wall anchor when securing NetWay1/NetWay1X with screw through its mounting hole to the wall.
2. Connect 24VAC/24VDC to terminals marked [24VAC/VDC Input] (Figs. 1b and 2b, pg. 2). Use 22AWG-16AWG wire
for this connection. Input power should be a UL Listed Access Control power-limited power supply
(for UL294 applications) or Class 2 rated transformer/power supply (for UL60950-1 applications).
3. Connect structured cable from port marked [IN] on NetWay1/NetWay1X to the corresponding input of a UL Listed
ethernet switch or video server (Figs. 1b, 2b, pg. 2).
4. Connect structured cable from port marked [OUT] on the NetWay1/NetWay1X to PoE device (Figs. 1b, 2b, pg. 2).
All interconnected devices must be UL Listed.
5. Port status LED will illuminate indicating normal operation (Figs. 1c, 2b, pg. 2).
6. To initiate PoE shutdown connect 12VAC to 24VAC or 5VDC to 24VDC to the input terminals marked [PoE Shutdown]
on the NetWay1/NetWay1X (Figs. 1b, 2b, pg. 2). The PoE output voltage may be shut down by manually applying
voltage in the rated range (PoE Shutdown Voltage Range in Specifications). Upon applying voltage the output will drop
to zero volts. Removal of voltage from the shutdown terminals or applying zero volts to the shutdown terminals will
allow the PoE output to operate normally to supply power to PoE compliant devices.
Note: Return to normal operation from shutdown can take about 4 seconds. Although there is no output voltage to power
PoE devices during shutdown, data signals may still be present on the data pair lines of the CAT5e cable.

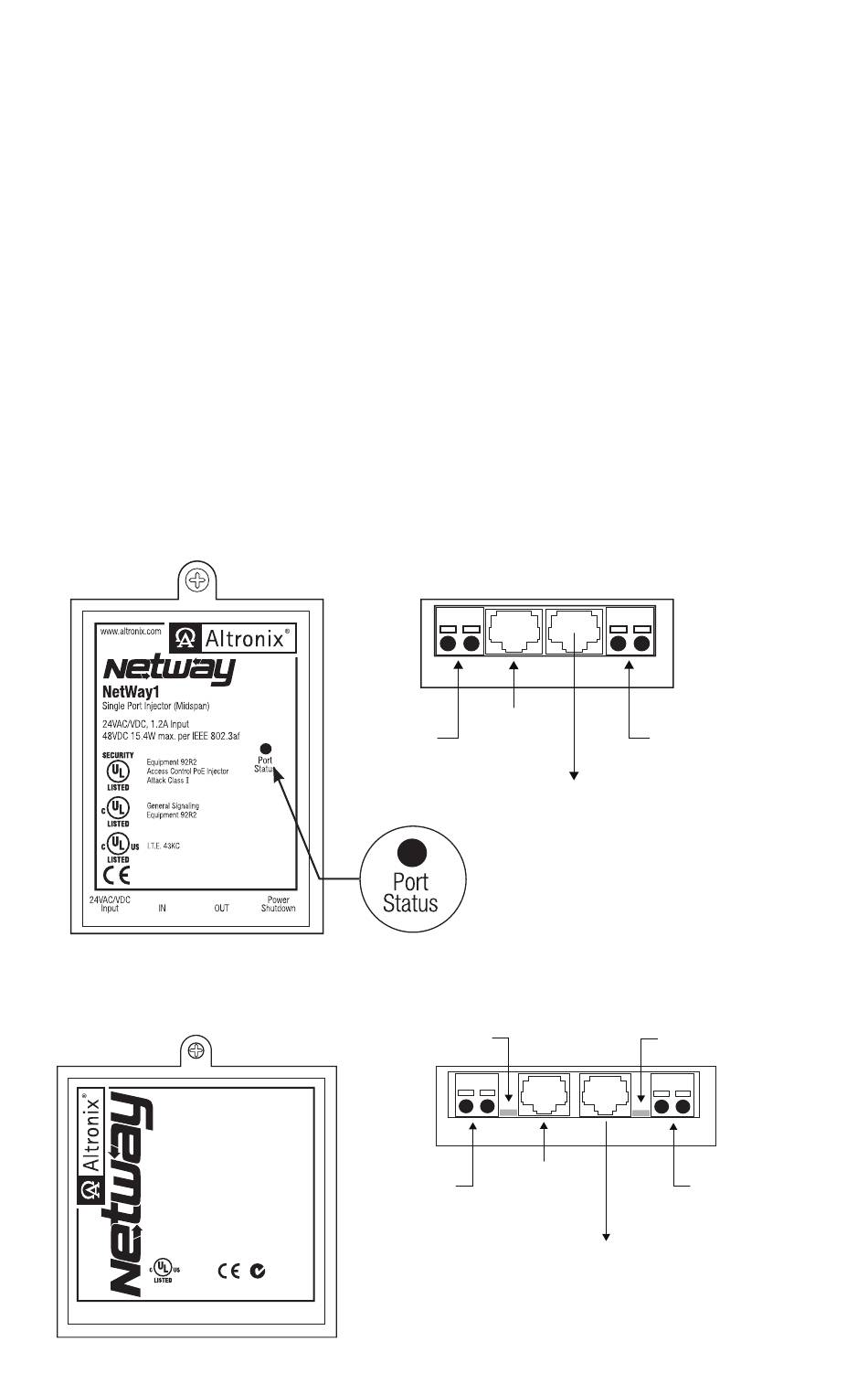

Fig. 1
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Fig. 2
NetWay1X
Single Port Injector (Midspan)
Input:
Output: IEEE 802.3at (30W) and
24VAC/VDC
Input IN
- 2 -
Installation Instructions:
Fig. 1a
Brooklyn, NY, U.S.A.
Fig. 2a
Brooklyn, NY, U.S.A.
www.altronix.com
Brooklyn, NY, U.S.A.
24VAC/VDC, 1.5A
IEEE 802.3af (15.4W)
compliant.
I.T.E. 43KC
Z109
Power
OUT Shutdown
NetWay1:
Fig. 1b
Structured
24VAC/ Cable from
24VDC Input Network
Switch
Structured Cable from
IP Camera, IP Lock or IP device,
NetWay1512 or NetWayXT
Fig. 1c
NetWay1X:
Power In LED
Structured
24VAC/
Cable from
24VDC Input
12VAC to 24VAC or
5VDC to 24VDC Input
for PoE shutdown
24VAC/
24VDC Input
PoE LED
Network
Switch
Structured Cable from
IP Camera, IP Lock or IP device
NetWay1 / NetWay1X Installation Guide
Fig. 2b
12VAC to 24VAC or
5VDC to 24VDC Input
for PoE shutdown
