Quick Start Manual

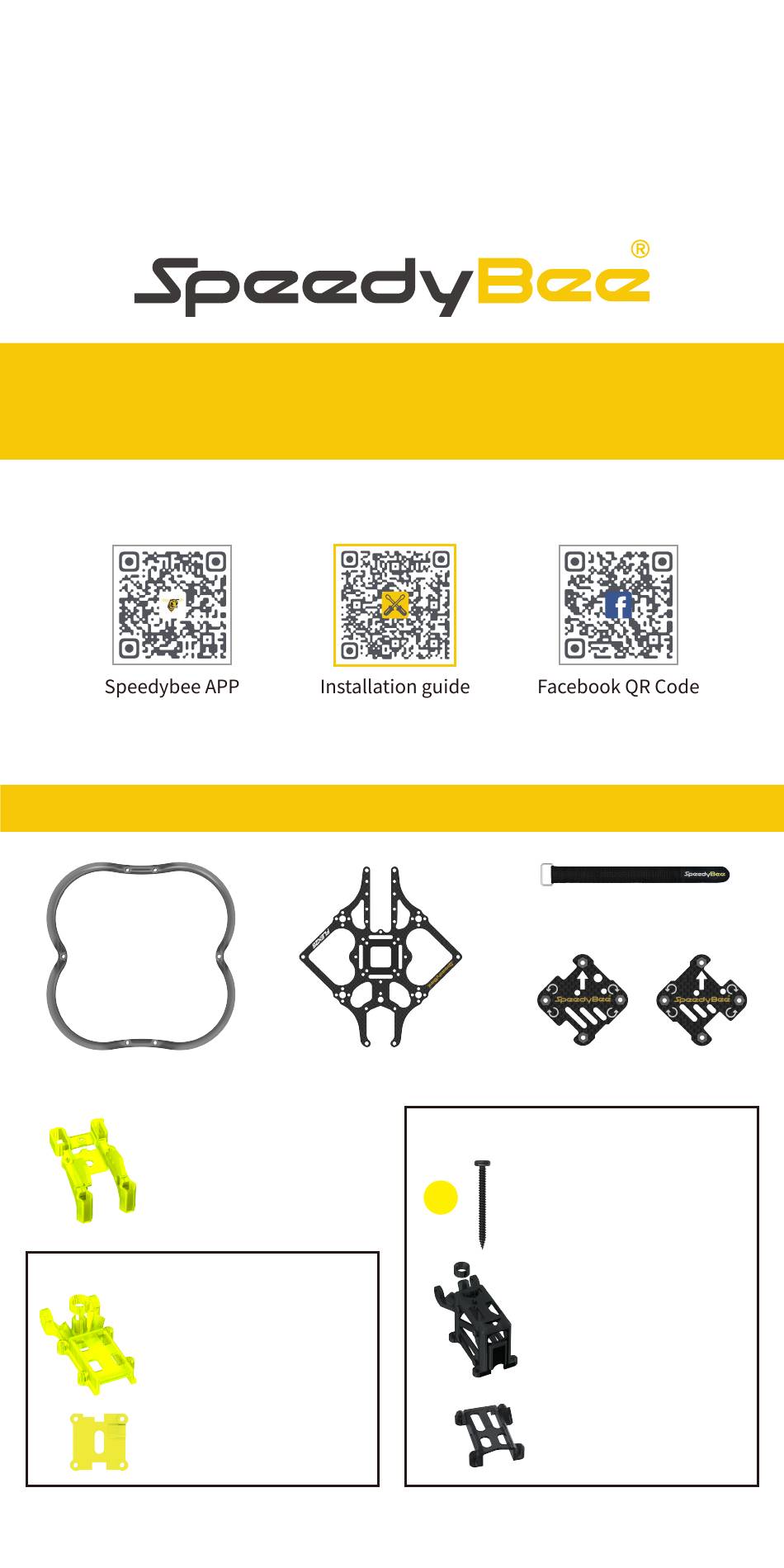

Part 1. Package
Propeller Protection Duct
x1
Flex25 TPU Accessories ( Analog Version）
x1
x1
Note: The accessories enclosed in the two black rectangles above will be shipped
according to the corresponding version(HD/Analog)
2.5mm Carbon Fiber
14mm 3D Base Mount
Analog Antenna TPU
Mount & Ring
Analog VTX TPU Mount
1mm FC Protection Board
Flex25 TPU Accessories (HD Version)
x5
A
M2 - 18mm
x1
RunCam Link TPU top
Mount & Ring
x1
RunCam Link TPU
Bottom Mount
Lipo Battery Strap
1
2
Advertisement
Related Manuals for SpeedyBee Flex25
Summary of Contents for SpeedyBee Flex25
- Page 1 2.5mm Carbon Fiber 1mm FC Protection Board Flex25 TPU Accessories (HD Version) 14mm 3D Base Mount M2 - 18mm Flex25 TPU Accessories ( Analog Version） RunCam Link TPU top Mount & Ring Analog Antenna TPU Mount & Ring RunCam Link TPU...
- Page 2 HD Camera 3D Base Mount FC Protection TPU Motor pad (2mm) Motor pad (9mm) M2x3mm FPV Cam Screw M2.5 - 15mm M2 - 14mm M2 - 12mm M2 - 7mm M2.5 - 6mm M2.5 - 16mm M2 - 12mm M2 x2.3mm(Height) M2 x1.53mm(Height) Press Nuts Press Nuts...
-
Page 3: Installation Position
Motor installation position 25.5x25.5 AIO installation position Analog VTX installation position RunCam Link 3D Bottom Mount&2 pin TPU 25-28mm Part 3. Screw Installation Analog Version Short screw for Motor #2 and #3 Top plate screw for the AIO flight controller Long screw for Motor #1 and #4 HD recording... - Page 4 Analog Type-c GND- BAT+ 6Pin HD Recording Cam Cable GND- BAT+ Receiver TPU Mount Analog VTX TPU Mount Analog Version Press Nuts Analog VTX Installing screw (from bottom side of the top plate) Duct bottom screw M2 x1.53mm(Height) M2 - 12mm*5pcs Press Nuts...
- Page 5 HD Version Short screw for DJI Unit Installing Motor #2 and #3 screw(side mounted) Top plate screw for the AIO flight controller Long screw for Motor #1 and #4 Top plate screw for the VTX Installing screw Aluminum Standoff (from top side of the top plate) Duct bottom screw M2 - 14mm*10pcs...
- Page 6 Scan the QR code to get the installation guide. We recommend you scan it through the SpeedyBee App for detailed instructions. 请扫描二维码获取安装指南 建议您通过 SpeedyBee App 扫描以获取更详细的安装指南 一、包装清单 电池绑带（18mm） 圈圈 2.5mm机身 1mm飞控保护 高清版配件 14mm机头座 m2自攻螺丝 (18mm) 模拟版配件 RunCam Link座 + 圆环...
- Page 7 狗8底座 飞控保护tpu 低电机垫(2mm) 高电机垫(9mm) m2内六角螺丝 (3mm) m2.5铝柱(15mm) m2内六角螺丝 (14mm) m2内六角螺丝 (12mm) m2内六角螺丝 (7mm) m2.5内六角螺丝 6mm) m2.5内六角螺丝 (16mm) m2自攻螺丝 (12mm) m2压铆螺母 (2_2mm) m2压铆螺母 (2_1mm) 二、飞机各部件标注图 RunCam Link座 天线安装位置 + 圆环 接收机安装位置 电池安装位置 外挂相机位置 6pin位置 14mm nano摄像头 usb位置 摄像头固定螺丝 安装位置...
- Page 8 电机安装位置 25.5x25.5 AIO 飞控安装位置 模拟图传安装位置 高清图传安装位置 25-28mm 模拟 高清 Type-c GND- BAT+ 6Pin高清录像机排线 GND- BAT+ 接收机固定TPU 图传安装TPU...
- Page 9 三、螺丝安装说明 模拟版 顶部飞控螺丝 电机短螺丝 电机长螺丝 相机座螺丝 顶部铝柱螺丝 底部圈圈螺丝 m2内六角螺丝 (14mm) m2内六角螺丝 (7mm) m2内六角螺丝 (12mm) m2.5内六角螺丝(6mm) m2.5内六角螺丝 (16mm) 模拟版 底部压铆螺母 底部图传螺丝 底部圈圈螺丝 m2压铆螺母(2_1mm) m2自攻螺丝(12mm)
- Page 10 高清版 电机短螺丝 高清图传螺丝 （侧面安装） 顶部飞控螺丝 电机长螺丝 顶部图传螺丝 顶部铝柱螺丝 底部圈圈螺丝 m2内六角螺丝 (14mm) m2内六角螺丝 (7mm) m2内六角螺丝 (12mm) m2.5内六角螺丝(6mm) m2自攻螺丝(12mm) m2自攻螺丝(18mm) 高清版 底部压铆螺母 底部圈圈螺丝 m2压铆螺母(2_1mm) m2.5内六角螺丝 (16mm)
