Page 2: Important Safety Instructions

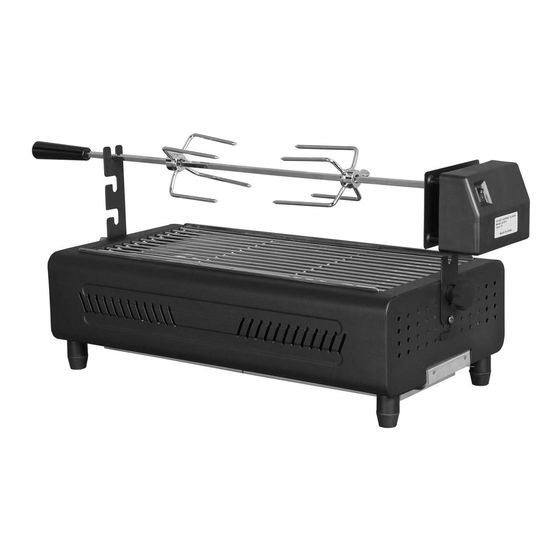

Jumbuck HS-CB007 (0256536) Portable Charcoal Spit Roaster IMPORTANT SAFETY INSTRUCTIONS • For outdoor use only. • Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation instructions thoroughly before installing this equipment. •... - Page 3 Cleaning Lighting the Charcoal BBQ • • once finished cooking, remove left over solid solid fuel is to be used for this product (fire fuel from the BBQ wood, charcoal etc.) • • always ensure BBQ is clean and free from oil place solid fuel onto the charcoal grid and or grease (internally and externally) to light using fire starters...
-
Page 4: Exploded View
EXPLODED VIEW PARTS CODE Parts Number Parts Name Parts Code Motor HS-CB007-01 (requires 2 x D size battery to operate, batteries not included) Rotisserie spike HS-CB007-02 Rotisserie arm HS-CB007-03 Weight HS-CB007-04 Handle HS-CB007-05 Rotisserie pole HS-CB007-06 Cooking grill HS-CB007-07 Charcoal grill... -
Page 5: Carton Contents
CARTON CONTENTS Reference# Description Part# Illustration Quantity Motor HS-CB007-01 Rotisserie spike HS-CB007-02 Rotisserie arm HS-CB007-03 Weight HS-CB007-04 Handle HS-CB007-05 Rotisserie pole HS-CB007-06 Cooking grill HS-CB007-07 Charcoal grill HS-CB007-08 Charcoal plate HS-CB007-09 Motor support HS-CB007-10 Motor support HS-CB007-11 bolt Ash tray... -
Page 6: Hardware Pack Contents
HARDWARE PACK CONTENTS Reference# Description Illustration Quantity Bolt M6x 35mm Bolt M6x 15mm ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS • Remove all contents from packaging, and make sure all the parts are present before attempting to assemble! • Tighten all bolt connections by hand first. •... - Page 7 STEP 2 Install the Charcoal plate (part 9) onto the BBQ body (part 13) as per illustration below. STEP 3 Place the Ash tray (part 12) into the assembled BBQ as per illustration below. STEP 4 Place the Cooking grill (part 7) and Charcoal grill (part 8) into the assembled BBQ as per illustration below.
- Page 8 STEP 5 Install the Motor support (part 10) onto the assembled BBQ as per illustration below. STEP 6 Assemble the Rotisserie spike (part 2), Rotisserie arm(part 3), Weight(part 4), Handle(part 5) and Rotisserie pole(part 6) together as per illustration below. STEP 7 Place the Motor (part 1) and the assembled rotisserie rod onto the assembled BBQ as per illustration below.
- Page 9 Fully Assembled Your BBQ is now ready for use. Please take care when lighting your BBQ. Always keep children away from this BBQ at all times...
-
Page 10: Warranty
Bunnings NZ Limited the operating manual. PO Box 14436, • Any repair does not extend the warranty period. Panmure, Auckland, 1471 • Any parts other than original Jumbuck parts will NEW ZEALAND (09) 978 2200 void this warranty. marketing@bunnings.co.nz Proof of purchase must be presented. - Page 11 WARRANTY For New Zealand Customer For Australian Customers Any claim under this warranty must be made Any claim under this warranty must be made within 12 months of the date of purchase of the within 12 months of the date of purchase of the product.
- Page 12 For Australia customers if you experience any • Liability will only be accepted for loss or damage technical issues with your JUMBUCK BBQ, in the during transit if at the time the product was being first instance review the instructions manual or...
