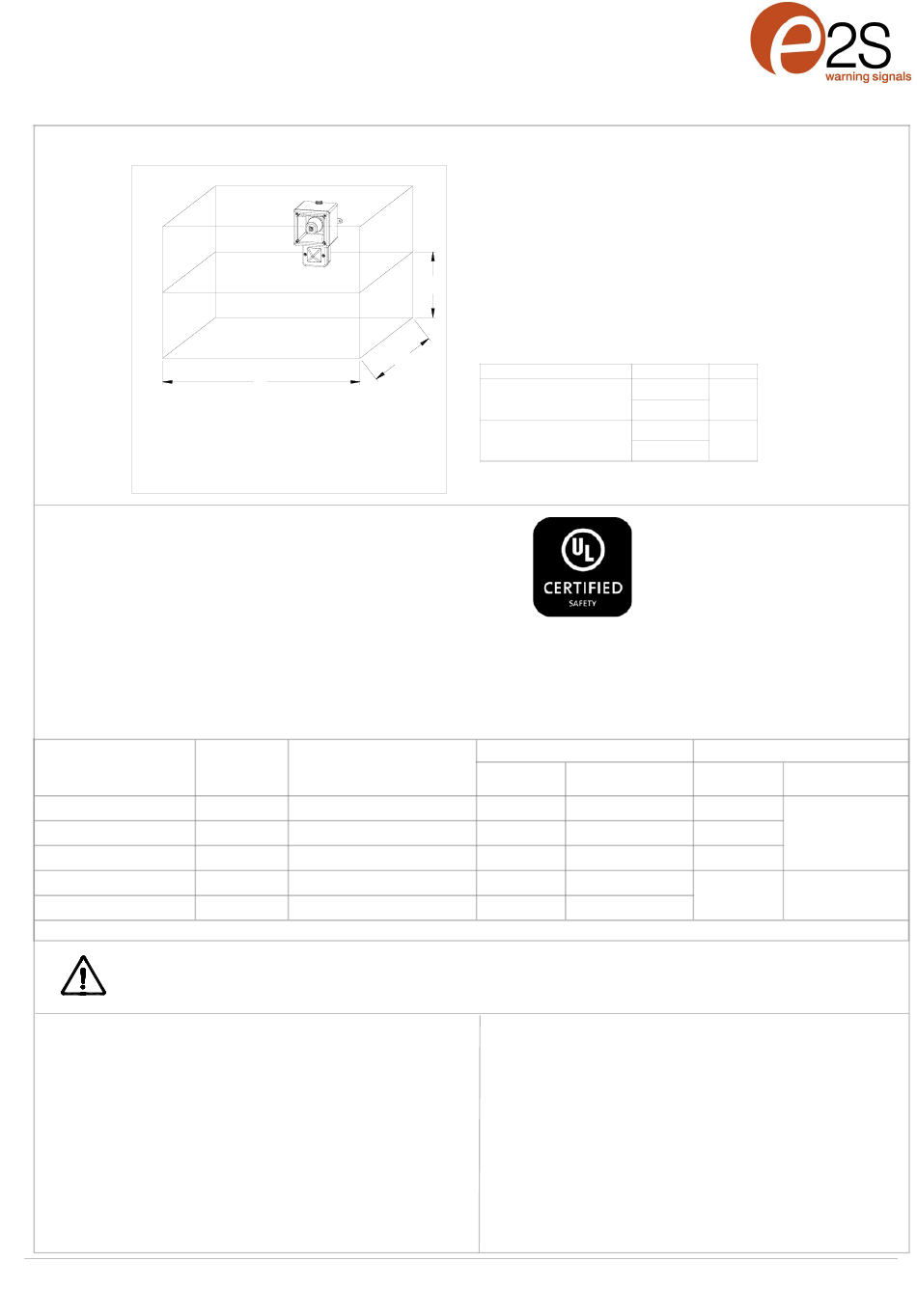

INSTRUCTION & SERVICE MANUAL
AL112NX AlertAlight Combined Sounder Xenon
Category W-x-y (Wall mounted):
Wall mounted, where x is the maximum
mounting height from the floor and y is the
maximum length of the sides of the square
floor area covered by the VAD.
• All models are approved for use as Audible Signal Appliance
for use as General Signaling: UL464A & CSA C22.2 No 205-17
• Type 4 / 4X / 3R / 13, IP66
• -40°C to +66°C / -40°C to +151°F
General Signaling Canada:
AL112NXDC024: -40°C to +55°C / -40°F to +131°F
AL112NXAC230: -40°C to +40°C / -40°F to +104°F
• To maintain Ingress Protection, cable entries must be fitted with suitably rated cable glands or stopping plugs
• Mounting - Units can be mounted using 2-off ø9mm holes in the mounting lugs or through the back of the housing using the
gasket.
• EOL Monitoring (DC Only): End of Line Devices may be fitted between the +ve & -ve terminals of the PCBA. Please ensure that the device
legs meet the wire size range stated for the connection terminals and are fitted correctly in order to avoid a short. Refer to the compatible
control panel specification for EOL device values and ratings.
Model
AL112NXDC012
AL112NXDC024
AL112NXDC048
AL112NXAC115
AL112NXAC230
*Nominal Voltage, 1Hz Flash Pattern & Tone 12
Attention: Installation must be carried out by an electrician in compliance with the National Electrical Code, NFPA 70 or CSA 22.1 Canadian Electrical
Code, Part I, Safety Standard for Electrical Installations, Section 32. / L'installation doit exclusivement être réalisée par du personnel qualifié, conformé
ment au code national d'électricité américain, NFPA 70 ou CSA 22.1 Code canadien de l'électricité, première partie, norme de sécurité relative aux
installations électriques, Section 32
The units have been tested and approved to DNVGL-CG-0339 & EN54-3:2014
incl. A1:2019 for the installation on ships in the following locations:
Temperature: A, B, C & D (Machinery spaces, control rooms,
accommodation, bridge, inside cubicles,
desks, etc..., pump rooms, holds, rooms with no
heating, Open deck, masts)
Humidity: A & B (All locations)
Vibration: A (Bulkheads, Beams, Deck, Bridge)
EMC: A & B (All locations Including Bridge & open deck)
Enclosure: A, B & C (Control rooms, accommodation, bridge,
engine room, open deck masts, below floor plates in
engine room)
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
AL112NXDC024 & AL112NXDC048 LIGHT OUTPUT
y
Nominal
Voltage Range
Voltage
12V dc 11.5-14Vdc
24V dc 20-28Vdc
48V dc 42-52Vdc
115 Vac 103.5-126.5 Vac 50/60Hz
230 Vac 207-240 Vac 50/60Hz
#
Worst-case input voltage and worst case flash pattern
Note: CPR aproved units must be
positioned sounder on top,
beacon below.
x
Coverage Area According to EN54-23
(Only units in the following
table are VdS Approved)
y
Unit
AL112NXDC024
AL112NXDC048
Approved Beacon for EN54-23 Applications:
Clear lenses are compliant with EN54-23
Nominal Operating Current*
Beacon
341mA
250mA
170mA
70mA
35mA
The units comply with Solas 74 Chapter II-2, Regulation 7 & Chapter X,
Regulation 3 for installation on ships in the following locations:
Temperature:
Vibration:
EMC:
Enclosure:
sales@e2s.com e2s.com
Category W Power
W-2.4-4.8
11W
V=55.3m ³
W-2.5-5
14W
V=62.5m ³
Max Operating RMS
Sounder
Beacon
P1 / P2
280mA / 376mA 531mA
225mA / 430mA 271mA
122mA / 223mA 170mA
100mA / 173mA
58mA
65mA / 105mA
D (Location -25° to +70°C)
A (General Applications)
B (Bridge & Open Deck Zone)
IP56, Salt mist
D221-00-201-IS Issue 3 30/06/2022
supplied
#
Sounder
P1 / P2
280mA / 430mA
181mA / 383mA
