E2S BExDCTS110-05D Instruction Manual

1) Introduction

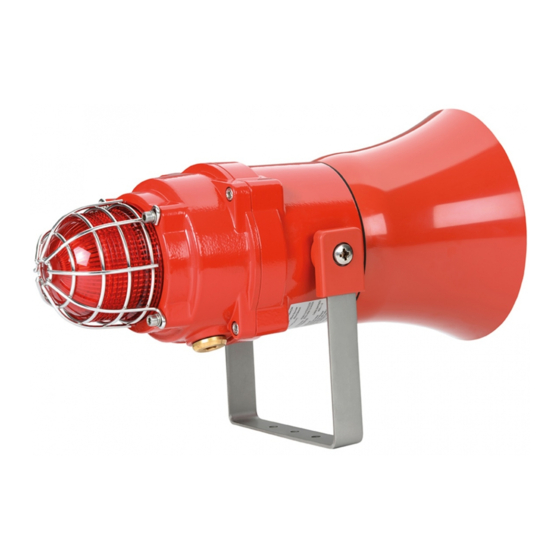

The BExDCTS110-05D is a flameproof combined electronic
Sounder / Beacon with Call Relay which is certified to meet
the requirements of the ATEX directive 94/9/EC and the
IECEx Scheme. The combined Sounder / Beacon produces a
loud audible signal and a visual signal, when triggered by a
telephone ringing signal and can be used in hazardous areas
where potentially flammable gas and dust atmospheres may
be present. Thirty-two different sounds can be selected by
internal switches, (see tone table on Page 5). The electronic
sounder produces output levels in the 110dB(A) range and
the beacon produces an output level of 5 joules. The unit can
be used in Zone 1 and Zone 2 areas with gases in groups IIA
and IIB and with Temperature Classifications of T1, T2, T3,
and T4 and can also be used in Zone 21 and Zone 22 areas
for combustible dusts and have an IP rating of IP 67 and a
surface temperature rating of T115ºC (T100ºC at +55ºC).
2) Marking
All units have a rating label, which carries the following
important information:
BExDCTS110-05D
Unit Type No.
Input Voltage: DC Units
AC Units
Codes: Ex d IIB T4 for Ta –50°C to +70ºC
Ex tD A21 IP6X T115°C based on max Ta of +70°C
KEMA 01ATEX2223X
Certificate No.
IECEx KEM 10.0025X
Epsilon x:
Equipment Group and
Category:
CE Marking:
Notified Body No.
"Warnings"
DO NOT OPEN WHEN AN EXPLOSIVE
GAS OR DUST ATMOSPHERE IS PRESENT
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND
CABLEGLANDS (Rated 110ºC) AT
AMB. TEMPERATURES OVER 40ºC
Year of Construction /
Serial No.
3)
Type Approval Standards
The units have an EC Type examination certificate issued by
DEKRA and have been approved to the following standards:
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS 2446-76-P
INSTRUCTION MANUAL (ATEX / IECEx)
Electronic Sounder / Beacon with Call Relay
For use in Flammable Gas and Dust Atmospheres
12V or 24V or 48V
230V or 115V
II 2G/D
0518
i.e. 10 / 1DCTS21000001
Issue 1 24/04/13
BExDCTS110-05D
EN60079-0:2006 IEC60079-0:2004 (Ed4)
EN60079-1:2007 IEC60079-1:2007 (Ed6)
EN61241-0:2006 IEC61241-0:2004 (Ed1)
EN61241-1:2004 IEC60079-1:2004 (Ed1)
4)
Installation Requirements
The unit must be installed in accordance with the latest
issues of the relevant parts of the EN 60079 specifications or
the equivalent IEC specifications – Selection, Installation and
maintenance of electrical apparatus for use in potentially
explosive atmospheres (other than mining applications or
explosive processing and manufacture):-
EN60079-14:2008
IEC60079-14:2007 (Ed4)
EN60079-10:2003
IEC60079-10:2008 (Ed1)
The installation of the unit must also be in accordance with
any local codes that may apply and should only be carried
out by a competent electrical engineer who has the
necessary training.
5)
Zones, Gas Group, Category, IP Rating and
Temperature Classification
The BExDCTS110-05D unit has been certified Ex d IIB T4 for
Ta –50°C to +70ºC for gas and Ex tD A21 IP6X T115ºC
based on max. Ta of +70ºC for dust. This means that the
units can be installed in locations with the following
conditions:-
Area Classification Gas:
Zone 1 Explosive gas air mixture likely to occur in
normal operation.
Zone 2 Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Gas Groupings:
Group IIA
Group IIB
Temperature Classification:
T1
T2
T3
T4
sales@e-2-s.com
www.e-2-s.com
Sheet 1 of 6 Mod No: ACN0012
General Requirements
Flameproof Enclosure 'd'
Dust General
Requirements
Dust Enclosures tD
Electrical Installations in Hazardous
Areas (other than mines)
Classification of Hazardous Areas
Propane
Ethylene
o
400 C
o
300 C
o
200 C
o
135 C
