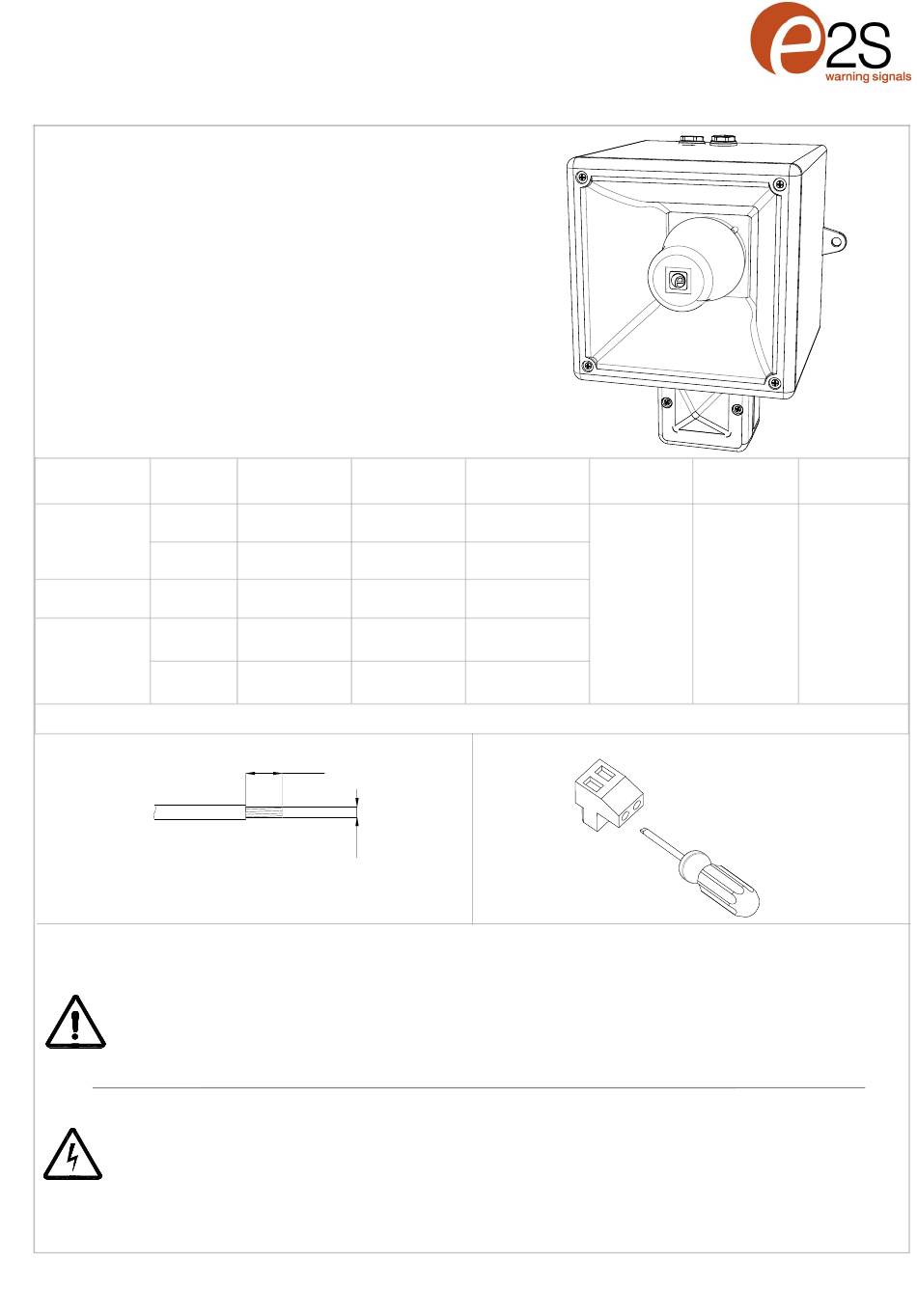

INSTRUCTION & SERVICE MANUAL

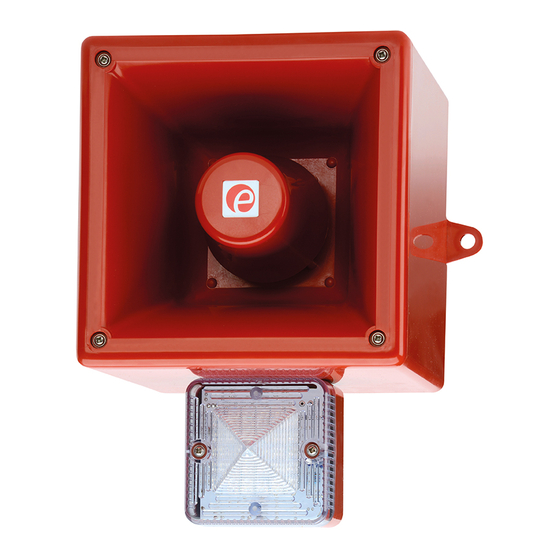

AL121H AlertAlight Combined Sounder LED
• -40°C to +66°C (104°F to 151°F)
• Type 4 / 4X / 3R / 13, IP66
• 2.7Kg (5.94lb)
• CE, All units UL Listed
Nominal
Unit Type Code
Voltage
12 Vdc
AL121XDC024
24 Vdc
AL121XDC048
48 Vdc
115 Vac
AL121XAC230
230 Vac
*Nominal current at nominal voltage
AC: 1.0 – 2.5mm
DC: 0.2 – 2.5mm
Attention
: Installation must be carried out by an electrician in compliance with the latest codes and regulations.
Attention
: L'installation doit être effectuée par un électricien conformément aux derniers codes et réglementations.
Achtung
: Die Installation muss von einem Elektriker gemäß den neuesten Vorschriften und Bestimmungen durchgeführt werden.
Attenzione
: L'installazione deve essere eseguita da un elettricista in conformità con i codici e le normative più recenti.
Atención
: La instalación debe ser realizada por un electricista de acuerdo con los últimos códigos y regulaciones.
Atenção:
A instalação deve ser realizada por um eletricista de acordo com os códigos e regulamentos mais recentes.
Внимание
: установка должна выполняться электриком в соответствии с последними нормами и правилами.
Attention
: Disconnect from power source before installation or service to prevent electric shock
Attention
: Débranchez-le de la source d'alimentation avant l'installation ou l'entretien pour éviter tout choc électrique.
Achtung
: Vor Installation oder Wartung von der Stromquelle trennen, um einen Stromschlag zu vermeiden.
Attenzione
: scollegare dall'alimentazione prima dell'installazione o dell'assistenza per evitare scosse elettriche.
Atención
: desconéctelo de la fuente de alimentación antes de la instalación o el servicio para evitar descargas eléctricas.
Atenção:
Desconecte da fonte de alimentação antes da instalação ou serviço para evitar choque elétrico
Внимание
: отключите от источника питания перед установкой или обслуживанием, чтобы предотвратить поражение электрическим током.
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
Nominal Beacon
Voltage Range
Current*
11.5-14Vdc
79.5mA
16-33 Vdc
87mA
48-54 Vdc
60mA
100-240 Vac
34mA
50/60Hz
100-240 Vac
19mA
50/60Hz
5mm
2
/ AWG18 – AWG12
0.5 2.5mm
2
/ AWG24 – AWG12
Nominal Sounder
Nominal SPL
Current*
P2 / P3
376mA / 440mA
430mA / 930mA
116.9dB(A) /
120.2dB(A)
223mA / 453mA
Tone 44 @
173mA / 340mA
105mA / 212mA
sales@e2s.com
e2s.com
Max SPL
P1 / P2
P1 / P2
120.7dB(A) /
123.4dB(A)
Tone 4 @ 1m
1m
0.4Nm
D221-00-351-IS Issue 1 10/05/2021
Average SPL
P1 / P2
115.3dB(A) /
118.1dB(A)
All Tones @
1m
