8. Setting the Circulation of Timer Switch
After setting the time of timer switch, continue to press the
,week display area will displays the day of
be "LooP", then press
the week, or the transformation of "12345" "123456",or "1234567".
If the screen only displays the day of the week, then the timer switch setting
is valid only for the day.(= "Execute once" in App interface)
If it displays "12345",then the timer switch is valid from Monday ~ Friday,
and Saturday and Sunday will be invalid.
If it displays "123456",then the timer switch is valid from Monday ~Saturday,
and Sunday will be invalid.
If it displays "1234567",then the timer switch is valid from Monday ~ Sunday.
9.Advanced Setting Mode
Temperature Adjustment
(Attn: Only when your room temperature is different with actual temperature, you do this operation.)
In power-on status, press about 7 seconds, then "XX X" will display
on the bottom of the screen. For Example: "26 5" means temp is 26.5℃
then you can press to modify the temperature.
It will confirm automatically after correct temp twinkling 7 seconds.
Fan Coil Controlling Mode Setting(Only for 2 pipe)
(You can select the fan coil In control & Out of control.)
In power-on status, press about 7 seconds, "XX X" will display on the bottom
of the screen, then continue to press
Press to choose "F00" or "F01"
In "F00" mode, when room temperature reaches to the setted temp, the fan coil stops working.
In "F01" mode, when room temperature reaches to the setted temp, the fan coil goes on working.

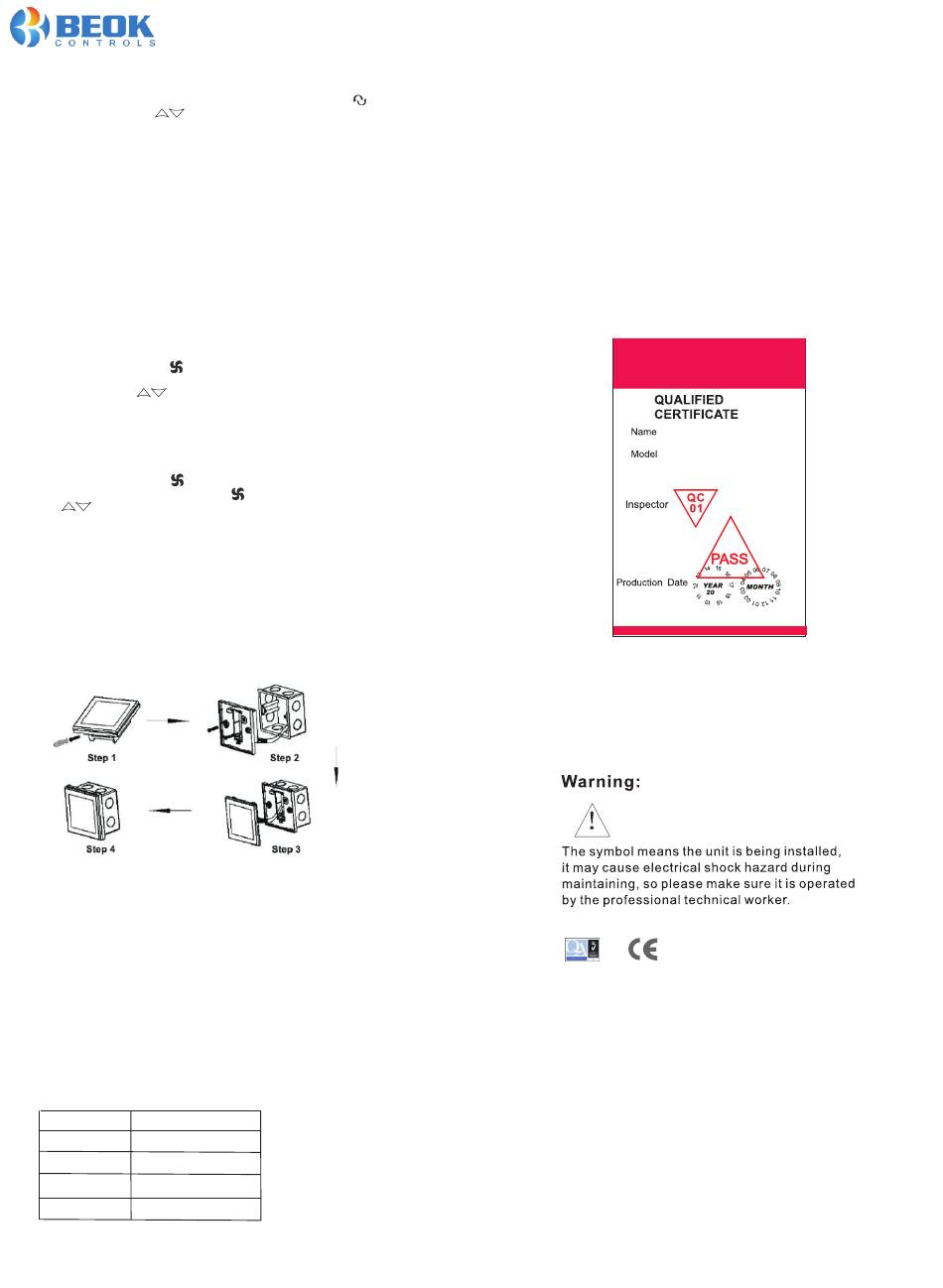

IX. Installation Instruction
1.Connect the line of power and valve into the terminals. Fix the wall plate into
the wall box by a screwdriver.
This product is suitable for standard 80*80mm wall box.
2.Connect the lines with the LCD board.
3.Connect the LCD board into the wall plate.
NOTICE: The installation wire should be 1.5-2.5mm .
X. ATT:
Thank you for buying this product!
Please read this manual for complete instructions on installing and
operating your thermostat. If you require further assistance, please
feel free to contact us.
In the box you will find:
Model TDS21-AC
√
Thermostat
√
User Manual
√
Screws
Dryer
,there will
again, "F00" or "F01" will display.
2
Our Service:
We offer the warranty of 24 months from the sales day.
During the warranty, if it is belong to the quality issue, we will fix or
replace them for you by free after test them.
If it is not quality problem or beyond the warranty time, we will
charge for the after-sales service.
BEOK
Touch Screen Thermostat
TDS21-AC
